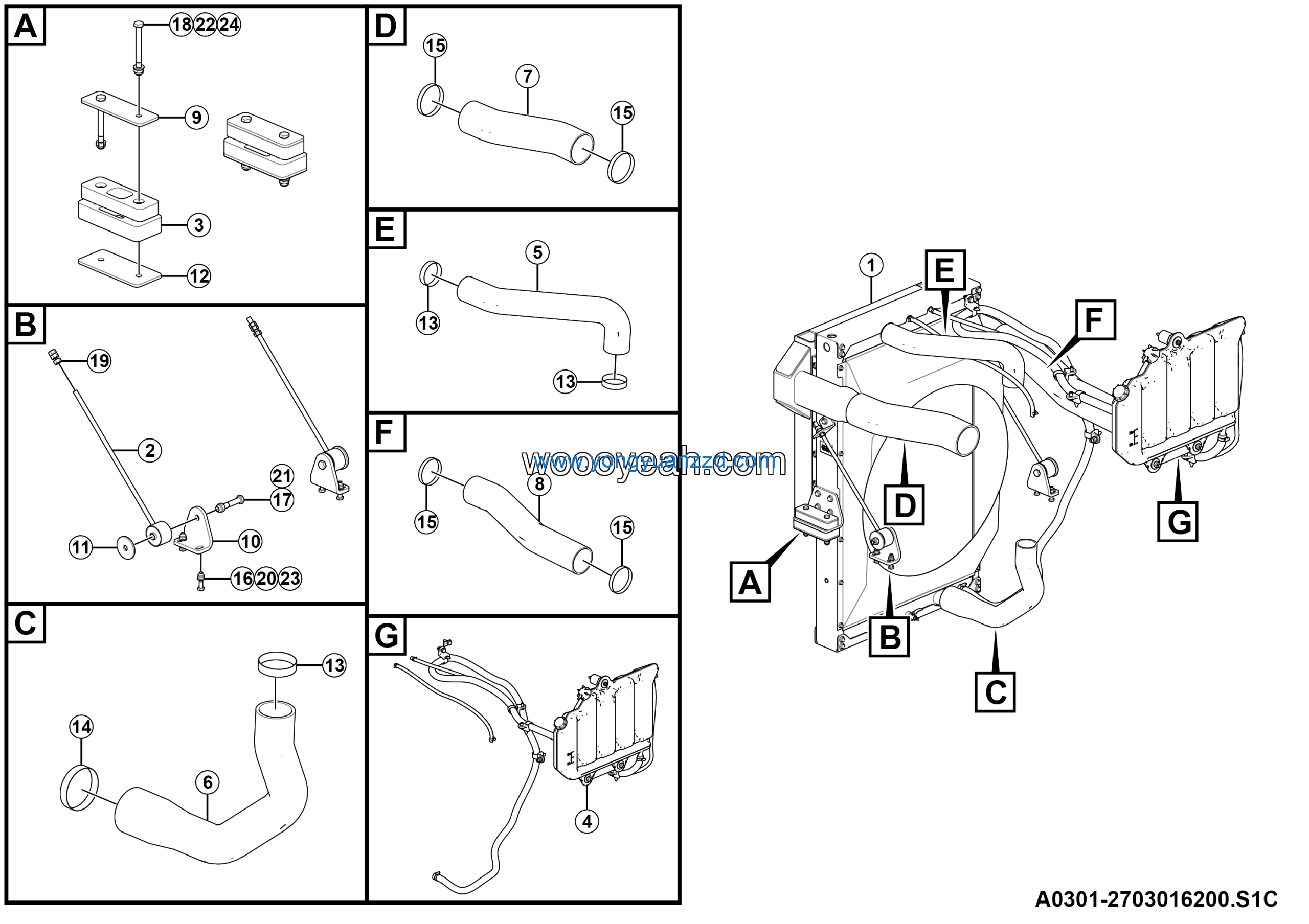

LGMG Off-Highway Dump Truck 2024 – Radiator assy – A0301-2703016200.S1C
Category: 2024 > Off-Highway Dump Truck > MT50 > M0500Y3E0M104
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Support | 27030109692 | 2 |
| 2 | Plate | 27030109731 | 2 |
| 3 | Hold-down plate 160*70*5 | 27030162011 | 2 |
| 4 | Butterfly spring clamp φ57-φ79 | 4190708163 | 3 |
| 5 | Butterfly spring clamp φ70-φ92 | 4190708164 | 1 |
| 6 | Butterfly spring clamp φ93-φ118 | 4190708166 | 4 |
| 7 | Bolt GB5782-M10*45EpZn-8.8 | 4011000451 | 4 |
| 8 | Bolt GB5782-M14*85EpZn-8.8 | 4011010630 | 2 |
| 9 | Bolt GB5782-M10*100flZnyc-12.9-480 | 4011011722 | 4 |
| 10 | Nut GB6170-M12EpZn-8 | 4013000011 | 6 |
| 11 | Radiator lg03-srq-012 | 4110708353 | 1 |
| 12 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 13 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 14 | Nut GB6185.1-M10flZnyc-12-480 | 4013010566 | 4 |
| 15 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 16 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 4 |
| 17 | Radiator bar | 4110001451 | 2 |
| 18 | Radiator shock absorber assy | 4110001445 | 2 |
| 19 | Expansion tank assy | 27030170291 | 1 |
| 20 | Engine water outlet hose 72*6 | 27030162041 | 1 |
| 21 | Engine water inlet hose 72*6 | 27030162051 | 1 |
| 22 | Intercooler air intake hose 112*6 | 27030172381 | 1 |
| 23 | Intercooler air outlet hose 112*6 | 27030162031 | 1 |
| 24 | Plate | 27030109021 | 2 |
