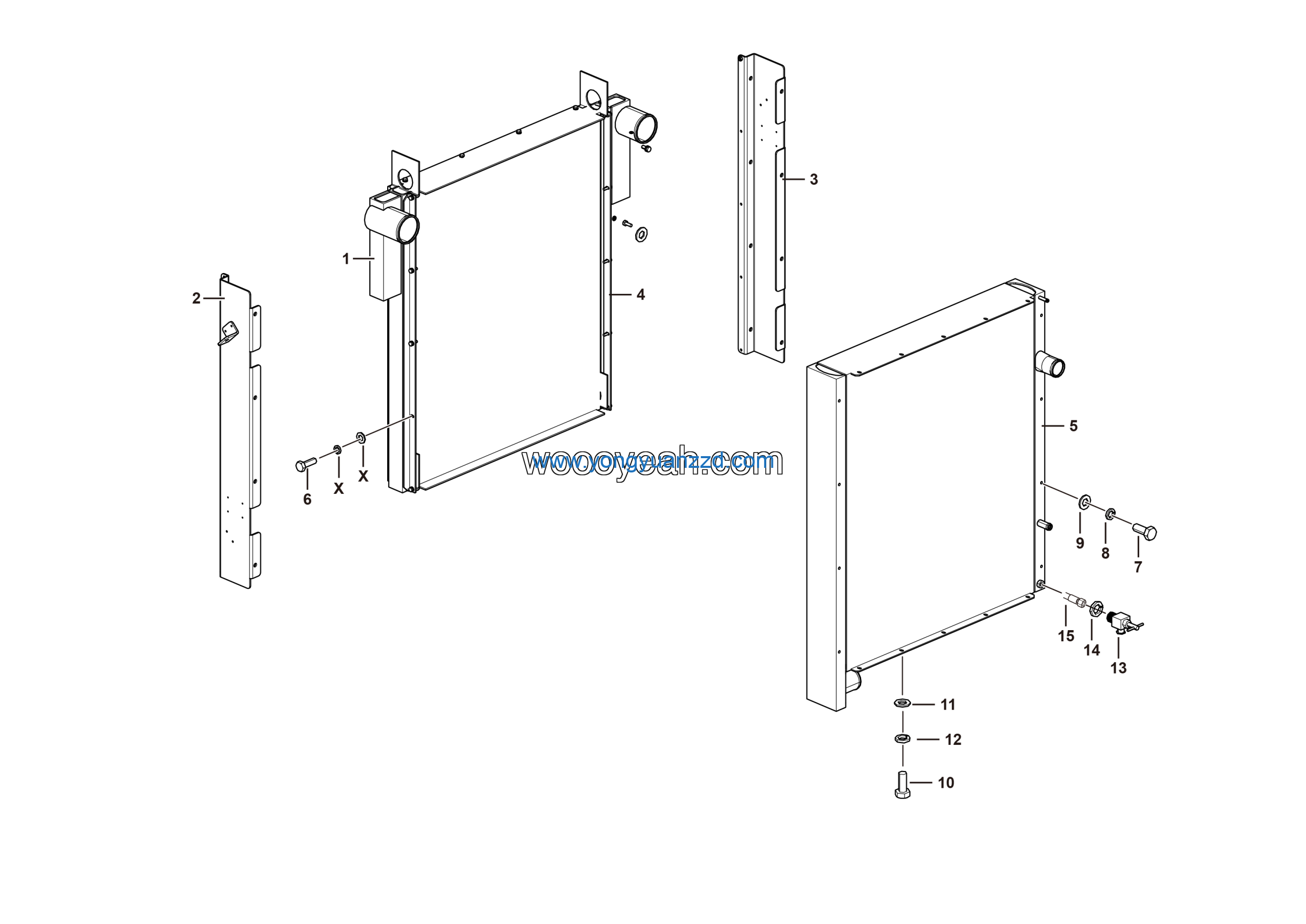

LGMG Off-Highway Dump Truck 2024 – Radiator assy – A0301-4110702625
Category: 2024 > Off-Highway Dump Truck > CMT96 > C0960WG23
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt 610201（M8*20） | 4110702625010 | 8 |
| 2 | Washer 630330 | 4110702625011 | 18 |
| 3 | Washer 632300 | 4110702625012 | 18 |
| 4 | Drain valve 739001 | 4110702625013 | 1 |
| 5 | Clamp 990002 | 4110702625014 | 1 |
| 6 | Drain hose 8000080250 | 4110702625015 | 1 |
| 7 | InterRadiator S9113984A | 4110702625001 | 1 |
| 8 | Left frame assy KB0992 | 4110702625002 | 1 |
| 9 | Right frame assy KB0993 | 4110702625003 | 1 |
| 10 | Water radiator S9113984B | 4110702625004 | 1 |
| 11 | Dustproof net WB0221 | 4110702625005 | 1 |
| 12 | Bolt 610202 | 4110702625006 | 10 |
| 13 | Bolt 610301 | 4110702625007 | 16 |
| 14 | Washer 632400 | 4110702625008 | 16 |
| 15 | Washer 630430 | 4110702625009 | 16 |
