LGMG Off-Highway Dump Truck 2024 – Rear leaf spring assy LG12-5N18B120H27 – G0700-4110707519
Category: 2024 > Off-Highway Dump Truck > CMT96H > C096HW3E0A002

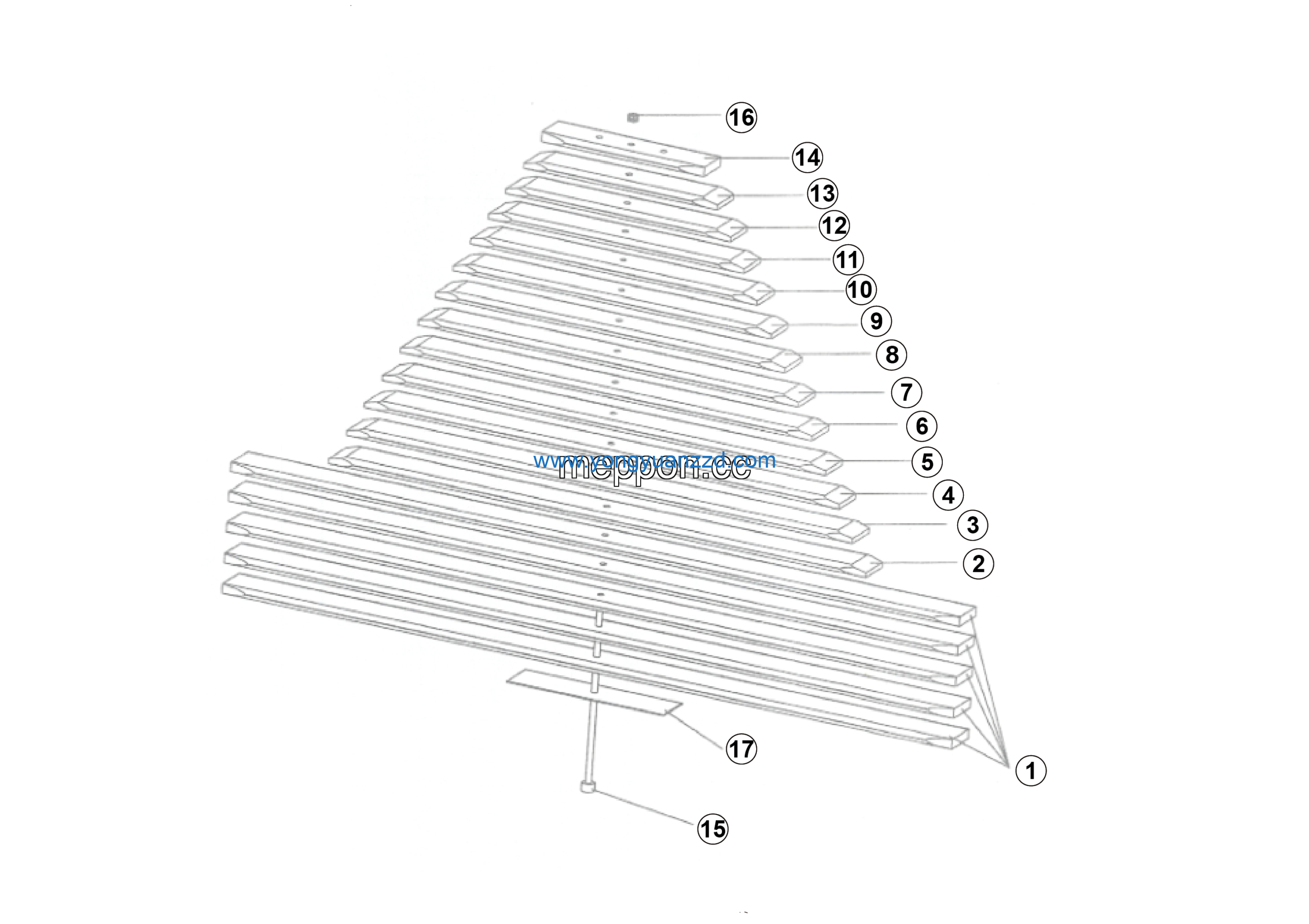

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Fourteenth rear leaf spring | 4110707519014 | 1 |
| 2 | Fifteenth plate of rear leaf spring | 4110707519015 | 1 |
| 3 | Sixteenth back leaf spring | 4110707519016 | 1 |
| 4 | Seventeenth leaf spring | 4110707519017 | 1 |
| 5 | Eighteenth back leaf spring | 4110707519018 | 1 |
| 6 | Bolt | 4110707338019 | 1 |
| 7 | Center nut M16*1.5 | 4110000730014 | 1 |
| 8 | RR leaf spring spacer 450*110*3 | 4110707338020 | 1 |
| 9 | Rear plate spring | 4110707519001 | 1 |
| 10 | Rear leaf spring sixth piece | 4110707519006 | 1 |
| 11 | Rear leaf spring seventh piece | 4110707519007 | 1 |
| 12 | Eighth back leaf spring | 4110707519008 | 1 |
| 13 | Ninth piece of rear leaf spring | 4110707519009 | 1 |
| 14 | Tenth rear leaf spring | 4110707519010 | 1 |
| 15 | Eleventh back leaf spring | 4110707519011 | 1 |
| 16 | Twelfth rear leaf spring | 4110707519012 | 1 |
| 17 | Thirteenth rear leaf spring | 4110707519013 | 1 |
