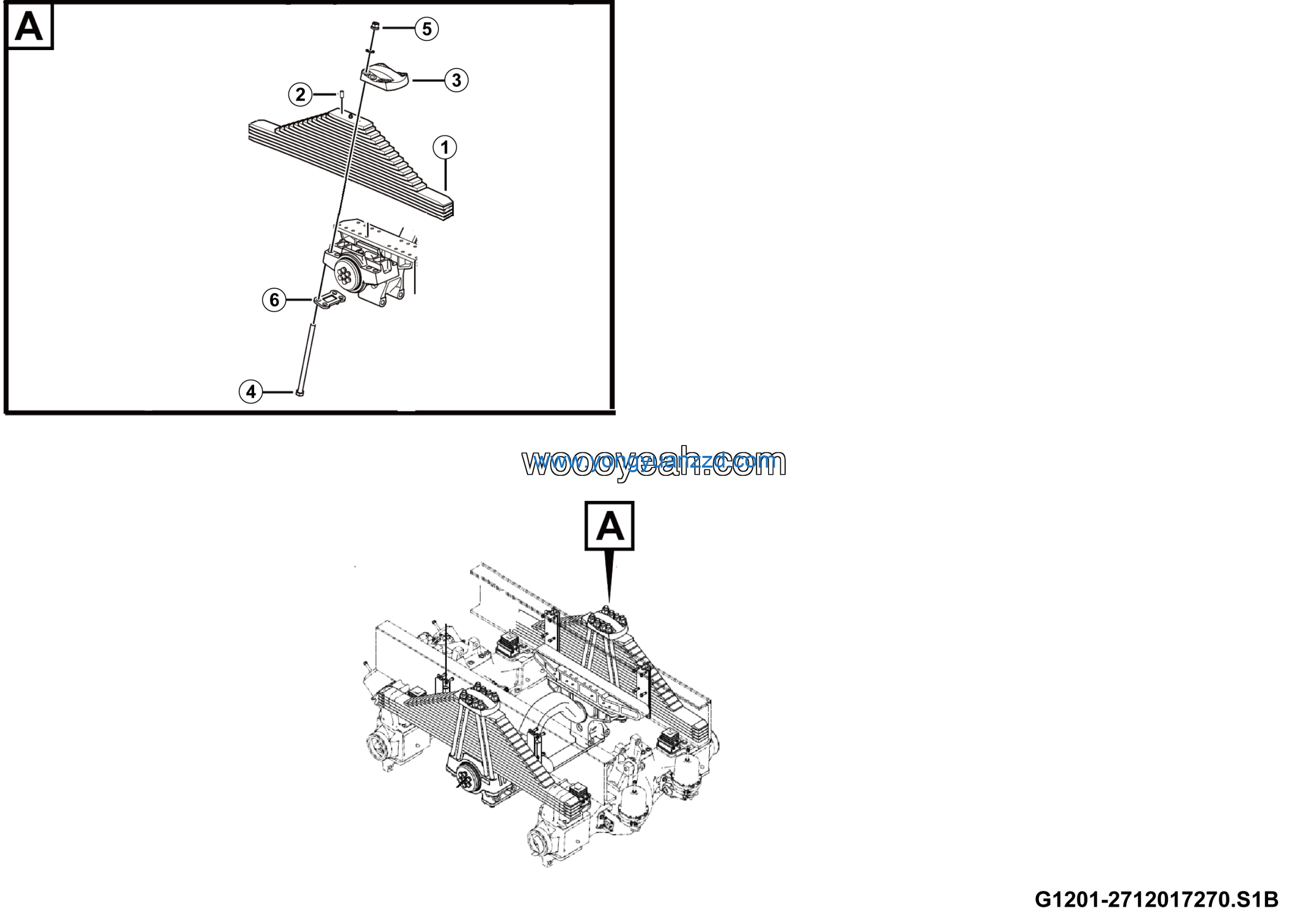

LGMG Off-Highway Dump Truck 2024 – Rear leaf spring installation – G1201-2712017270.S1B
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M372
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rear leaf spring assy LG12-5N18B120H27 | 4110707338 | 1 |
| 2 | Guide pin | 27120103821 | 2 |
| 3 | Spring pressing block | 27120115111 | 1 |
| 4 | Bolt | 27120116781 | 8 |
| 5 | Six angle with the shoulder self-locking nut | 27120103841 | 8 |
| 6 | Base plate | 27120116741 | 2 |
