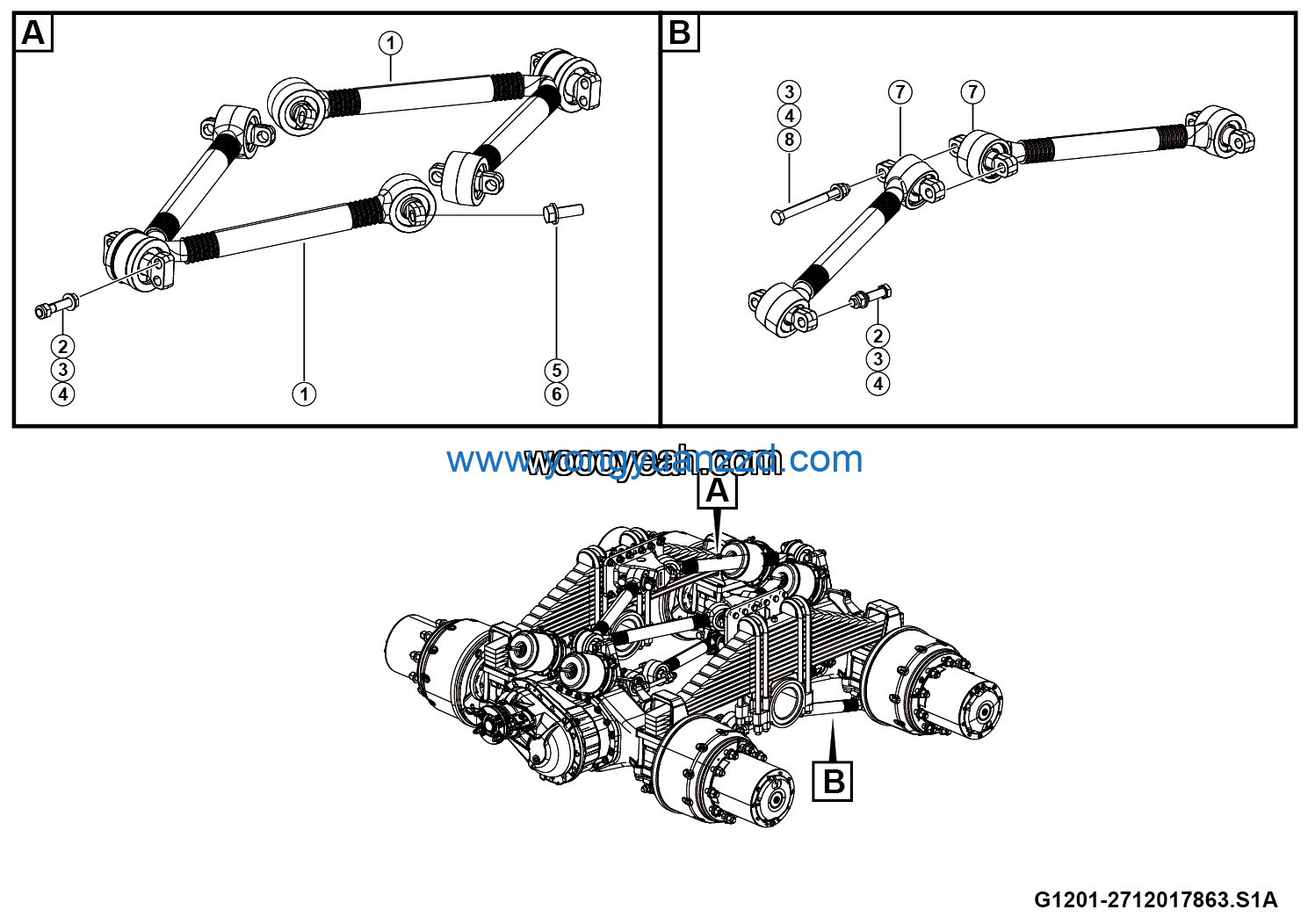

LGMG Off-Highway Dump Truck 2024 – Rear torque rod installation – G1201-2712017863.S1A
Category: 2024 > Off-Highway Dump Truck > MT50 > M0500Y3E0M104
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Upper V-type torque rod assy | 4110707248 | 2 |
| 2 | Bolt GB5782-M20*100flZnyc-12.9-480 | 4011010763 | 16 |
| 3 | Washer GB1230-20flzncy-45-480 | 4015010546 | 20 |
| 4 | Nut GB6185.1-M20flZnyc-12-480 | 4013010256 | 20 |
| 5 | Bolt GB5782-M24*70flZnyc-12.9-480 | 4011011674 | 8 |
| 6 | Washer GB1230-24EpZn-45 | 4015000003 | 8 |
| 7 | Lower thrust rod assy LG12-L598D54T8*152M20P | 4110707246 | 4 |
| 8 | Bolt GB5782-M20*220flZnyc-12.9-480 | 4011011499 | 4 |
