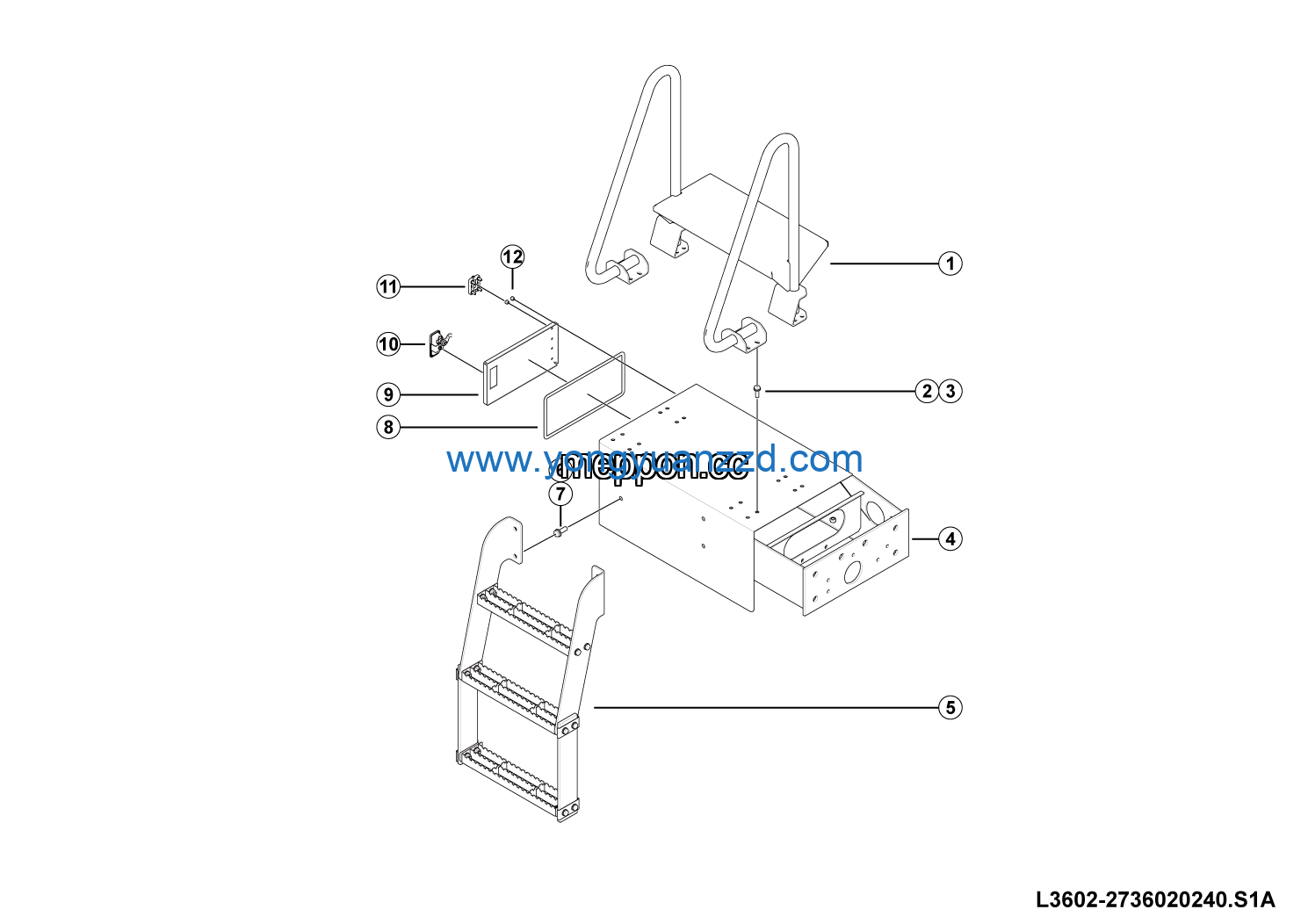

LGMG Off-Highway Dump Truck 2024 – Rh ladder assy – L3602-2736020240.S1A
Category: 2024 > Off-Highway Dump Truck > MTE106H > C106HE0A0A901
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Cabinet lock | 27360154881 | 1 |
| 2 | Hinge | 27360154891 | 2 |
| 3 | Nut GB889.1-M6EpZn-8 | 4013000211 | 8 |
| 4 | Ladder wldmt | 27360188231 | 1 |
| 5 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 16 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 16 |
| 7 | Rh ladders weldment | 27360178772 | 1 |
| 8 | Access ladder assembly | 27360165891 | 1 |
| 9 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 4 |
| 10 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 11 | Rubber strip 316*160*1.5 | 27360167141 | 1 |
| 12 | Lock frame 305*155*3 | 27360164131 | 1 |
