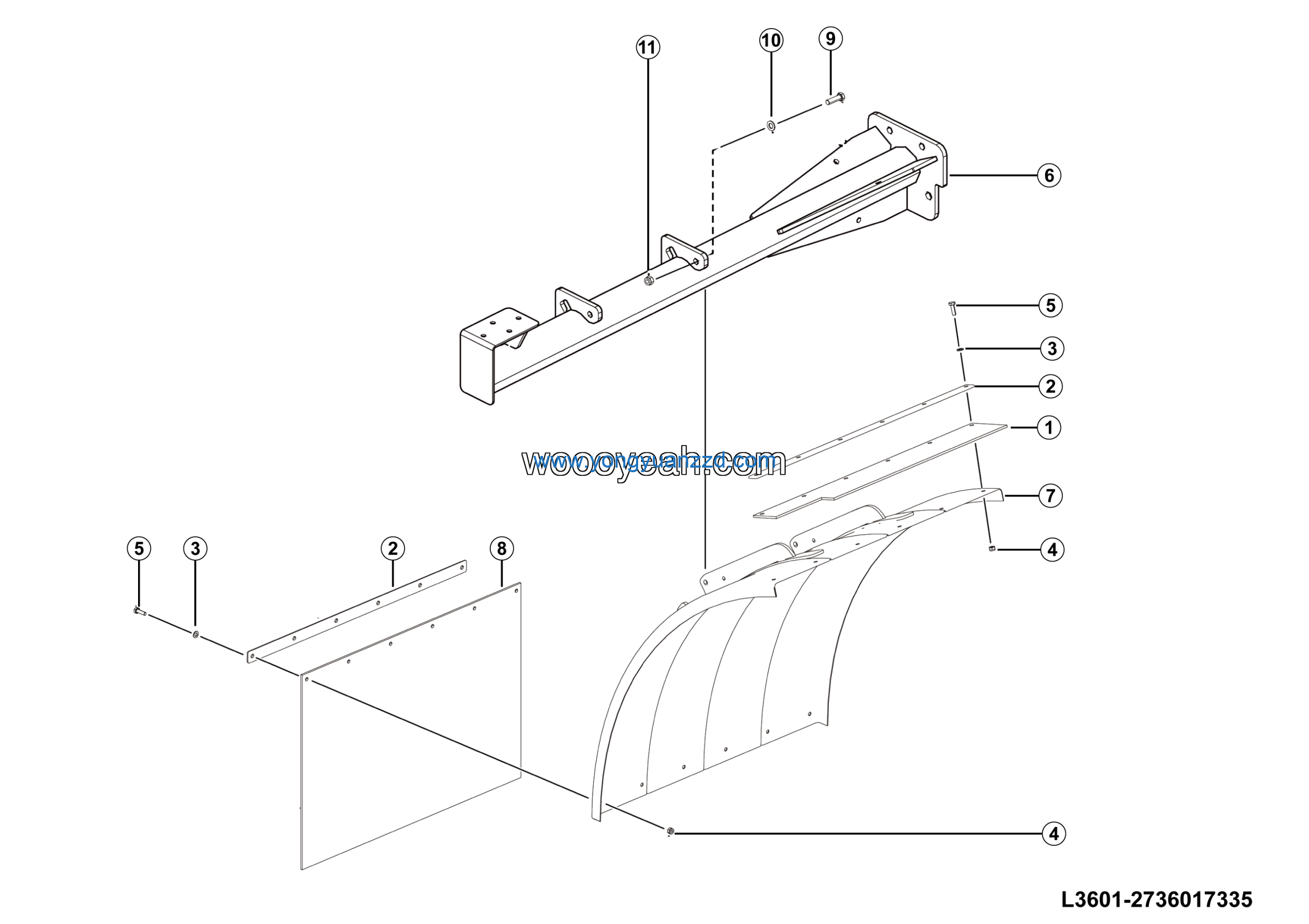

LGMG Off-Highway Dump Truck 2024 – Right fender assy – L3601-2736017335
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M375
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 2 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 4 |
| 3 | Rubber | 27360113521 | 1 |
| 4 | Hold-down plate | 27360112711 | 2 |
| 5 | Washer GB97.1-8EpZn-300HV | 4015000072 | 12 |
| 6 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 12 |
| 7 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 12 |
| 8 | Right bracket weldment | 27360168941 | 1 |
| 9 | Right mudguard | 27360131472 | 1 |
| 10 | Mudflap | 27360109252 | 1 |
| 11 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
