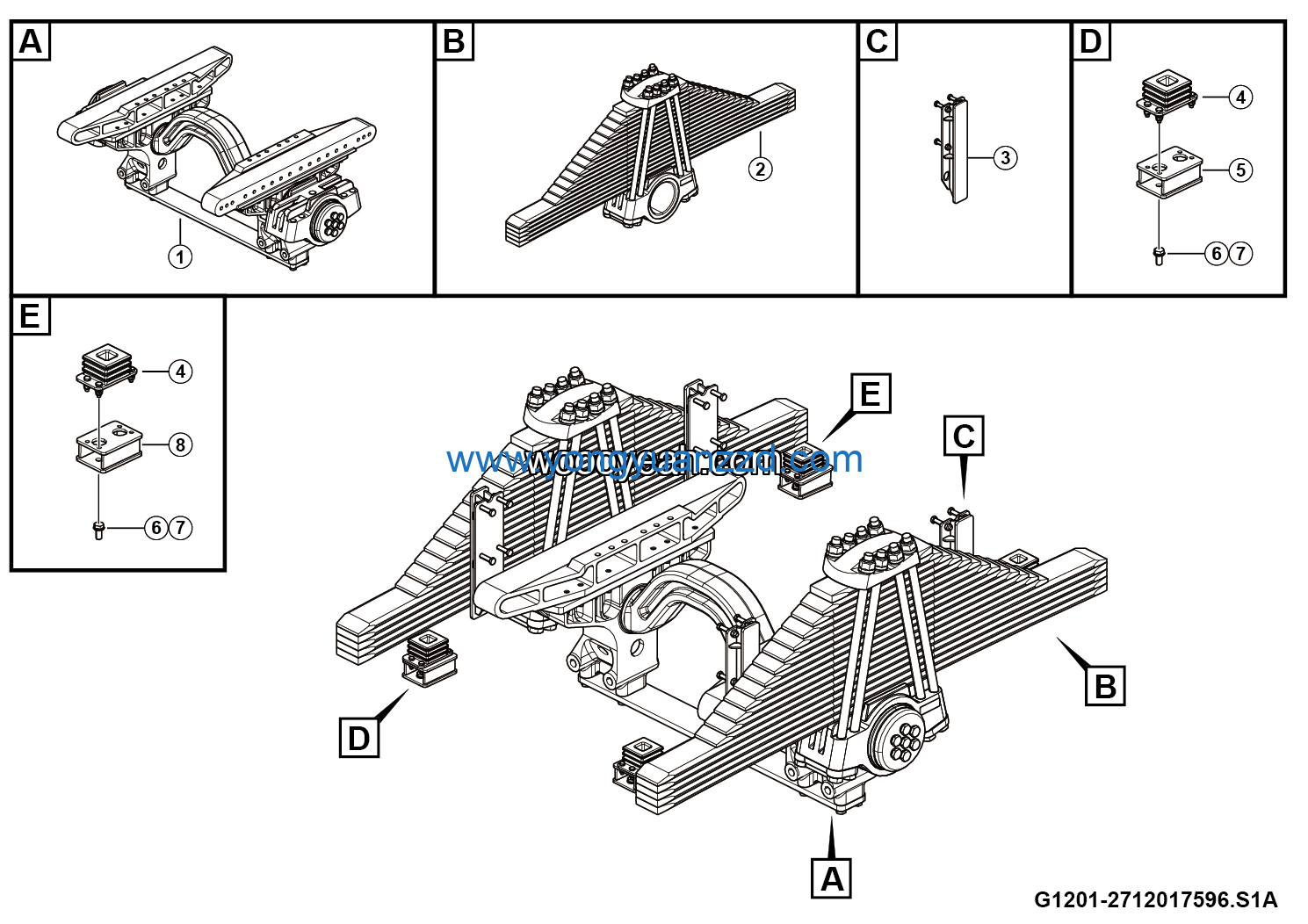

LGMG Off-Highway Dump Truck 2024 – RR leaf spring installation – G1201-2712017596.S1A
Category: 2024 > Off-Highway Dump Truck > MT116L > M116LW3A0M801
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | 1 | 27120172691 | 1 |
| 2 | Rr leaf spring installation | 27120176051 | 2 |
| 3 | Guide plate | 27120173701 | 4 |
| 4 | 1 | 27120174051 | 4 |
| 5 | Bearer of middle axle spacing block | 27120122951 | 2 |
| 6 | Bolt GB5786-M16*1.5*35EpZn-8.8 | 4011000351 | 8 |
| 7 | Washer GB97.1-16EpZn-300HV | 4015000181 | 8 |
| 8 | Bearer of rear axle spacing block | 27120122961 | 2 |
