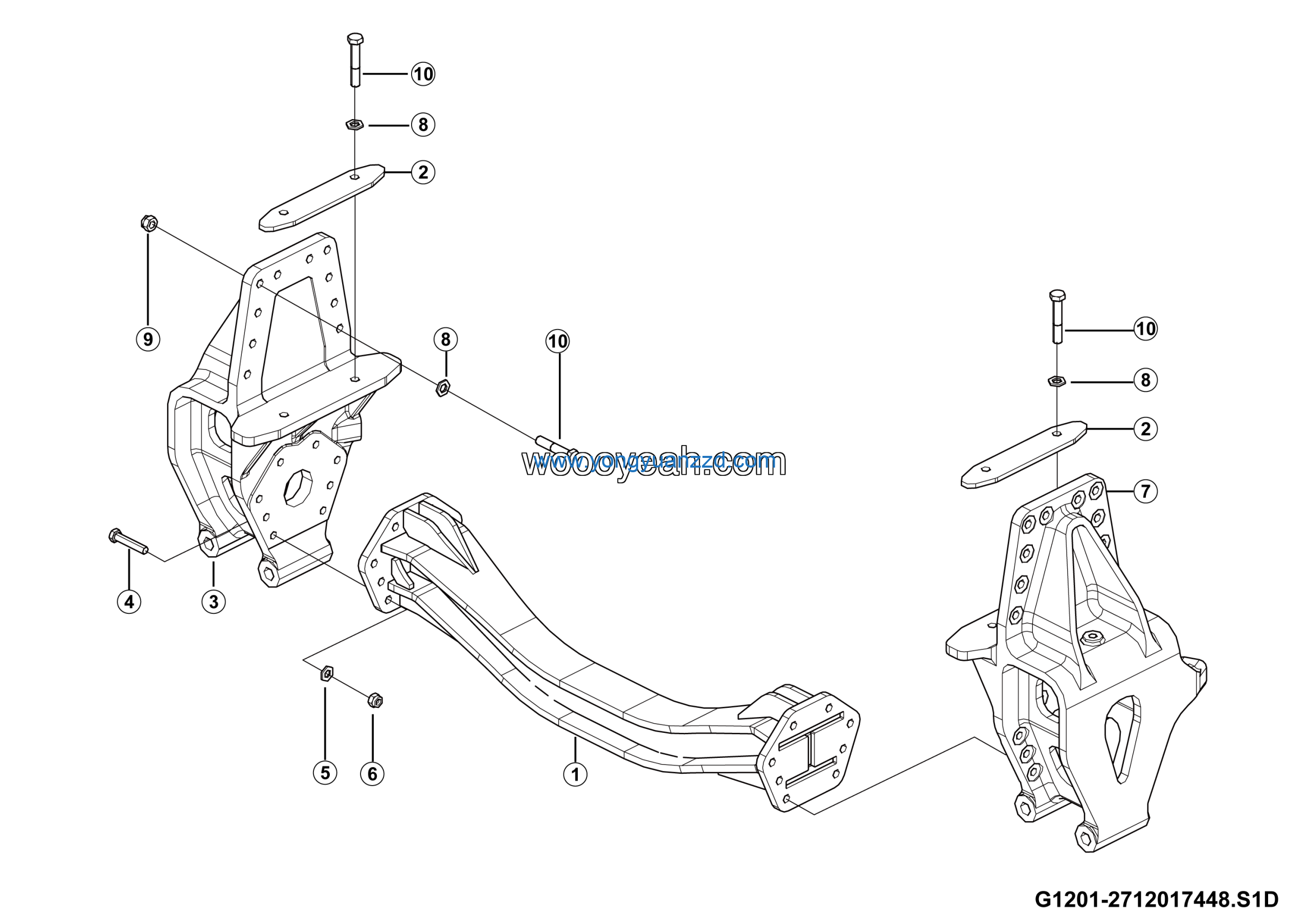

LGMG Off-Highway Dump Truck 2024 – Seat Assembly – G1201-2712017448.S1D
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M351
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5785-M18*1.5*100flZnyc-12.9-480 | 4011010485 | 4 |
| 2 | Crossbeam 1 | 27120181321 | 1 |
| 3 | Plate | 27120124352 | 2 |
| 4 | Front right thust rod support | 27120123531 | 1 |
| 5 | Bolt GB5782-M16*80flZnyc-12.9-480 | 4011010614 | 16 |
| 6 | Washer GB1230-16EpZn-45 | 4015000001 | 32 |
| 7 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 16 |
| 8 | Front left thust rod support | 27120123521 | 1 |
| 9 | Washer gb1230-18-45 | 27120105414 | 48 |
| 10 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 24 |
