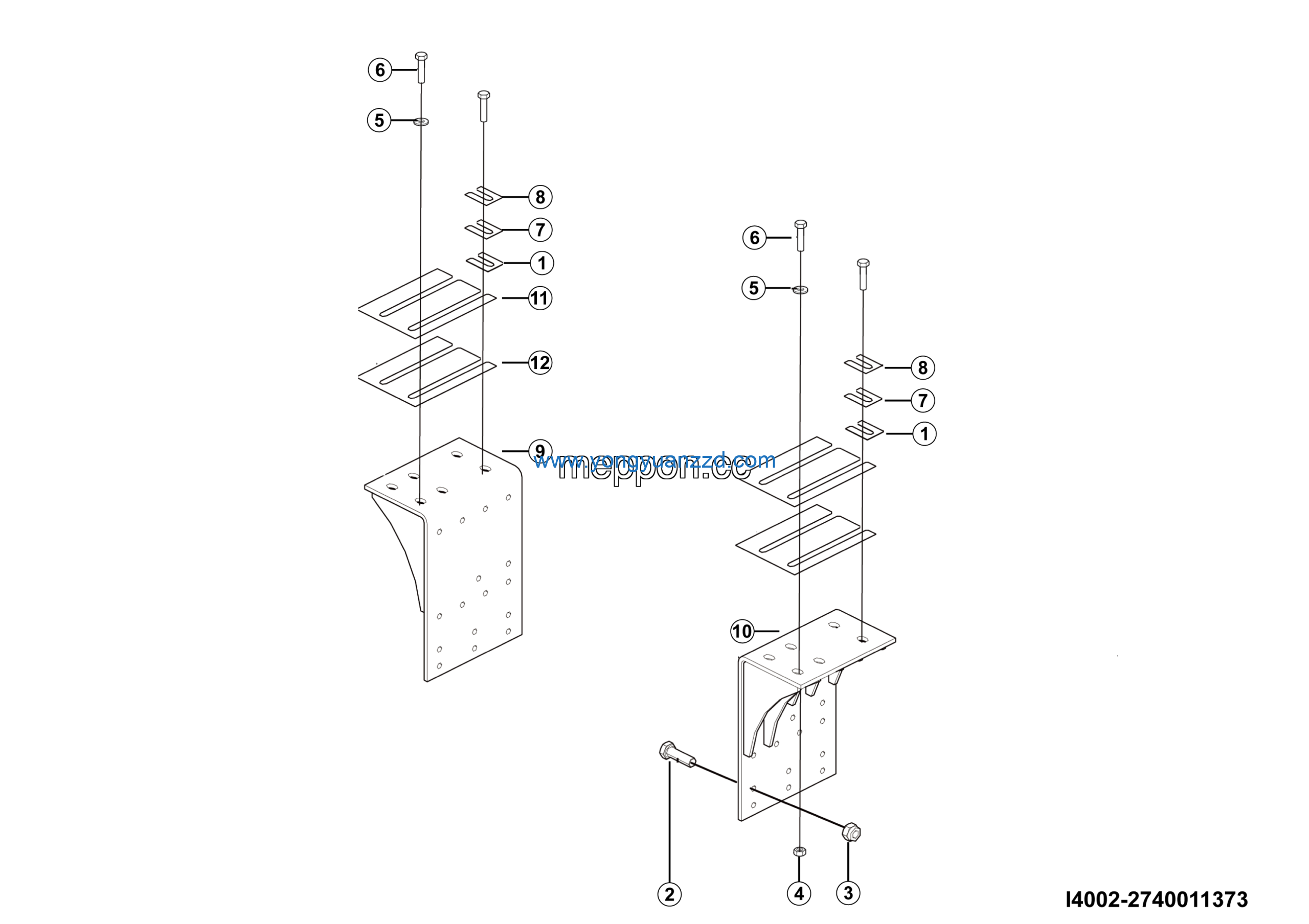

LGMG Off-Highway Dump Truck 2024 – Seat assembly – I4002-2740011373
Category: 2024 > Off-Highway Dump Truck > MT96L > M096LW3A0M313
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Support seat weldment | 27400113761 | 1 |
| 2 | Shim | 27400113781 | 1 |
| 3 | Shim | 27400113791 | 1 |
| 4 | Plate | 27170117521 | 2 |
| 5 | Bolt GB5785-M16*1.5*80flZnyc-12.9-480 | 4011010592 | 20 |
| 6 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 20 |
| 7 | Nut GB6177.2-RLM20*1.5EpZn-10 | 4013010547 | 12 |
| 8 | Washer GB97.1-16EpZn-300HV | 4015000181 | 40 |
| 9 | Bolt 5783-M20*1.5*40flZnyc-12.9-480 | 4011011452 | 12 |
| 10 | Plate | 27170117511 | 2 |
| 11 | Adjusting shim | 27170117261 | 2 |
| 12 | Support seat weldment | 27400113741 | 1 |
