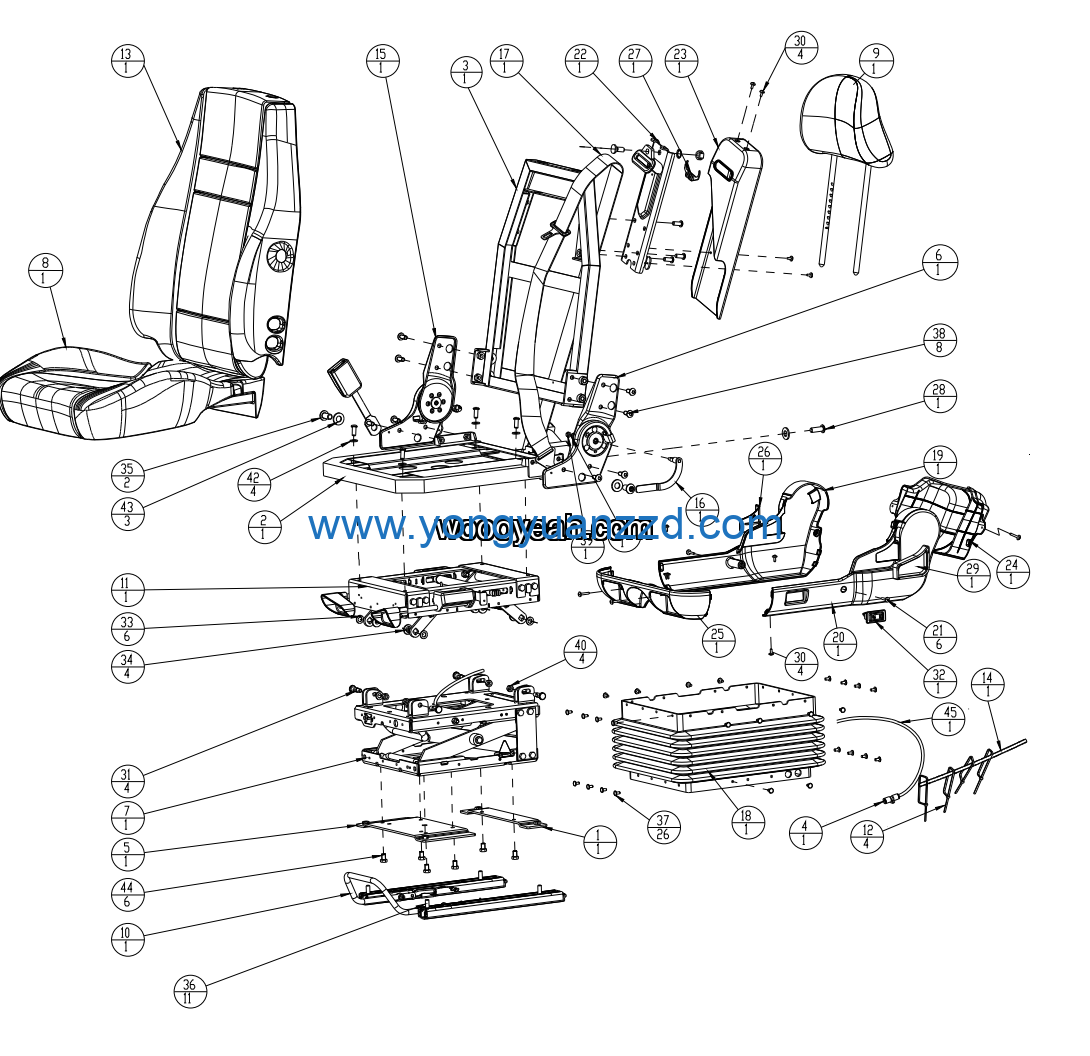

LGMG Off-Highway Dump Truck 2024 – SEAT ASSEMBLY – L1900-4190708195
Category: 2024 > Off-Highway Dump Truck > RTH136 > R1000Y3A0A104
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Slide rail assy SGA14236 | 4190002268012 | 1 |
| 2 | Tilt assy SGA14176 | 4190002268010 | 1 |
| 3 | Bundle rope 79S0101-K | 4190002268036 | 4 |
| 4 | Back assembly SGA22382 | 4190708195009 | 1 |
| 5 | Corrugated pipe SG16299 | 4190708195010 | 1 |
| 6 | Adjusting mechanism assy SGA11190（RH） | 4190002268005 | 1 |
| 7 | LH adjusting handle assy SGA11163 | 4190002268008 | 1 |
| 8 | Seat belt assembly SGA10138 | 4190708195011 | 1 |
| 9 | Dust shield SG14113 | 4190002268013 | 1 |
| 10 | RH decorative cover SG12101 | 4190002268018 | 1 |
| 11 | Connecting board SGA22370 | 4190708195001 | 1 |
| 12 | LH decorative cover SG12098 | 4190002268017 | 1 |
| 13 | Screw SG11423 | 4190002268030 | 6 |
| 14 | Seat belt bracket SG11402 | 4190708195012 | 1 |
| 15 | Seat belt cover SG11398 | 4190708195013 | 1 |
| 16 | Seat belt rear cover SG11397 | 4190708195014 | 1 |
| 17 | Front cover SG11322 | 4190002268014 | 1 |
| 18 | Protective cover RSG11321 | 4190002268019 | 1 |
| 19 | Protection ring SG11223 | 4190708195015 | 1 |
| 20 | Bolt SG10156 | 4190708195016 | 1 |
| 21 | Plastic handle assy SG10137 | 4190703794002 | 1 |
| 22 | Block iron assembly SGA22363 | 4190708195002 | 1 |
| 23 | Screw SG09202 | 4190002268031 | 8 |
| 24 | Connecting rod bolt S29398 | 4190002268033 | 4 |
| 25 | Air switch S20329 | 4190002268021 | 1 |
| 26 | Plastic gasket S14579 | 4190002268034 | 6 |
| 27 | Bush S14578 | 4190002268035 | 4 |
| 28 | Bolt 63S0145 | 4190002268037 | 2 |
| 29 | Bolt 63S0132？？？M8*1.25？？？ | 4190002268038 | 11 |
| 30 | Plastic buckle 33S0129-1 | 4190002268040 | 26 |
| 31 | Bolt 32S0110 | 4190002268041 | 8 |
| 32 | Nut 07S0124 | 4190002268042 | 1 |
| 33 | Back iron table assembly SGA22362 | 4190708195003 | 1 |
| 34 | Nut 07S0102 | 4190002268043 | 4 |
| 35 | Washer 06S0176 | 4190002268044 | 1 |
| 36 | Washer 06S0133 | 4190002268046 | 4 |
| 37 | SEAT ASSEMBLY | 2719010127006 | 3 |
| 38 | Bolt M8*1.25*12 LG05S0269 | 4190002268023 | 6 |
| 39 | Breather tube SG16249 | 4190002268028 | 1 |
| 40 | Connector SG17007 | 4190002268015 | 1 |
| 41 | Connecting board SGA20037 | 4190708195004 | 1 |
| 42 | Left adjustment mechanism assembly SGA18062 | 4190708195005 | 1 |
| 43 | Air suspension SGA22384 | 4190708195006 | 1 |
| 44 | Block assembly SGA22383 | 4190708195007 | 1 |
| 45 | Headrest Assembly SGA20135 | 4190708195008 | 1 |
