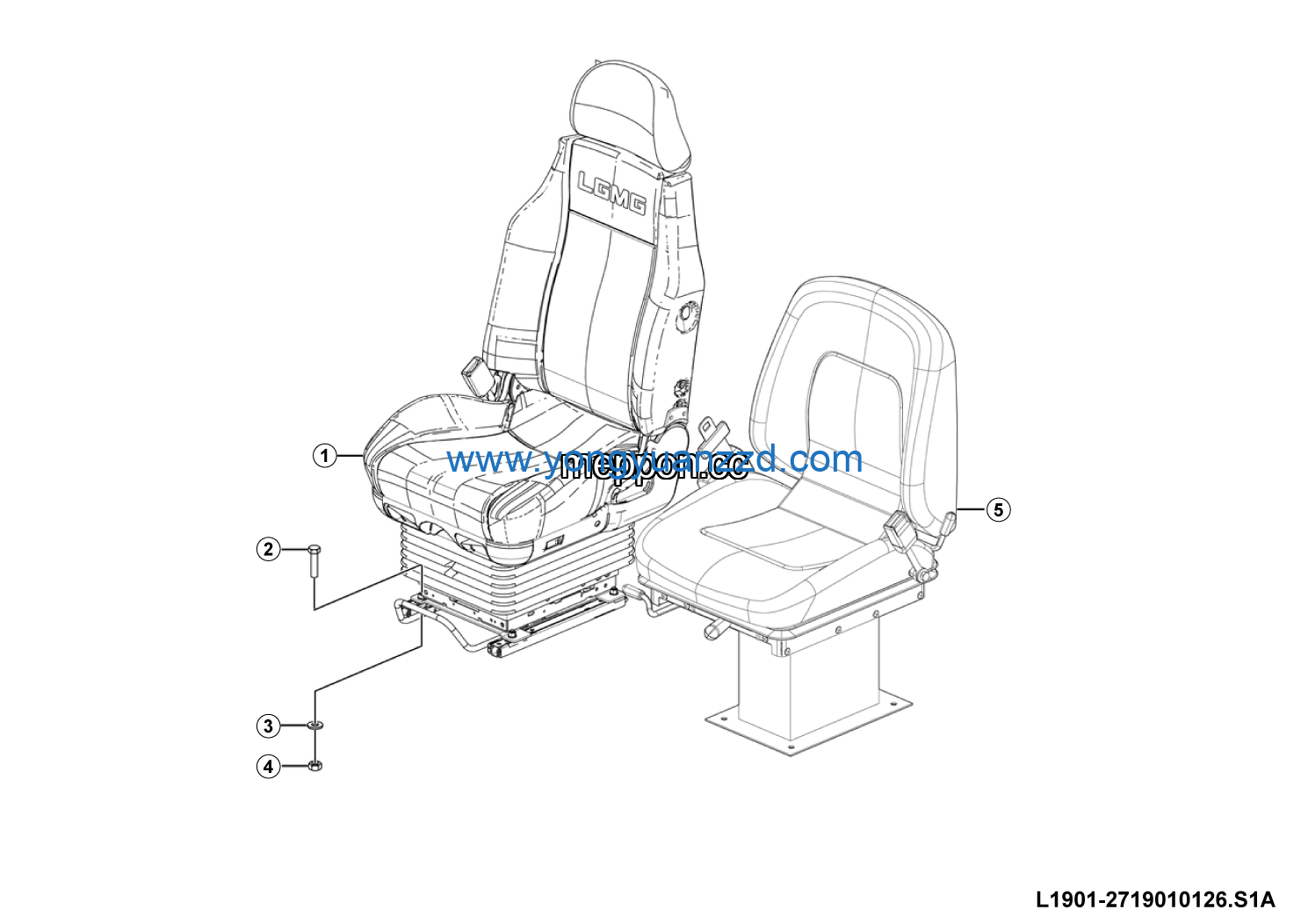

LGMG Off-Highway Dump Truck 2024 – Seat installation assy – L1901-2719010126.S1A
Category: 2024 > Off-Highway Dump Truck > CMT66A > C066AW3E0A004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Seat assy | 4190003462 | 1 |
| 2 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 4 |
| 3 | Washer GB97.1-8EpZn-300HV | 4015000072 | 8 |
| 4 | Nut GB6170-M8EpZn-8 | 4013000033 | 8 |
| 5 | Seat assembly | 27190101271 | 1 |
