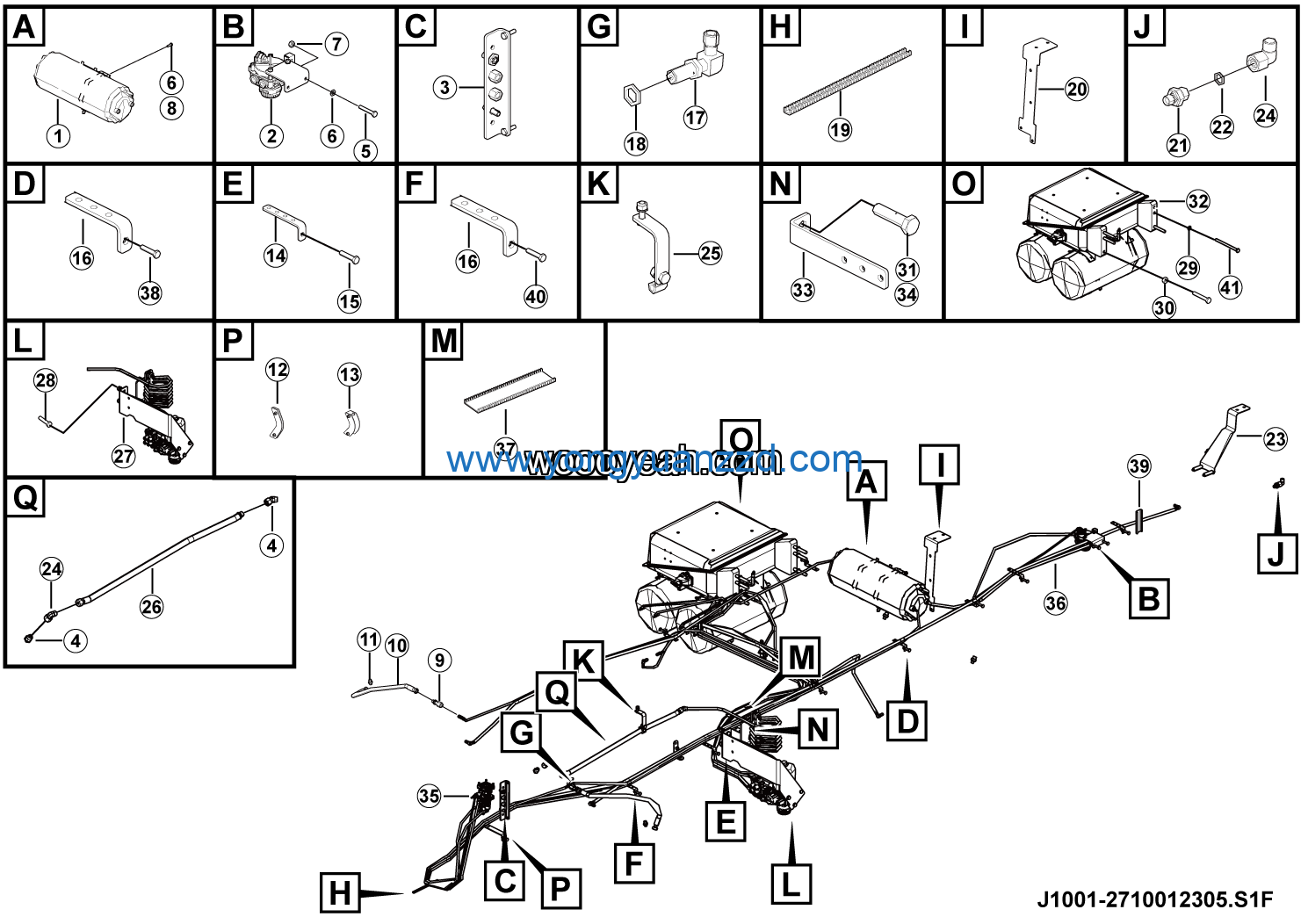

LGMG Off-Highway Dump Truck 2024 – Service barke assembly – J1001-2710012305.S1F
Category: 2024 > Off-Highway Dump Truck > MT96L > M096LW3A0M313
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Air pipe gpu-13-i-880-sg | 27100107441 | 2 |
| 2 | CONNECTOR | 27100100661 | 2 |
| 3 | Sheath installation | 27100128571 | 4 |
| 4 | Sheath installation | 27100128781 | 2 |
| 5 | Plate | 27100118691 | 4 |
| 6 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 7 |
| 7 | Bracket 1 | 27100103561 | 9 |
| 8 | Joint m12-m12 | 27100104301 | 1 |
| 9 | Washer JB982-12 | 4015000327 | 1 |
| 10 | Sleeve | 27100107511 | 1 |
| 11 | Installation assembly | 27100117051 | 1 |
| 12 | Pipe bracket | 27100107393 | 1 |
| 13 | Straight joint LGB155-11622 | 4041001160 | 4 |
| 14 | Washer JB982-16 | 4015000141 | 6 |
| 15 | Plate | 27100120621 | 1 |
| 16 | Combination joint LGB143-02213 | 4041001156 | 3 |
| 17 | Plate | 27100120661 | 1 |
| 18 | Steel wire hose | 27100117351 | 1 |
| 19 | Dryer assembly | 27100124961 | 1 |
| 20 | Bolt GB5782-M16*70EpZn-8.8 | 4011000231 | 2 |
| 21 | Washer GB97.1-16EpZn-300HV | 4015000181 | 5 |
| 22 | Relay valve installation assembly | 27100117441 | 1 |
| 23 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 4 |
| 24 | Nut GB6170-M16EpZn-8 | 4013000016 | 1 |
| 25 | Asm | 27100122521 | 1 |
| 26 | Plate | 27100122501 | 1 |
| 27 | Bolt GB5782-M16*60EpZn-8.8 | 4011000068 | 7 |
| 28 | Break valve | 27100120631 | 1 |
| 29 | Hose assembly | 27100123061 | 1 |
| 30 | Cable protector | 27140108701 | 2 |
| 31 | Bolt GB5783-M10*60EpZn-8.8 | 4011010653 | 2 |
| 32 | Rubber sleeve | 27100124781 | 1 |
| 33 | Sensor | 27100120641 | 1 |
| 34 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 2 |
| 35 | Bolt GB5782-M16*210EpZn-10.9 | 4011010370 | 2 |
| 36 | Combination joint LGB143-12213 | 4041001218 | 2 |
| 37 | Bolt GB5782-M10*60EpZn-8.8 | 4011000050 | 2 |
| 38 | Washer GB97.1-10EpZn-300HV | 4015000162 | 20 |
| 39 | Nut GB6170-M10EpZn-8 | 4013000007 | 16 |
| 40 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 5 |
| 41 | Nipple | 27100118011 | 2 |
