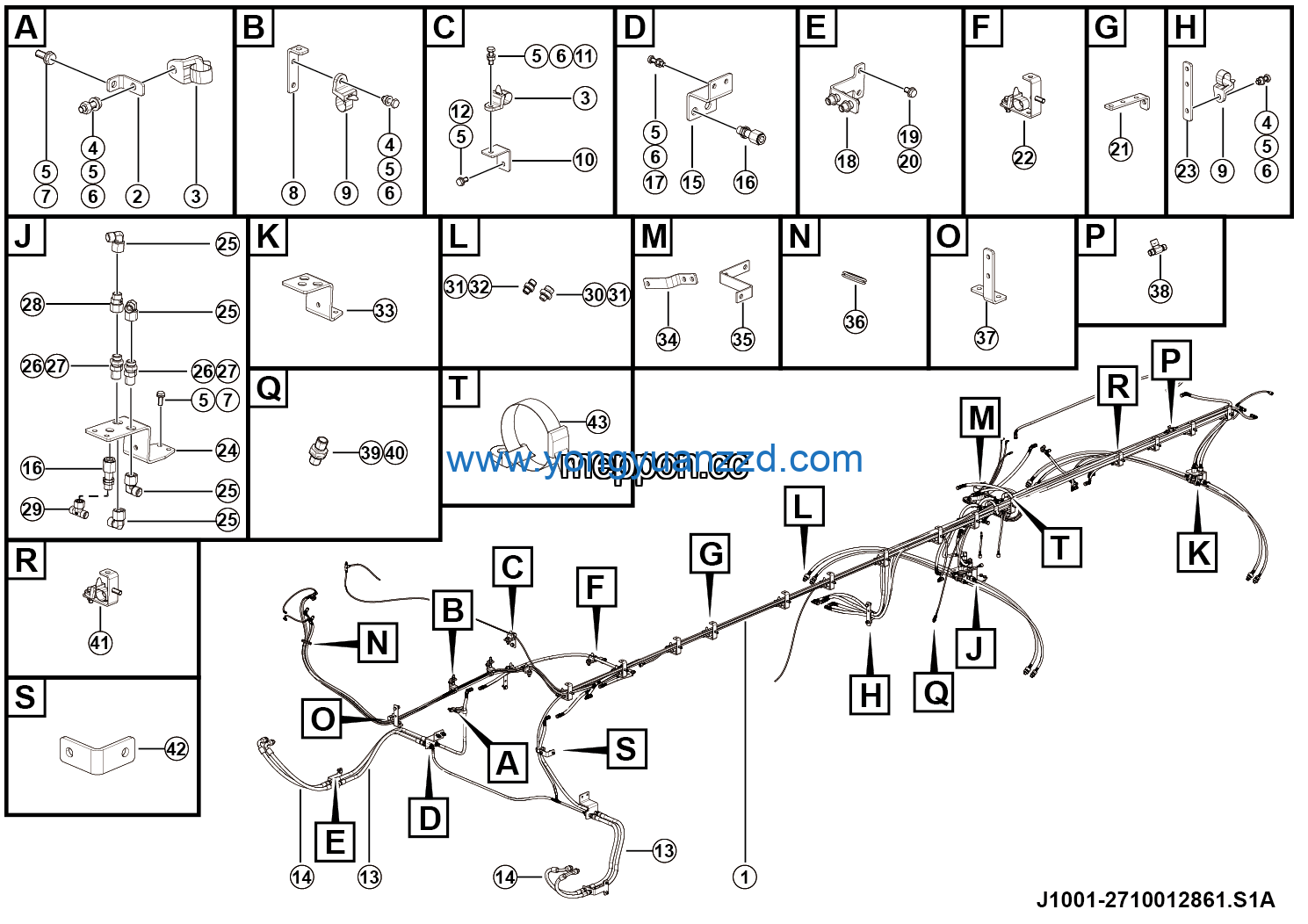

LGMG Off-Highway Dump Truck 2024 – Service brake accessories assy – J1001-2710012861.S1A
Category: 2024 > Off-Highway Dump Truck > RTH136 > R1360Y3A0A304
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27110108181 | 2 |
| 2 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 2 |
| 3 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 2 |
| 4 | Air hose GPU-13-I-880-SG | 2710010744-021 | 4 |
| 5 | Air hose GPU-13-I-700-SG | 2710010176-012 | 4 |
| 6 | Air hose bracket 3 | 27100127331 | 2 |
| 7 | Nipple | 27100118011 | 6 |
| 8 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 2 |
| 9 | Bulkhead joint bracket assy | 27100127671 | 2 |
| 10 | Bolt GB5783-M12*20EpZn-8.8 | 4011000087 | 4 |
| 11 | Air brake lines assy | 27100128622 | 1 |
| 12 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 13 | L-plate 130*25*37 | 27100127341 | 3 |
| 14 | C-bracket assy | 27100129901 | 10 |
| 15 | Bracket 150*25*6 | 27100129891 | 1 |
| 16 | Air hose fixing bracket 280*80*100 | 27100127571 | 1 |
| 17 | Combination joint LGB143-02213 | 4041001156 | 6 |
| 18 | Bulkhead joint SV15LOMDA3C | 4120000618 | 4 |
| 19 | NUT | 27150102951 | 4 |
| 20 | Straight transition joint DA15LOMD | 4120709120 | 1 |
| 21 | Tee LGB175-0181818 | 4041010961 | 2 |
| 22 | Holder | 27200142321 | 1 |
| 23 | Connecter | 27100114051 | 8 |
| 24 | Washer JB982-16 | 4015000141 | 12 |
| 25 | CONNECTOR | 27100100661 | 4 |
| 26 | Air hose bracket 150*80*100 | 27100127581 | 1 |
| 27 | Air hose fixing bracket 150*25*35 | 27100127591 | 2 |
| 28 | Z-bracket 150*114*26 | 27100127351 | 1 |
| 29 | Grommet 60*40*4 | 27100127531 | 1 |
| 30 | Air hose bracket 1 | 27100127311 | 1 |
| 31 | T-connector M14-M12-M14 | 27110101341 | 1 |
| 32 | Joint M12-M12 | 27110101331 | 1 |
| 33 | Cable tie 14400342 | 4130703098 | 6 |
| 34 | Washer JB982-12 | 4015000327 | 1 |
| 35 | Tie assy | 27100128731 | 4 |
| 36 | Plate | 27100122431 | 1 |
| 37 | Nylon large tie strap HS-J118 | 4130705870 | 2 |
| 38 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 21 |
| 39 | Washer GB97.1-10EpZn-300HV | 4015000162 | 35 |
| 40 | Nut GB6170-M10EpZn-8 | 4013000007 | 23 |
| 41 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 8 |
| 42 | L board100*37*25 | 27100123901 | 2 |
| 43 | Cable tie HS-J117 | 4130704969 | 9 |
