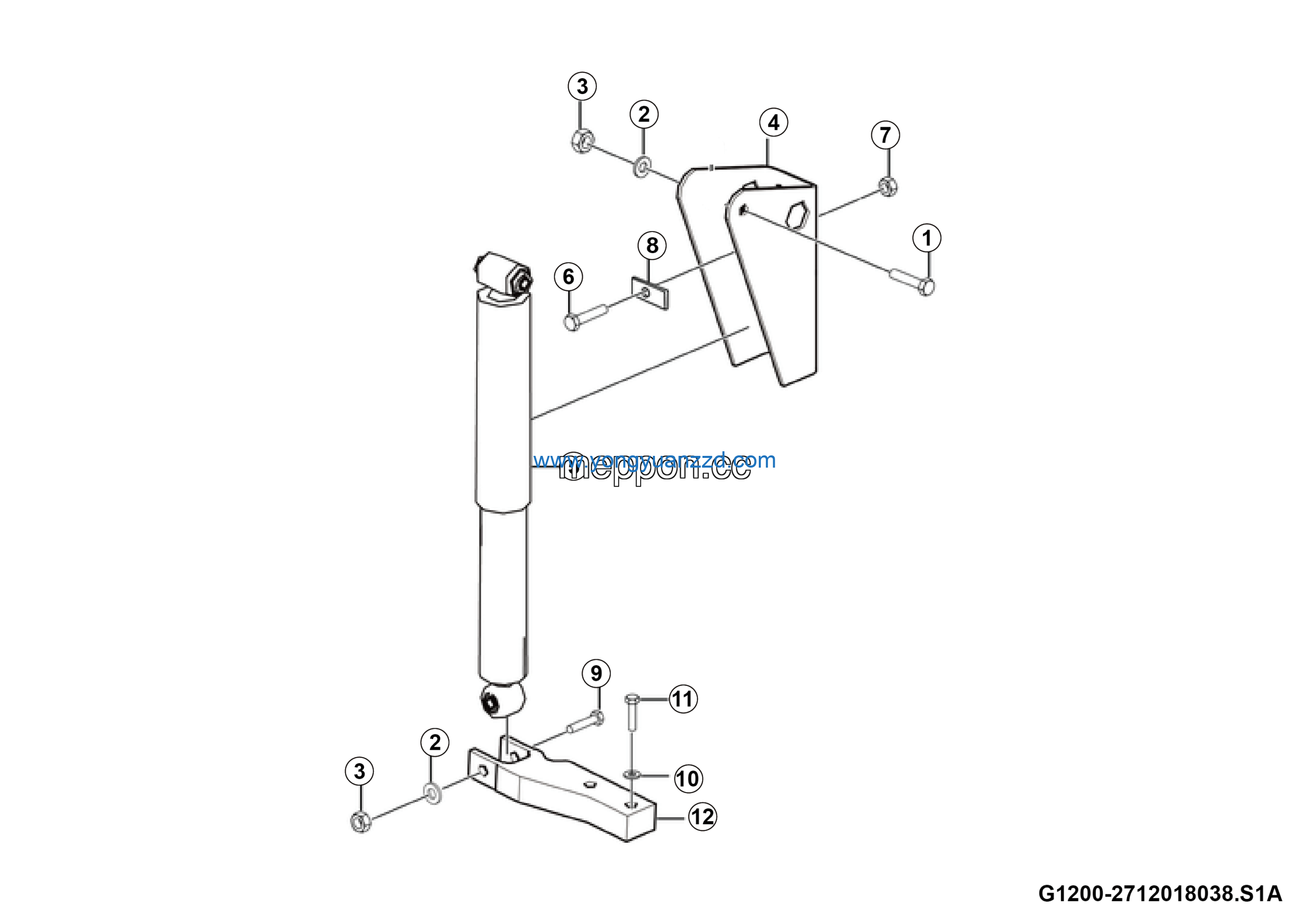

LGMG Off-Highway Dump Truck 2024 – Shock absorber installation – G1200-2712018038.S1A
Category: 2024 > Off-Highway Dump Truck > CMT66 > C0660W3E0A208
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB96.1-16EpZn-300HV | 4015000279 | 8 |
| 2 | Bolt GB5785-M16*1.5*70EpZn-8.8 | 4011000499 | 4 |
| 3 | Stents under shock absorber | 27120116961 | 2 |
| 4 | Bolt GB5785-M16*1.5*130flZnyc-12.9-480 | 4011010557 | 2 |
| 5 | Washer GB97.1-16EpZn-300HV | 4015000181 | 6 |
| 6 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 4 |
| 7 | Shock absorber upper bracket assembly | 27120116931 | 2 |
| 8 | Shock absorber assy | 4110001000 | 2 |
| 9 | Bolt GB5785-M12*1.25*45EpZn-8.8 | 4011000501 | 8 |
| 10 | Nut GB6185.2-M12EpZn-8 | 4013010159 | 8 |
| 11 | Backing plate | 27120104202 | 4 |
| 12 | Bolt GB5785-M16*1.5*90flZnyc-12.9-480 | 4011010558 | 2 |
