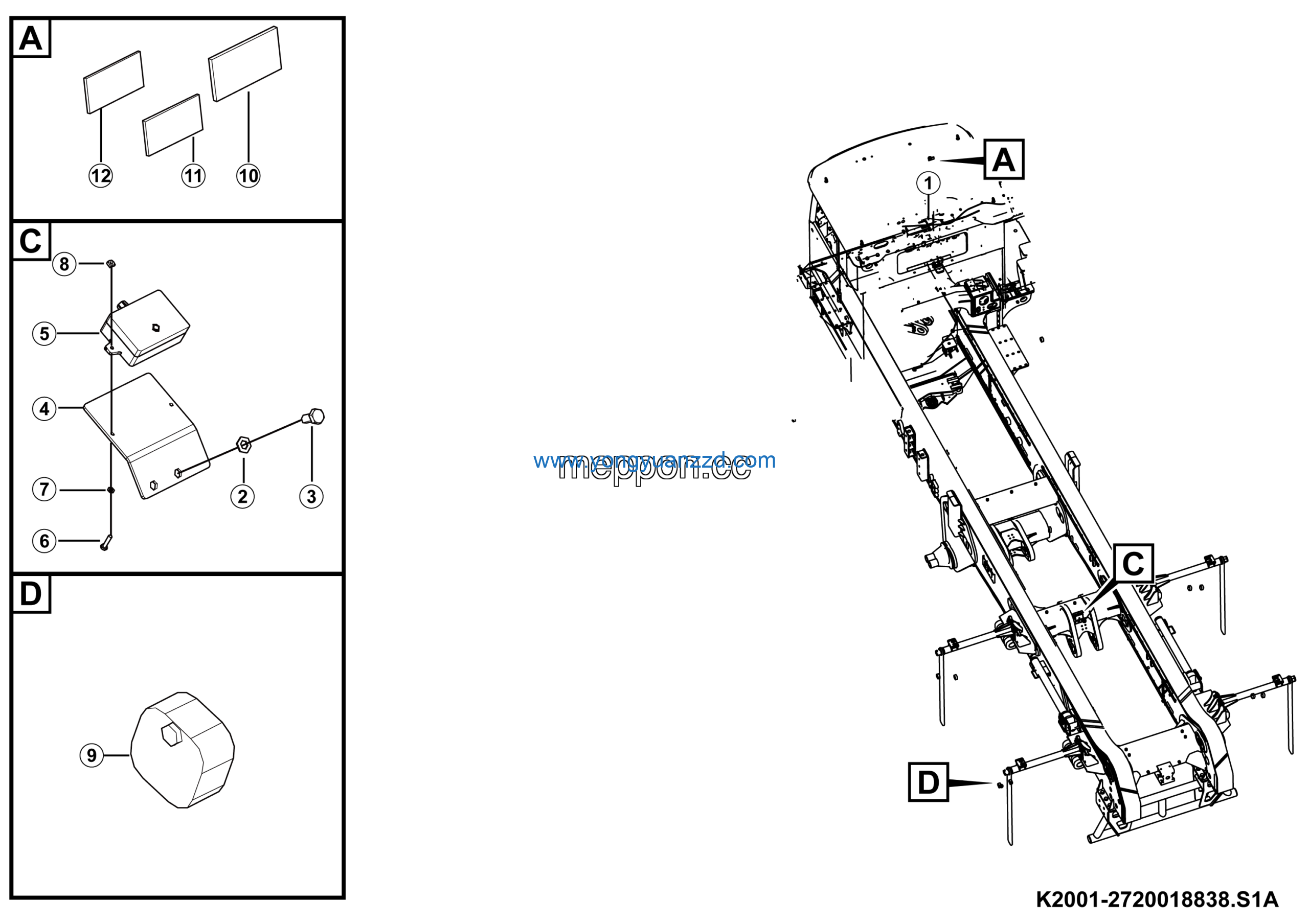

LGMG Off-Highway Dump Truck 2024 – Smart tire pressure&temp monitoring system – K2001-2720018838.S1A
Category: 2024 > Off-Highway Dump Truck > RTH136 > R1000Y3A0A104
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Vehicle mounted monitor | 4130701902 | 1 |
| 2 | Vehicle monited suction cup 6WF038 | 4130704889 | 1 |
| 3 | DTIS Adhesive | 4130704891 | 1 |
| 4 | Antenna 433 | 4130701904-004 | 1 |
| 5 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
| 6 | Bolt GB5783-M10*20flZnyc-8.8-480 | 4011010748 | 2 |
| 7 | L-bracket 220*120*4 | 27200188391 | 1 |
| 8 | Repeater VR-302-GF | 4130705079 | 1 |
| 9 | Bolt GB5783-M4*16EpZn-8.8 | 4011000287 | 2 |
| 10 | Washer GB848-4EpZn-300HV | 4015000006 | 4 |
| 11 | Nut GB6172.1-M4EpZn-05 | 4013000047 | 2 |
| 12 | Tyre sensor OTR | 4130701901 | 10 |
