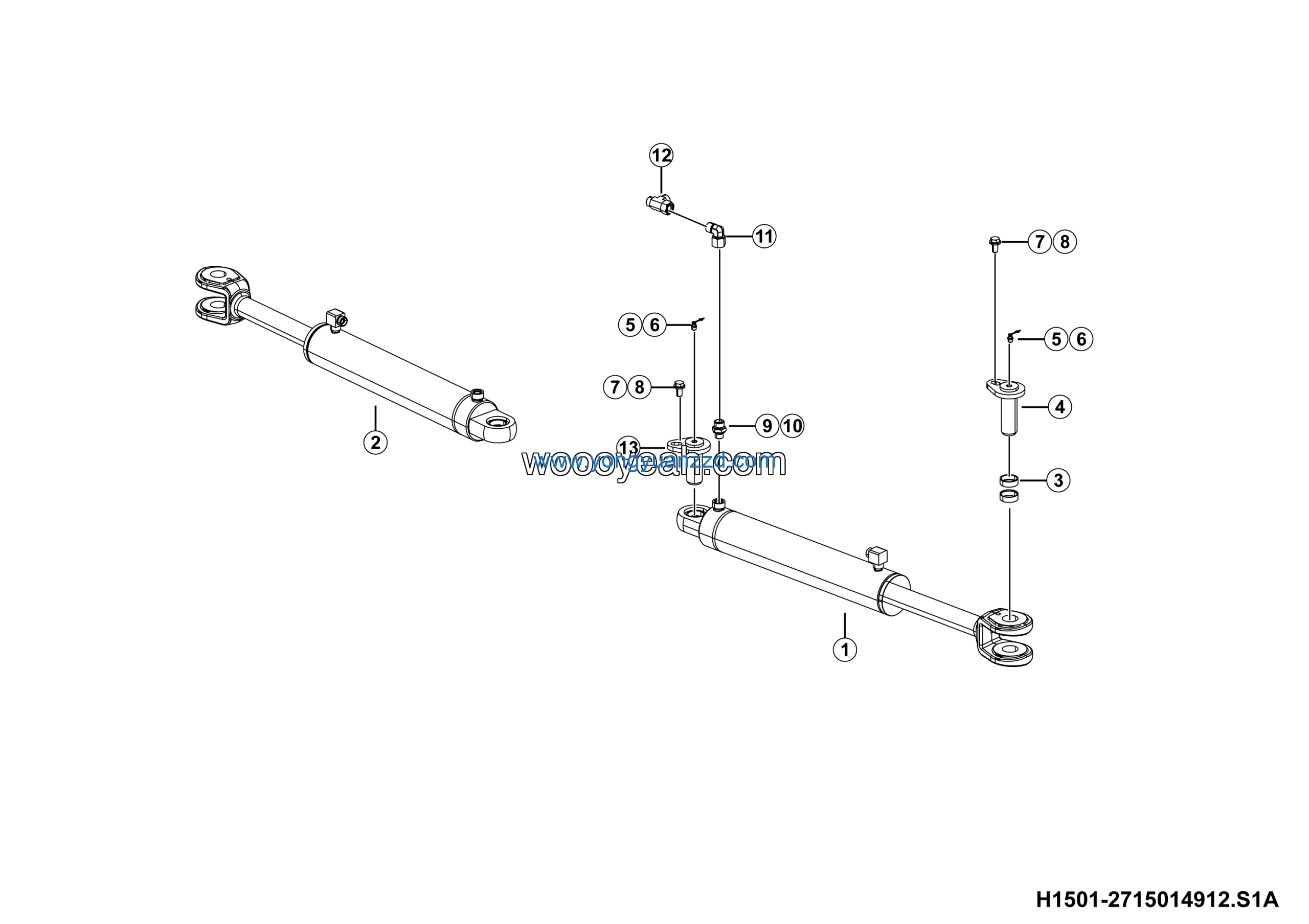

LGMG Off-Highway Dump Truck 2024 – Steering cylinder assy – H1501-2715014912.S1A
Category: 2024 > Off-Highway Dump Truck > MTH116M > M116MY3A2AU004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | O-ring GB3452.1-19.0*2.65G | 4030000280 | 2 |
| 2 | Combination joint LGB143-02213 | 4041001156 | 2 |
| 3 | Tee CC-22 | 4190001347 | 2 |
| 4 | Axis | 27150109901 | 2 |
| 5 | Steering cyl（lh）d80x050x395st/745cl | 4120716126 | 1 |
| 6 | Steering cyl（rh）d80xd50x395st/745cl | 4120716127 | 1 |
| 7 | Sleeve | 27150109951 | 4 |
| 8 | Axis | 27150110951 | 2 |
| 9 | Butter nozzle cap JXHF-00006 | 4120000015 | 4 |
| 10 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 11 | Bolt GB5783-M12*25flZnyc-8.8-480 | 4011011038 | 4 |
| 12 | Washer GB1230-12flZnyc-45-480 | 4015010377 | 4 |
| 13 | Straight joint LGB155-01822 | 4041000822 | 2 |
