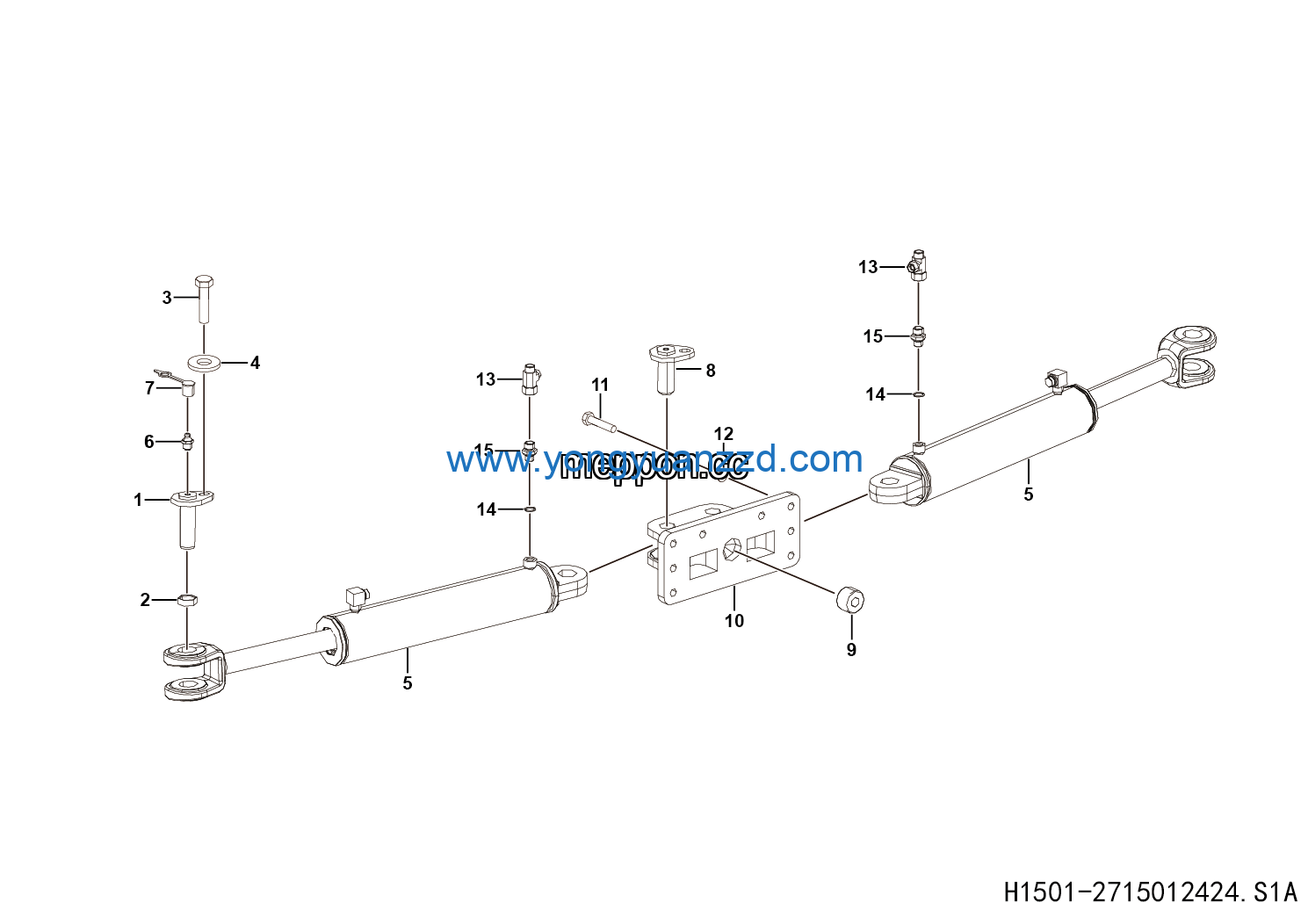

LGMG Off-Highway Dump Truck 2024 – Steering sylinder assy – H1501-2715012424.S1A
Category: 2024 > Off-Highway Dump Truck > CMT96H > C096HW3E0A002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Steering cylinder base | 27150110001 | 1 |
| 2 | Bolt GB5783-M16*45EpZn-10.9 | 4011000564 | 8 |
| 3 | Washer 16 | 27150105312 | 8 |
| 4 | Tee CC-22 | 4190001347 | 2 |
| 5 | O-ring GB3452.1-19.0*2.65G | 4030000280 | 2 |
| 6 | Straight joint LGB155-01822 | 4041000822 | 2 |
| 7 | Axis | 27150110951 | 2 |
| 8 | Sleeve | 27150109951 | 4 |
| 9 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 4 |
| 10 | Washer GB1230-12EpZn-45 | 4015000288 | 4 |
| 11 | Steering cylinder HSGL-80*45*370-760 | 4120706513 | 2 |
| 12 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 13 | Butter nozzle cap JXHF-00006 | 4120000015 | 4 |
| 14 | Axis | 27150109901 | 2 |
| 15 | Shaft | 27150106671 | 1 |
