LGMG Off-Highway Dump Truck 2024 – Steering wheel assy – H1500-2715014689.S1A
Category: 2024 > Off-Highway Dump Truck > RTH100 > R1000Y3A0A110

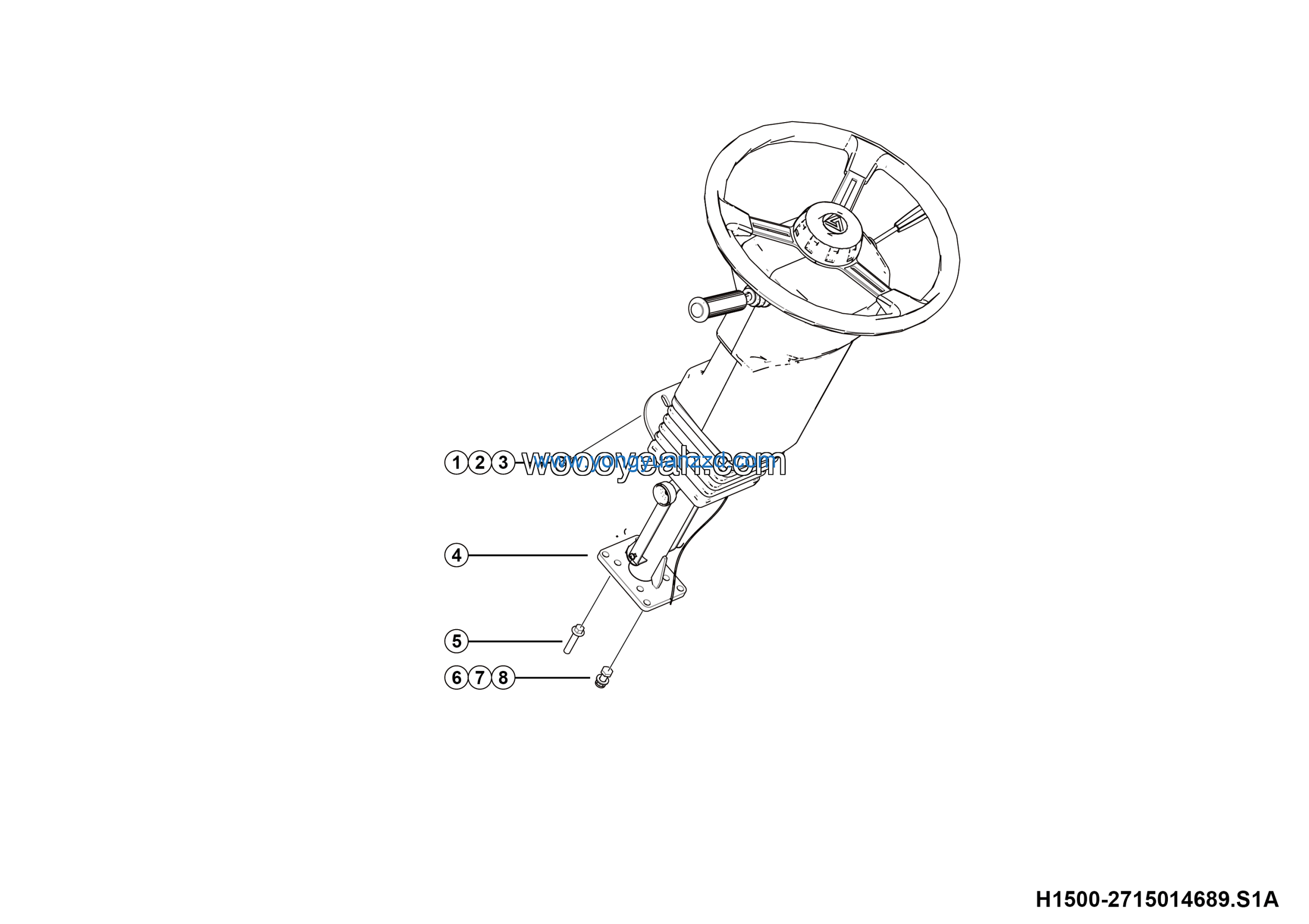

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M8*30flznyc-8.8-480 | 4011010708 | 2 |
| 2 | Washer GB96.1-8flZnyc-300HV-480 | 4015010289 | 2 |
| 3 | Nut GB6170-M8flznyc-8-480 | 4013010291 | 2 |
| 4 | Steering column assembly | 27150119341 | 1 |
| 5 | Bolt GB16674.1-M10*25EpZn-12.9 | 4011010295 | 4 |
| 6 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 4 |
| 7 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 4 |
| 8 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 4 |
