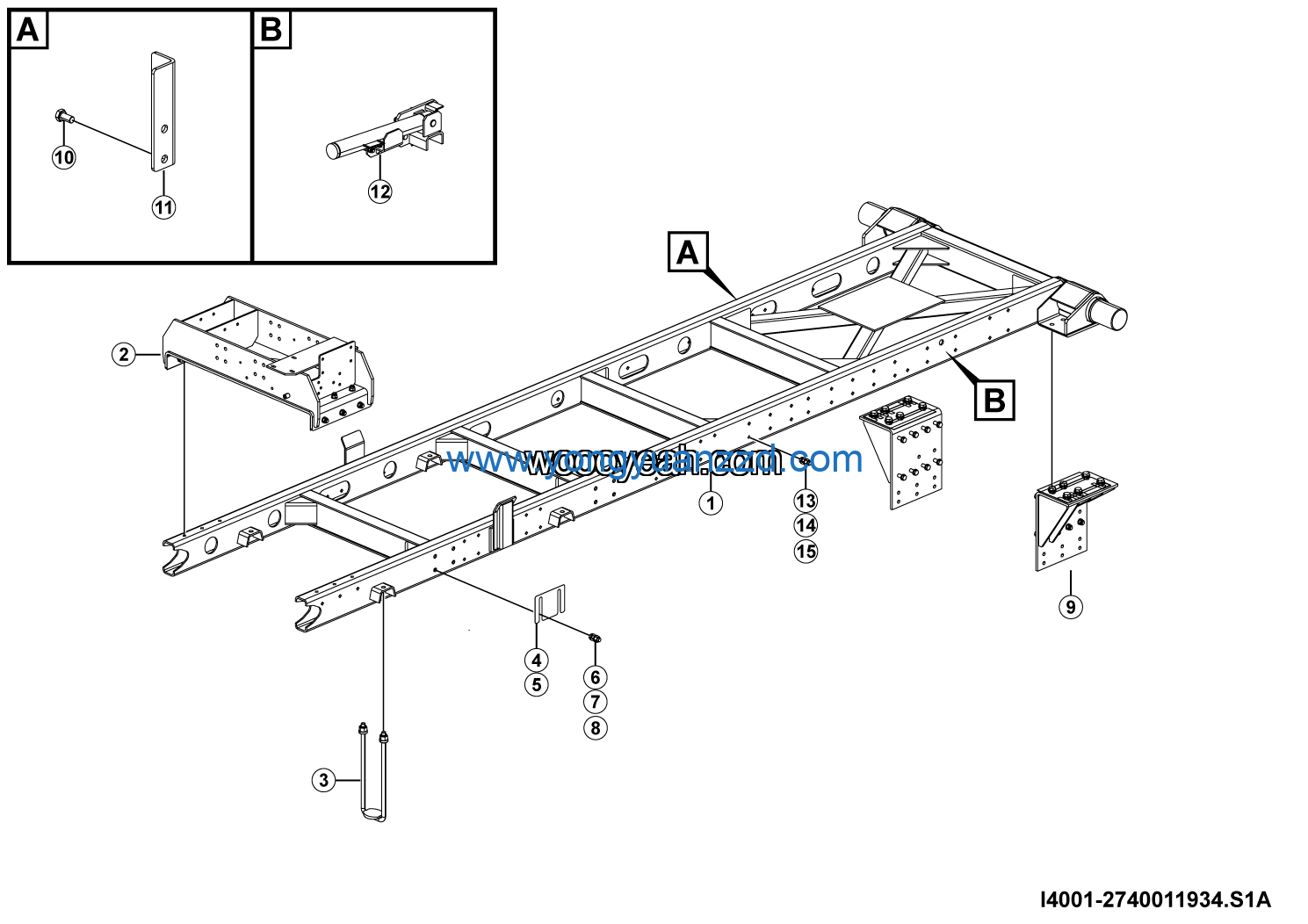

LGMG Off-Highway Dump Truck 2024 – Subframe assy – I4001-2740011934.S1A
Category: 2024 > Off-Highway Dump Truck > CMT66 > C0660W3E0A208
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 2 |
| 2 | PLATE | 27170128381 | 1 |
| 3 | Frame | 27400109901 | 1 |
| 4 | Bolt GB5783-M16*45EpZn-8.8 | 4011000205 | 50 |
| 5 | Washer GB97.1-16EpZn-300HV | 4015000181 | 100 |
| 6 | Nut GB6170-M16EpZn-8 | 4013000016 | 50 |
| 7 | Subframe wldmt | 27400119431 | 1 |
| 8 | Hoist cylinder mount assy | 27400119351 | 1 |
| 9 | Aux frame assembly | 27400112851 | 4 |
| 10 | Adjustment gasket | 27400102122 | 4 |
| 11 | Adjustment gasket | 27400102132 | 4 |
| 12 | Bolt GB5783-M18*50EpZn-8.8 | 4011000364 | 16 |
| 13 | Washer GB97.1-18EpZn-300HV | 4015000182 | 32 |
| 14 | NUT GB6170-M18EpZn-8 | 4013000018 | 16 |
| 15 | Frame | 27400109961 | 1 |
