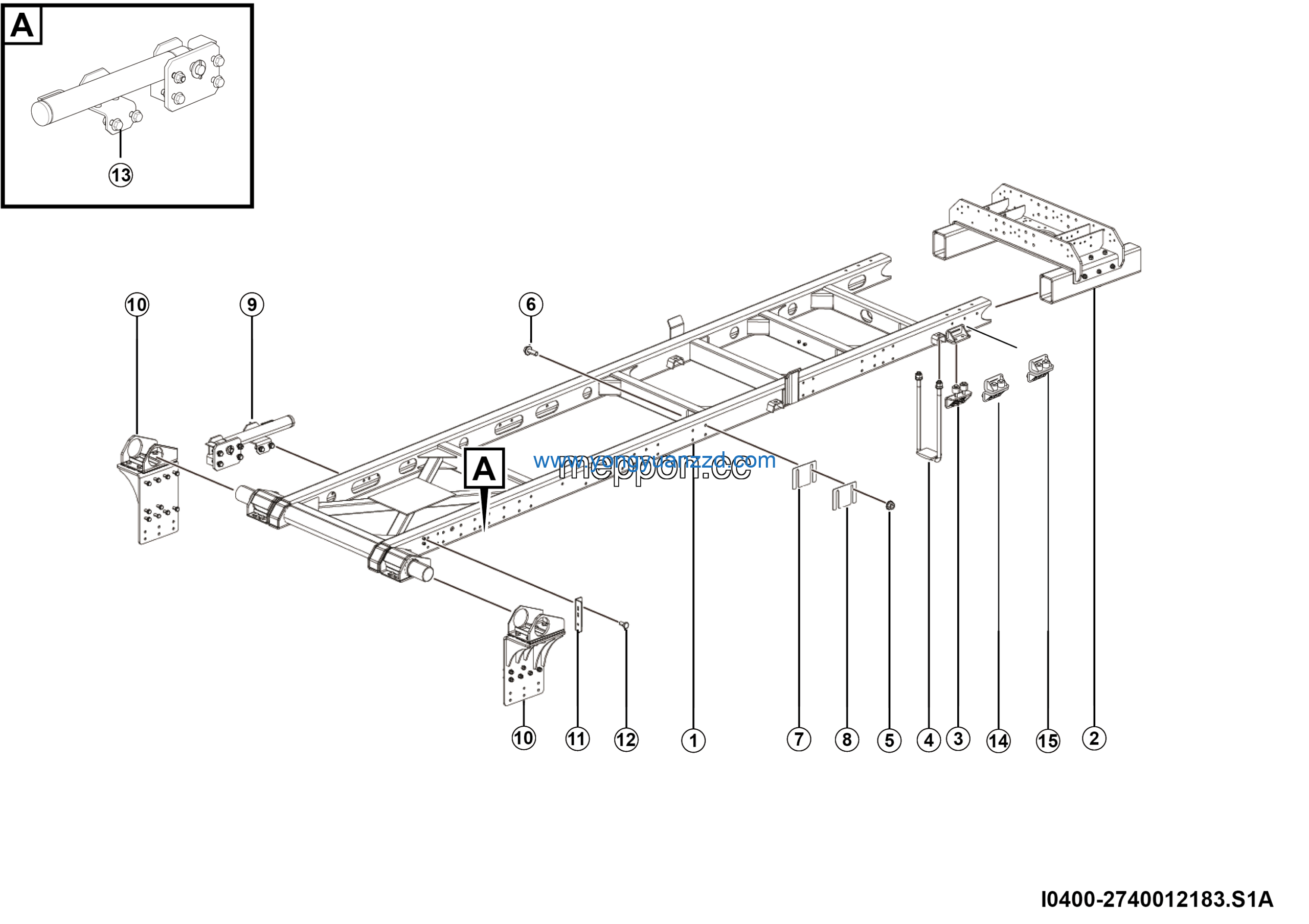

LGMG Off-Highway Dump Truck 2024 – Subframe installation – I0400-2740012183.S1A
Category: 2024 > Off-Highway Dump Truck > CMT106 > C1060W3E0A027
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rear flip mount assembly | 27400113981 | 1 |
| 2 | PLATE | 27170128381 | 1 |
| 3 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 2 |
| 4 | Plate | 27400109291 | 1 |
| 5 | Fr connection mount assy | 27400121871 | 2 |
| 6 | Fr connection mount assy | 27400121911 | 2 |
| 7 | Subframe wldmt | 27400121841 | 1 |
| 8 | Lifting seat mounting | 27400109111 | 1 |
| 9 | Plate | 27400108401 | 2 |
| 10 | U-bolt mounting assy | 27400108351 | 2 |
| 11 | Nut GB6177.2-RLM18*1.5EpZn-10 | 4013010546 | 74 |
| 12 | Bolt QC340.2-M18*1.5*50EpZn-10.9 | 4011011598 | 74 |
| 13 | Spacer 210*150*0.5 | 27400119271 | 4 |
| 14 | Spacer 210*150*1 | 27400119281 | 4 |
| 15 | Assembly | 27400108971 | 1 |
