LGMG Off-Highway Dump Truck 2024 – Suspension assy – G1200-2712017022
Category: 2024 > Off-Highway Dump Truck > CMT106F > C1060W4E0A001

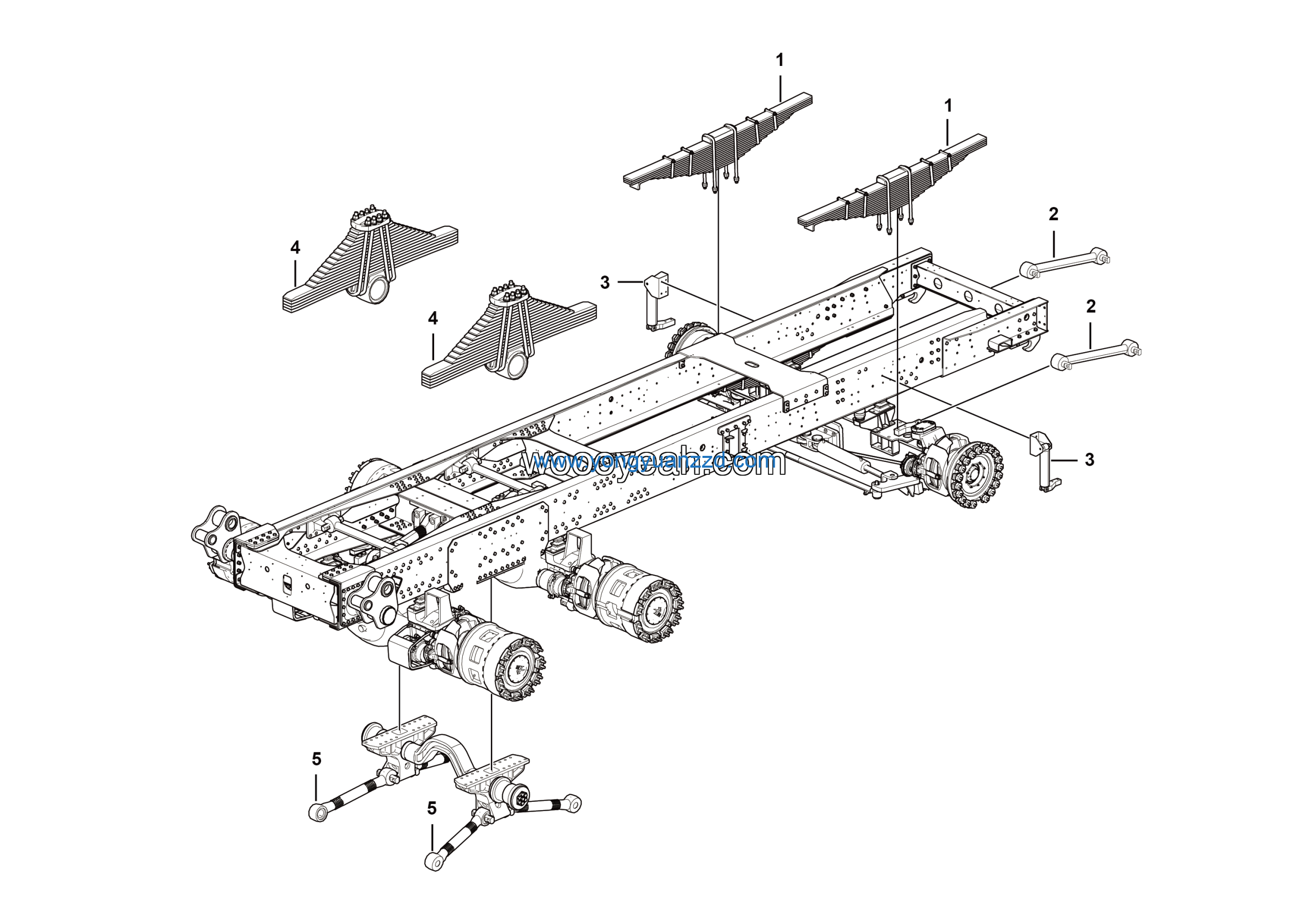

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Front the spring assembly | 27120122451 | 1 |
| 2 | Front thrust rod install assembly | 27120114131 | 1 |
| 3 | Shock absorber assembly | 27120114141 | 1 |
| 4 | Rear the spring assembly | 27120123241 | 1 |
| 5 | Rear the thrusting rod mounting assembly | 27120122471 | 1 |
