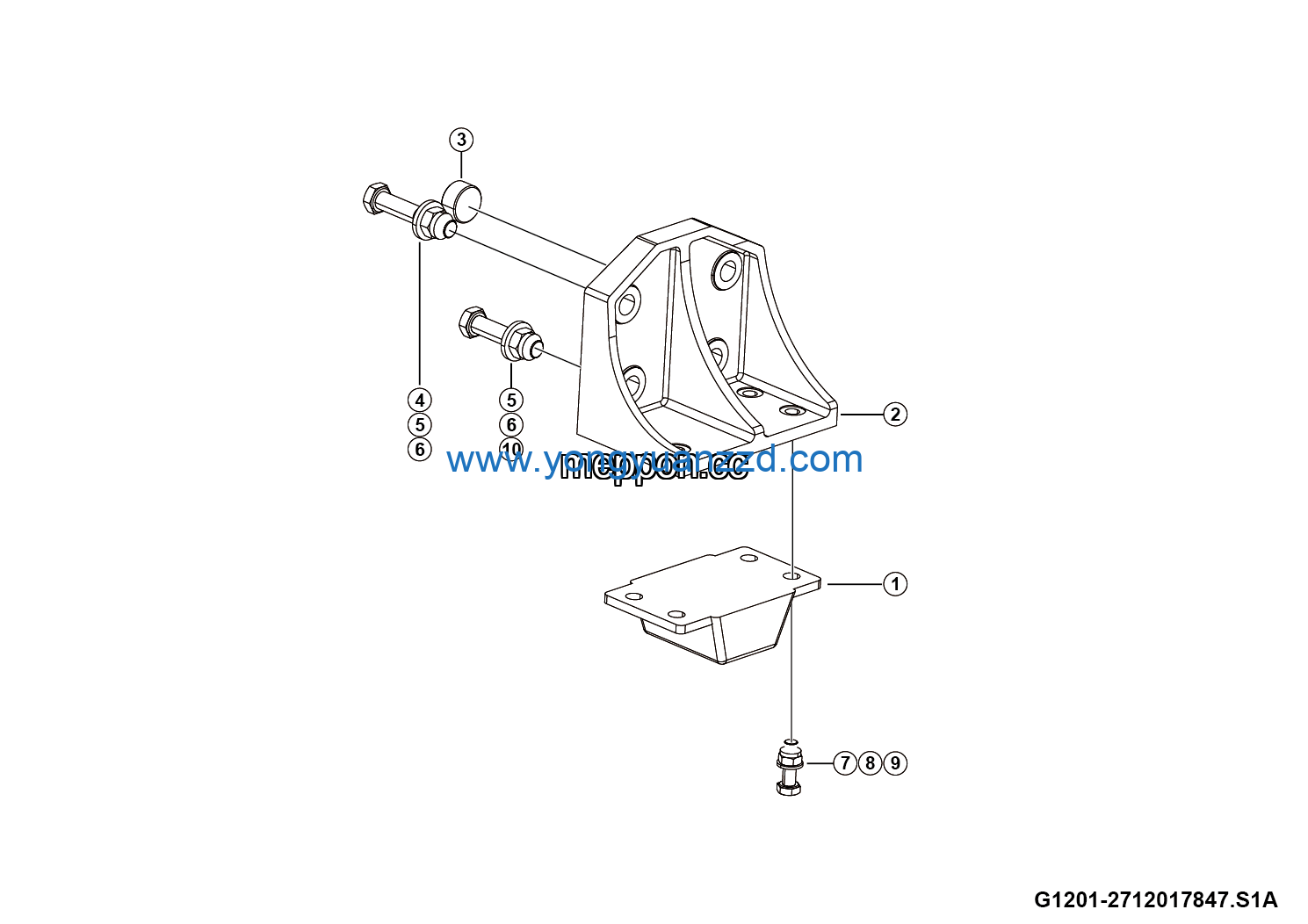

LGMG Off-Highway Dump Truck 2024 – Suspension limit block installation – G1201-2712017847.S1A
Category: 2024 > Off-Highway Dump Truck > MT50 > M0500Y3E0M104
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | BOLT GB5783-M14*65flZnyc-12.9-480 | 4011010546 | 2 |
| 2 | The limiting block assembly | 27120103561 | 1 |
| 3 | The limiting block supporting frame | 27120103962 | 1 |
| 4 | Cushion block | 27120103971 | 1 |
| 5 | Bolt GB5782-M14*75flZnyc-12.9-480 | 4011010600 | 2 |
| 6 | Washer GB1230-14EpZn-45 | 4015000358 | 4 |
| 7 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 4 |
| 8 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 4 |
| 9 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 10 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
