LGMG Off-Highway Dump Truck 2024 – SYSTEM – K2001-2720014714.S1A
Category: 2024 > Off-Highway Dump Truck > MT116H > M116HW3A0M002

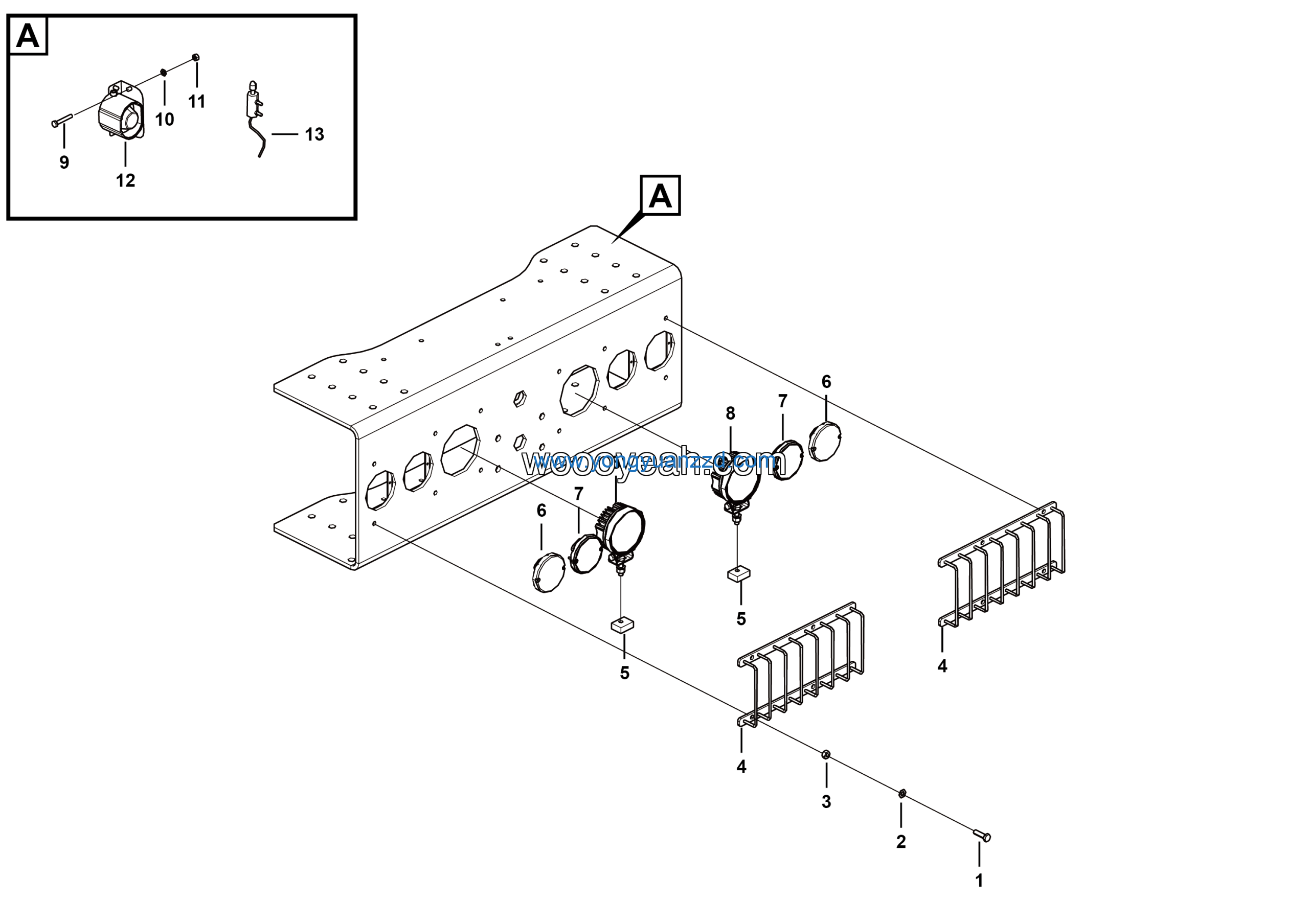

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 2 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 3 | Reverse buzzer DDB101-LG | 4130000294 | 1 |
| 4 | Cargo lifting switch XJK-010-09 | 4130000641 | 1 |
| 5 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 8 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 7 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 8 | Tail light guard | 27200111471 | 2 |
| 9 | Rubber insert | 27200104361 | 2 |
| 10 | LED Yellow turn signal SG-XH019A | 4130705601 | 2 |
| 11 | LED Width indicator lamp SG-XH019B | 4130705602 | 2 |
| 12 | Work lamp HCWK-27W-03 | 4130705603 | 2 |
| 13 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 2 |
