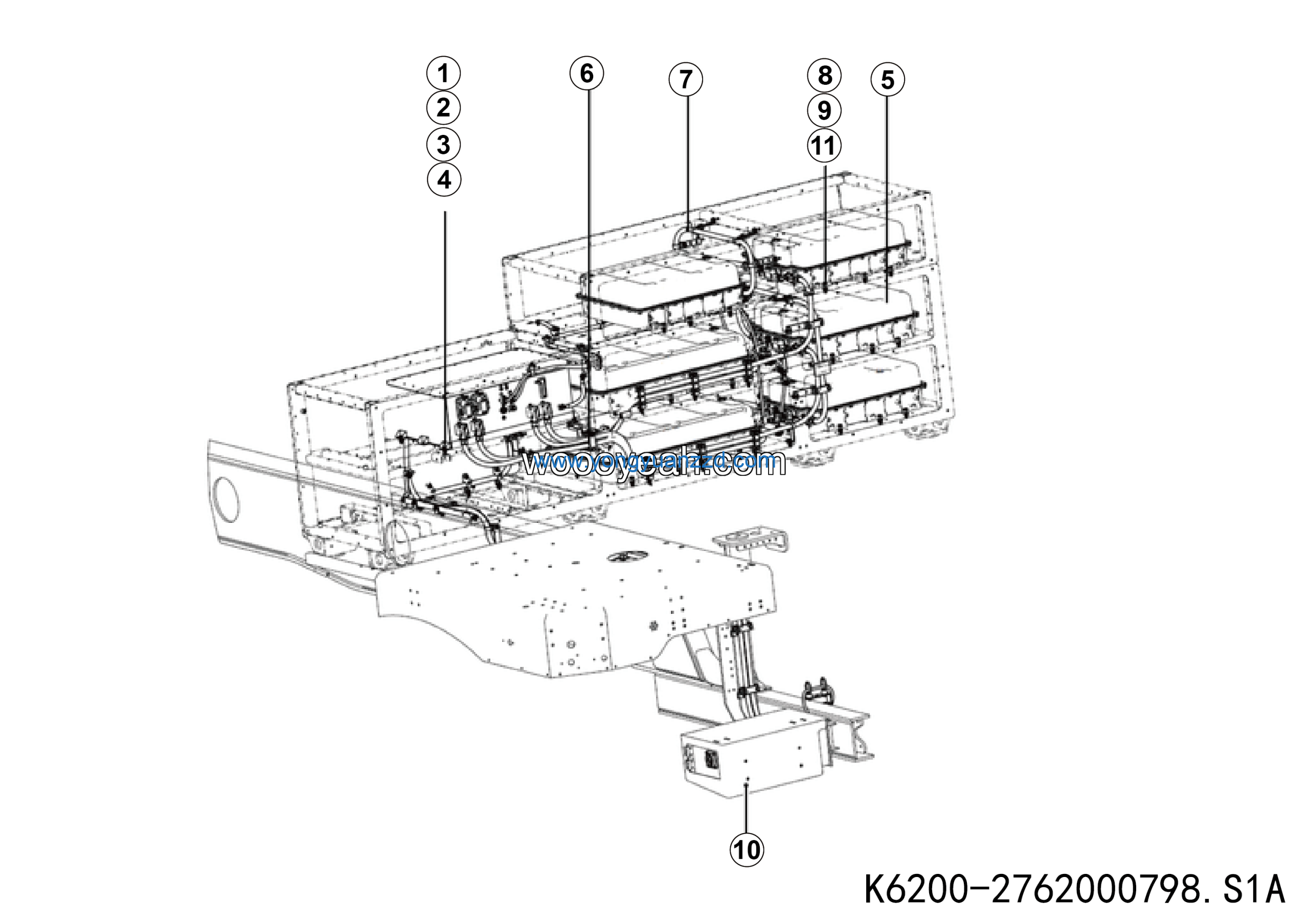

LGMG Off-Highway Dump Truck 2024 – Traction battery sys – K6200-2762000798.S1A
Category: 2024 > Off-Highway Dump Truck > RTH136 > R1000Y3A0A104
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Charging socket assy | 27620007441 | 1 |
| 2 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 70 |
| 3 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 4 |
| 4 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 4 |
| 5 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 4 |
| 6 | Bolt GB5783-M10*35flZnyc-8.8-480 | 4011010727 | 4 |
| 7 | Battery sys jlgb001hm186k01 | 4130713460-001 | 1 |
| 8 | Bdu harness assy | 27620008001 | 1 |
| 9 | Harness assy between battery boxes | 27620007991 | 1 |
| 10 | Bolt GB5783-M12*45flZnyc-10.9-480 | 4011011410 | 36 |
| 11 | Nut GB6185.1-M12flZnyc-10-480 | 4013010379 | 34 |
