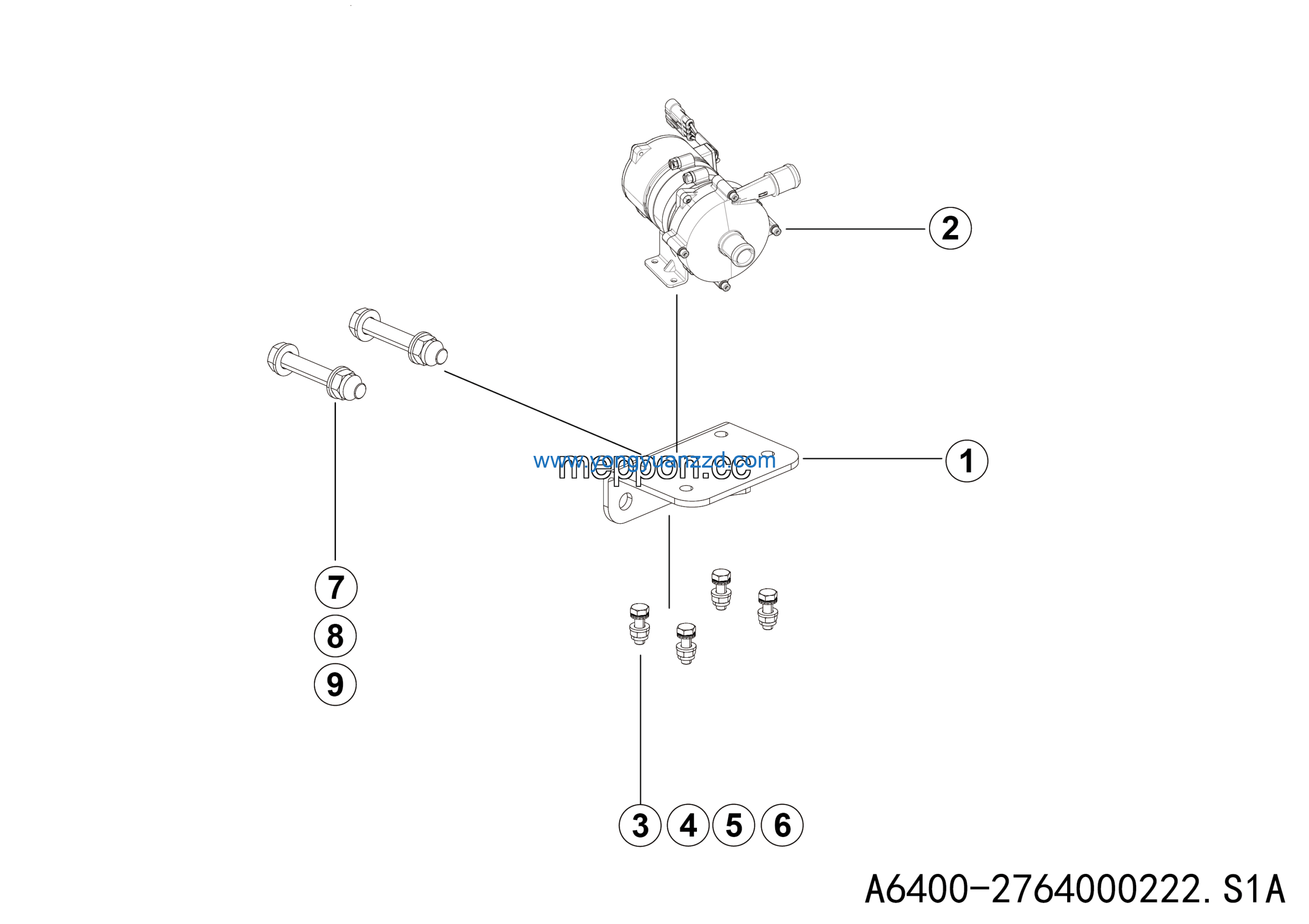

LGMG Off-Highway Dump Truck 2024 – Water pump assy – A6400-2764000222.S1A
Category: 2024 > Off-Highway Dump Truck > RTH136 > R1000Y3A0A106
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket wldmt | 27640002331 | 1 |
| 2 | ELEK water pump 240W | 4190708844 | 1 |
| 3 | Double sack wedge lock washer HF6 | 4190708407 | 4 |
| 4 | Bolt GB5783-M6*20EpZn-8.8 | 4011000101 | 4 |
| 5 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 7 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 8 | Nut GB6185.1-M6EpZn-8 | 4013010117 | 4 |
| 9 | Washer GB97.1-6EpZn-300HV | 4015000207 | 4 |
