LGMG Off-Highway Dump Truck 2024 – Water radiator assy – A0301-2703015799
Category: 2024 > Off-Highway Dump Truck > CMT106F > C1060W4E0A001

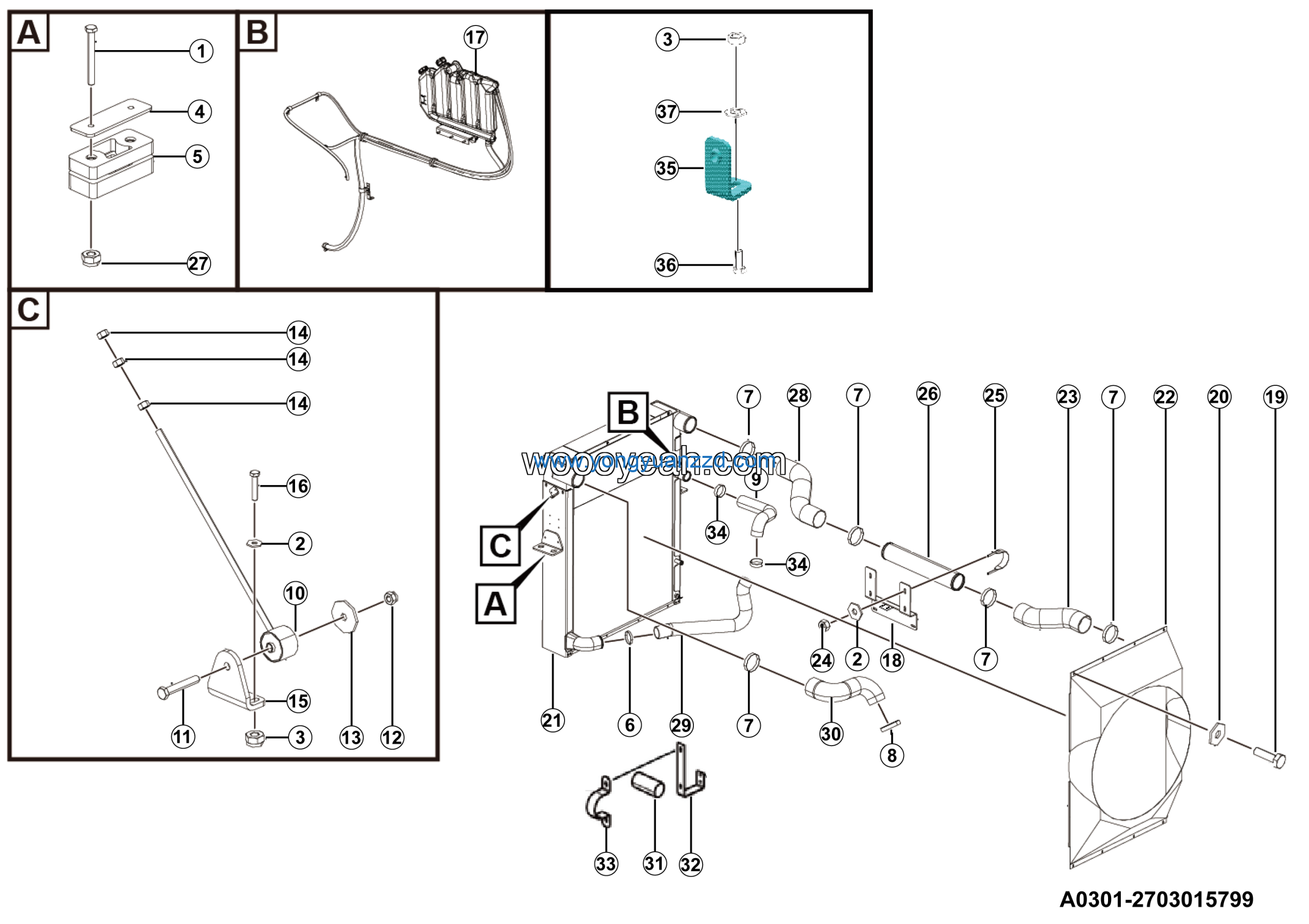

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Radiator bar | 4110001451 | 2 |
| 2 | Bolt GB5782-M14*85EpZn-8.8 | 4011010630 | 2 |
| 3 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 4 | Plate | 27030109731 | 2 |
| 5 | Nut GB6170-M12EpZn-8 | 4013000011 | 6 |
| 6 | Support | 27030109692 | 2 |
| 7 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 4 |
| 8 | Radiator assembly | 27030146021 | 1 |
| 9 | Intermediate cooling steel pipe fixing bracket | 27030158051 | 1 |
| 10 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 3 |
| 11 | Bolt GB5783-M10*90EpZn-8.8 | 4011000956 | 4 |
| 12 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 13 | Radiator assy | 4110702625 | 1 |
| 14 | Wind guide cover DB1227 | 4110703401 | 1 |
| 15 | Pipe | 27030141391 | 1 |
| 16 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 17 | Exhaust pipe strap | 27240102332 | 2 |
| 18 | Inlet pipe, radiator, outlet pipe,compressor to inlet pipe,raidator | 27030134531 | 1 |
| 19 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 20 | Pipe | 27030119481 | 1 |
| 21 | INTLET PIPE OF HEATER 2 | 27030115131 | 1 |
| 22 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 23 | Intercooler air exhaust pipe | 27030158071 | 1 |
| 24 | Cushion | 27160108711 | 1 |
| 25 | SIGN | 27030113871 | 1 |
| 26 | HOOD COVER ASSY | 27030113881 | 1 |
| 27 | Butterfly spring clamp φ57-φ79 | 4190708163 | 2 |
| 28 | Pipe | 27030114751 | 1 |
| 29 | Bolt GB5782-M10*35EpZn-8.8 | 4011010164 | 1 |
| 30 | Washer GB97.1-10EpZn-300HV | 4015000162 | 5 |
| 31 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 9 |
| 32 | Plate | 27030109021 | 2 |
| 33 | Radiator shock absorber assy | 4110001445 | 2 |
| 34 | Butterfly spring clamp φ70-φ92 | 4190708164 | 2 |
| 35 | Butterfly spring clamp φ93-φ118 | 4190708166 | 5 |
| 36 | Butterfly spring clamp φ84-φ105 | 4190708165 | 1 |
| 37 | Pipe | 27030128431 | 1 |
