LGMG Off-Highway Dump Truck 2024 – Water radiator assy – A0301-2703016793.S1A
Category: 2024 > Off-Highway Dump Truck > CMT96H > C096HW3E0A002

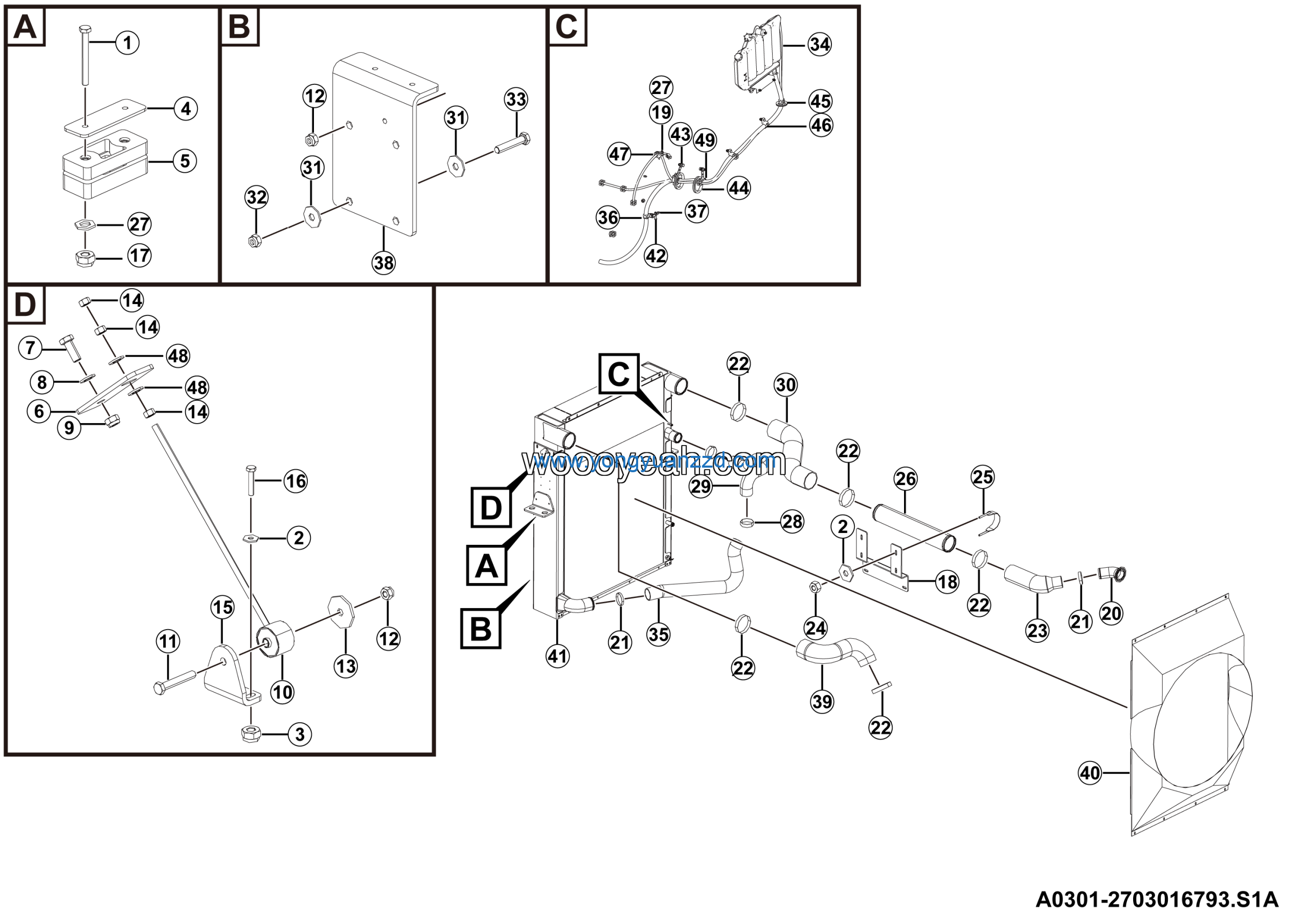

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Radiator bar | 4110001451 | 2 |
| 2 | Bolt GB5782-M14*85EpZn-8.8 | 4011010630 | 2 |
| 3 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 4 | Plate | 27030109731 | 2 |
| 5 | Nut GB6170-M12EpZn-8 | 4013000011 | 6 |
| 6 | Support | 27030109692 | 2 |
| 7 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 4 |
| 8 | Nut GB6185.1-M10EpZn-12 | 4013010567 | 4 |
| 9 | Intermediate cooling steel pipe fixing bracket | 27030158051 | 1 |
| 10 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 1 |
| 11 | Bolt GB5783-M10*90EpZn-12.9 | 4011011013 | 4 |
| 12 | Pipe welding | 27030143121 | 1 |
| 13 | Butterfly spring clamp φ70-φ92 | 4190708164 | 3 |
| 14 | Butterfly spring clamp φ93-φ118 | 4190708166 | 5 |
| 15 | Pipe | 27030143111 | 1 |
| 16 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 17 | Exhaust pipe strap | 27240102332 | 2 |
| 18 | Inlet pipe, radiator, outlet pipe,compressor to inlet pipe,raidator | 27030134531 | 1 |
| 19 | Washer GB97.1-10EpZn-300HV | 4015000162 | 6 |
| 20 | Butterfly spring clamp φ57-φ79 | 4190708163 | 2 |
| 21 | Engine water outlet hose 72*6 | 27030167661 | 1 |
| 22 | Washer GB96.1-10EpZn-300HV | 4015000197 | 12 |
| 23 | Pipe | 27030123841 | 1 |
| 24 | Washer GB97.1-16EpZn-300HV | 4015000181 | 8 |
| 25 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 8 |
| 26 | Bolt GB5783-M16*60EpZn-8.8 | 4011000594 | 8 |
| 27 | Expansion tank assy | 27030167941 | 1 |
| 28 | Pipe | 27030124571 | 1 |
| 29 | Clamp R-D32-M10 | 4190707972 | 1 |
| 30 | Plate | 27010113352 | 4 |
| 31 | Support welding | 27030143141 | 2 |
| 32 | Pipe | 27030123851 | 1 |
| 33 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 10 |
| 34 | Wind guide cover DB1364 | 4110705268 | 1 |
| 35 | Radiator assy M9116124 | 4110705267 | 1 |
| 36 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 1 |
| 37 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 2 |
| 38 | Grommet | 27030161311 | 2 |
| 39 | Grommet 60*3 | 27030161451 | 1 |
| 40 | Cable tie HS-J117 | 4130704969 | 2 |
| 41 | Cable tie 14400342 | 4130703098 | 1 |
| 42 | Washer GB96.1-12EpZn-300HV | 4015000186 | 4 |
| 43 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 44 | Plate | 27030109021 | 2 |
| 45 | Radiator shock absorber assy | 4110001445 | 2 |
| 46 | Plate | 27030143091 | 2 |
| 47 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 2 |
| 48 | Washer GB97.1-12EpZn-300HV | 4015000168 | 6 |
| 49 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 4 |
