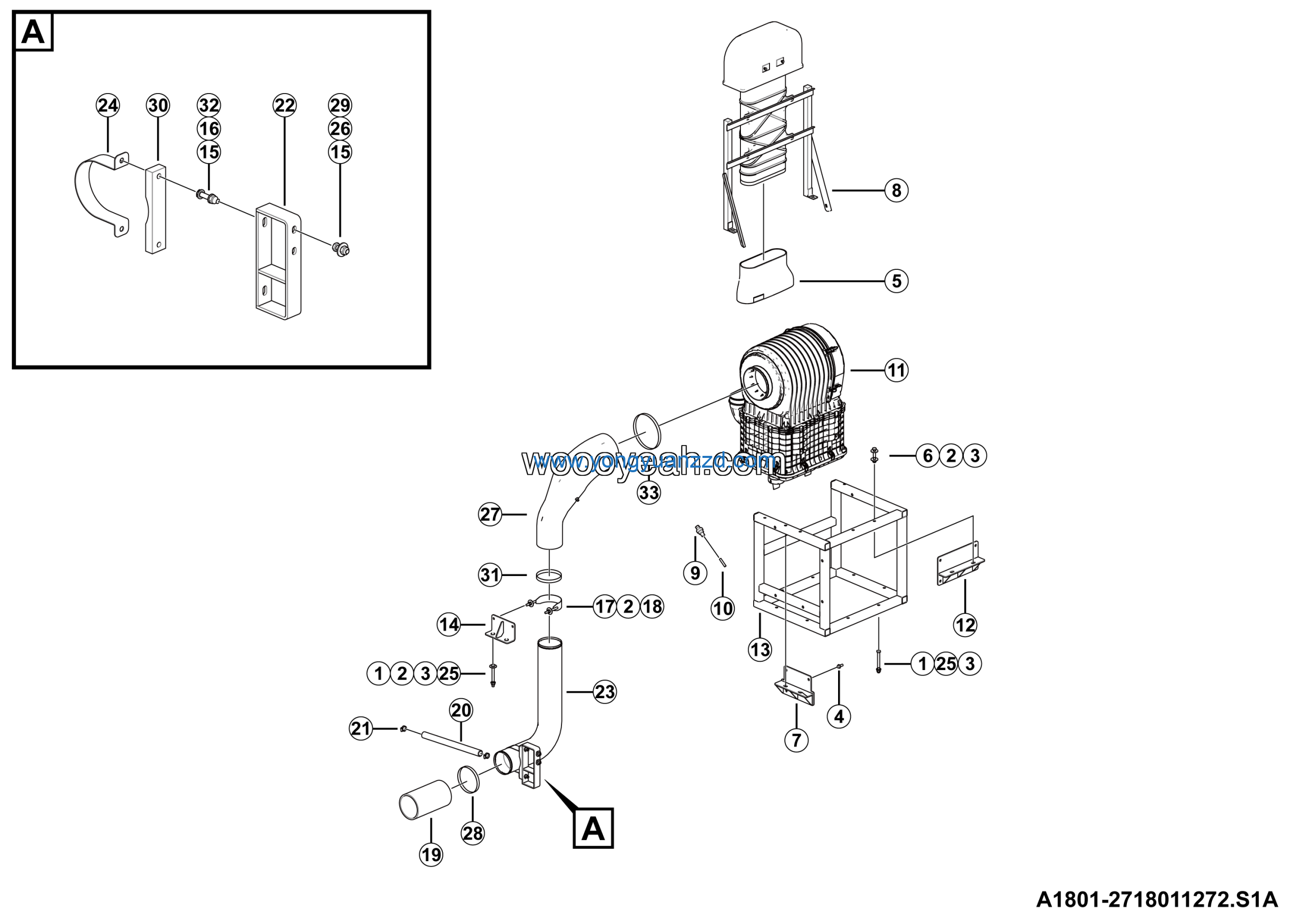

LGMG Road Sprinkler 2024 – Air filter assy – A1801-2718011272.S1A
Category: 2024 > Road Sprinkler > CMS50 > CS500W3E0A010
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | CAB WIRE | 27200109531 | 1 |
| 2 | Air filter assy（Donaldson） | 4190002628 | 1 |
| 3 | Support assembly ⅰ | 27180102961 | 1 |
| 4 | Support | 27180105251 | 1 |
| 5 | Support | 27180108391 | 1 |
| 6 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 7 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 8 | Plate | 27240104852 | 1 |
| 9 | Nut GB6185.1-M10EpZn-10 | 4013010133 | 2 |
| 10 | Pipe | 27180108381 | 1 |
| 11 | Bolt GB5782-M12*120EpZn-8.8 | 4011000054 | 8 |
| 12 | Air compressor intake tube | 27180108961 | 1 |
| 13 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 14 | Air intake pipe bracket wldmt | 27180112711 | 1 |
| 15 | Air filter air outlet pipe | 27180112691 | 1 |
| 16 | Plate | 27180108481 | 1 |
| 17 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 18 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 2 |
| 19 | Pipe | 27180108361 | 1 |
| 20 | Butterfly spring clamp φ133-φ156 | 4190708169 | 2 |
| 21 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 22 | Washer GB96.1-12EpZn-300HV | 4015000186 | 12 |
| 23 | Plate | 27180108471 | 1 |
| 24 | Butterfly spring clamp φ121-φ143 | 4190708168 | 1 |
| 25 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 2 |
| 26 | Butterfly spring clamp φ184-φ206 | 4190708173 | 1 |
| 27 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 12 |
| 28 | Bolt GB16674.1-M10*25EpZn-12.9 | 4011010295 | 8 |
| 29 | Connecting hose | 4190002594 | 1 |
| 30 | Bolt GB5782-M12*75EpZn-8.8 | 4011000874 | 4 |
| 31 | Support assembly ⅱ | 27180103021 | 1 |
| 32 | High level intake assy | 4190002593 | 1 |
| 33 | Vacuum level alarm | 4110001427 | 1 |
