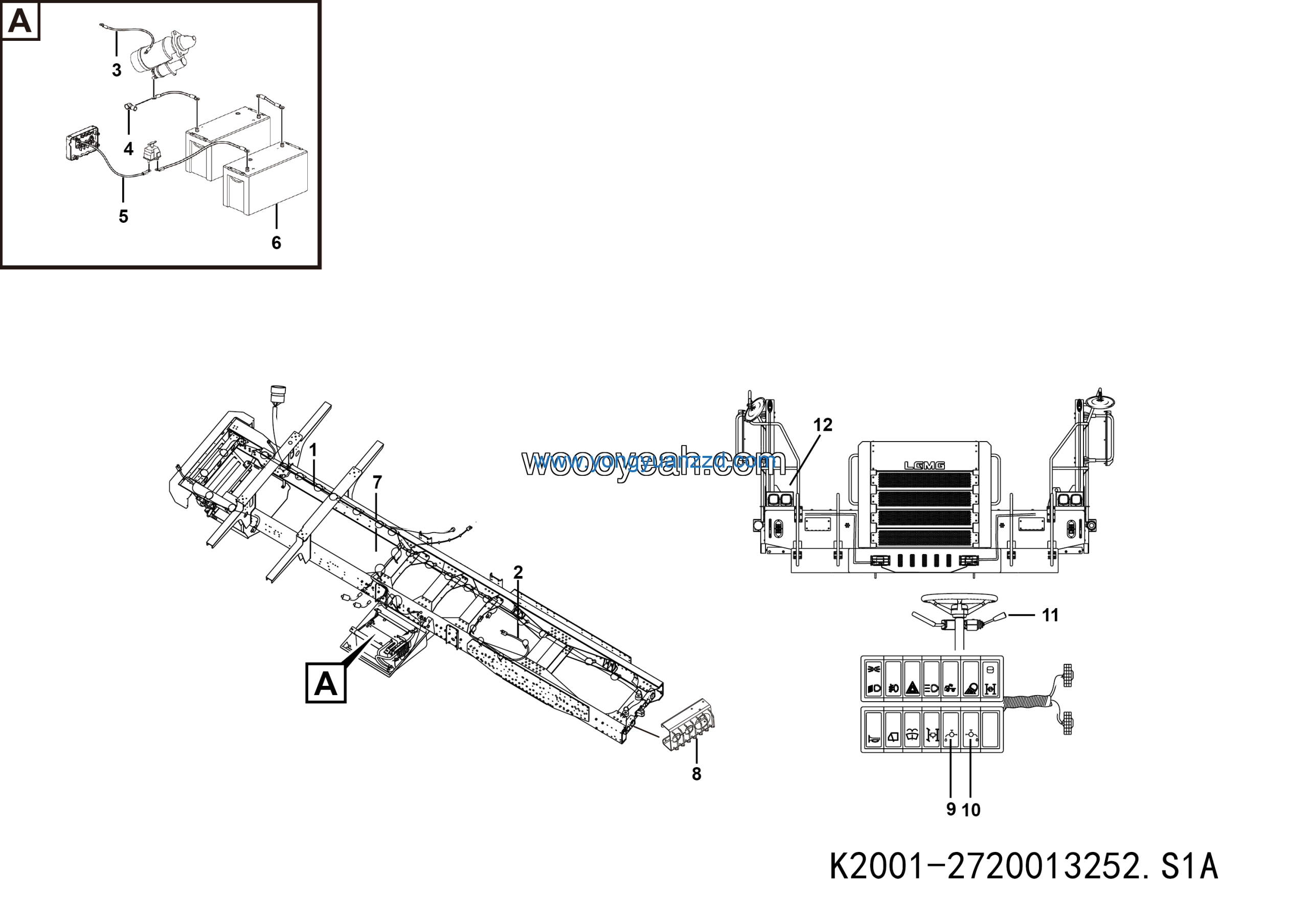

LGMG Road Sprinkler 2024 – Chassis electric system – K2001-2720013252.S1A
Category: 2024 > Road Sprinkler > CMS50 > CS500W3E0A013
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rocker switch JK939C（Spray） | 4130000363 | 2 |
| 2 | Exhaust brake switch | 4130000701 | 1 |
| 3 | Module | 27200107601 | 1 |
| 4 | Frame harness | 27200132511 | 1 |
| 5 | Wire | 27200107611 | 1 |
| 6 | Wire p70*3200 | 27200107891 | 1 |
| 7 | Red battery cable sheath | 26370002451 | 1 |
| 8 | Battery wire p70*3900 | 27200106551 | 1 |
| 9 | Electrical module | 27200107641 | 1 |
| 10 | Frame central electrical module | 27200107561 | 1 |
| 11 | Signal module | 27200132531 | 1 |
| 12 | FR axle spray rocker switch JK939C | 4130000596 | 2 |
