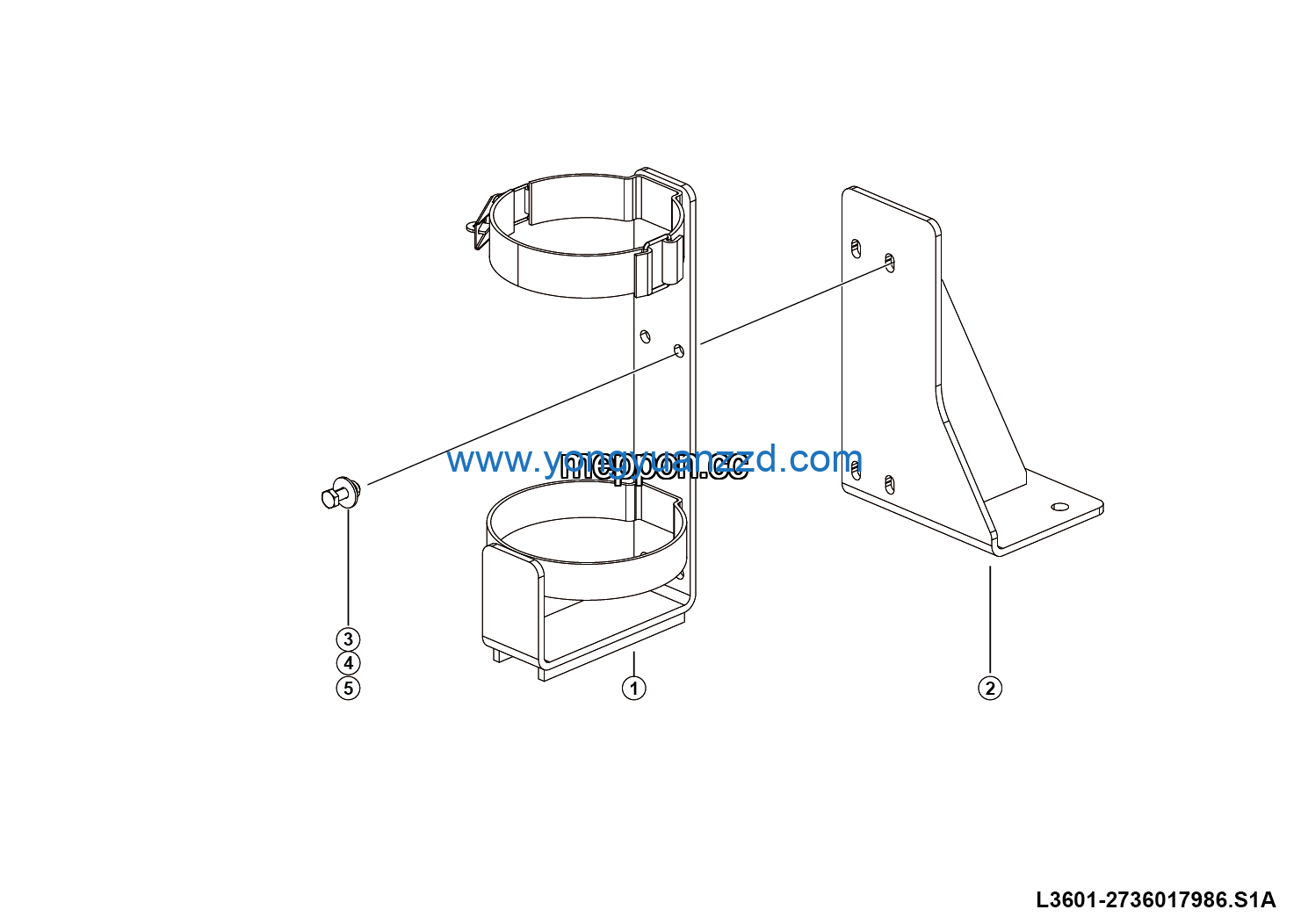

LGMG Road Sprinkler 2024 – Fire extinguisher assy (Opt) – L3601-2736017986.S1A
Category: 2024 > Road Sprinkler > CMS50 > CS500W3E0A010
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Fire extinguisher trestle | 27360132422 | 1 |
| 2 | Fire extinguisher bracket wldmt | 27360179941 | 1 |
| 3 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 4 | Washer GB96.1-8EpZn-300HV | 4015000256 | 4 |
| 5 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
