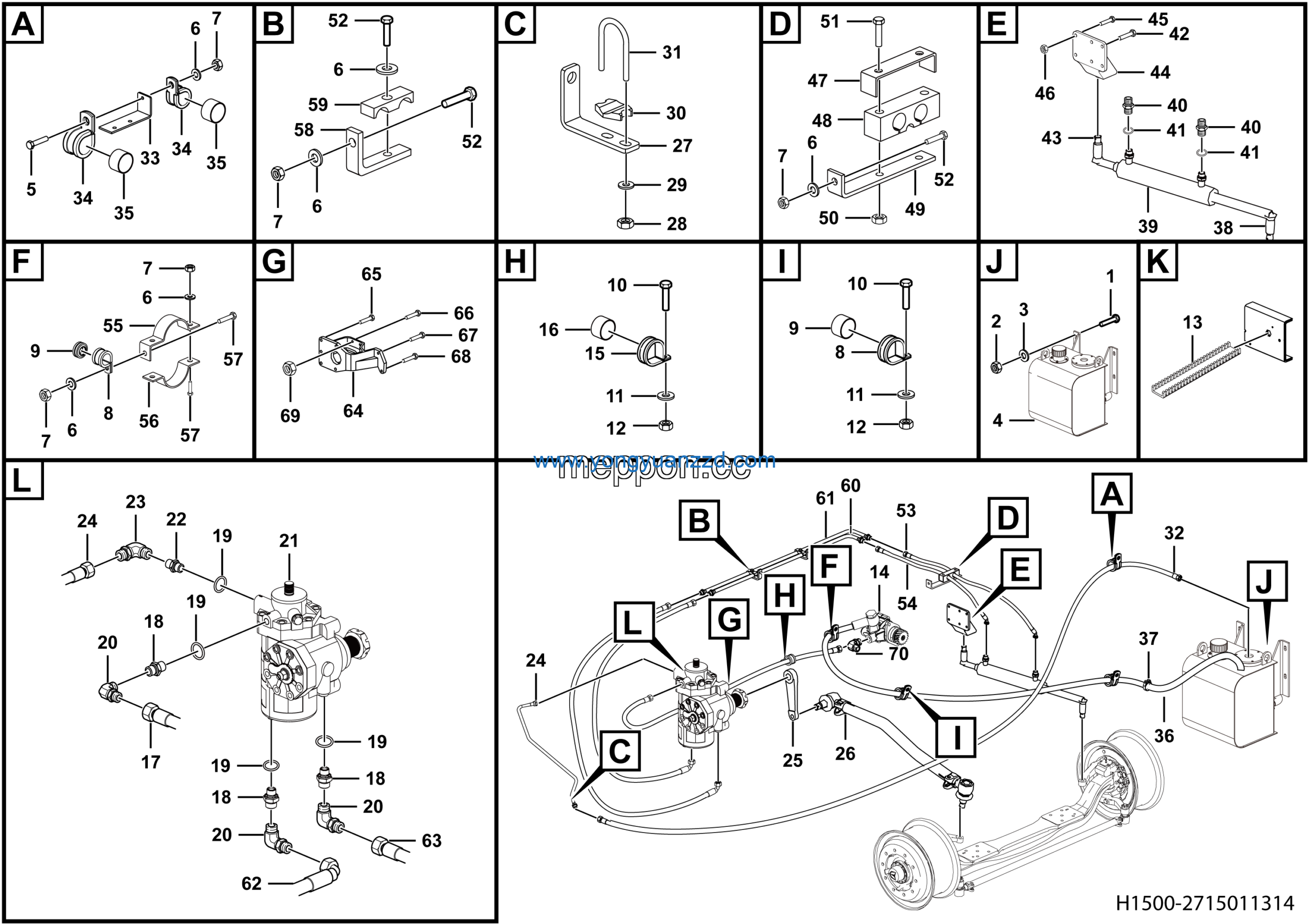

LGMG Road Sprinkler 2024 – Steering assy – H1500-2715011314
Category: 2024 > Road Sprinkler > MS25 > MS250WA27
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 2 |
| 2 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 3 | Nut GB6170-M12EpZn-8 | 4013000011 | 2 |
| 4 | Fagging | 27140108681 | 1 |
| 5 | Pump assembly | 27150106511 | 1 |
| 6 | Clamp | 27150109821 | 1 |
| 7 | Cushion sleeve LGB123-0322 | 4041000876 | 1 |
| 8 | Hose LGB128-006105 | 4041000123 | 1 |
| 9 | Straight joint LGB155-01822 | 4041000822 | 3 |
| 10 | O-ring GB3452.1-19.0*2.65G | 4030000280 | 4 |
| 11 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 4 |
| 12 | Combination joint LGB143-02213 | 4041001156 | 3 |
| 13 | Steering gear NT12590M2 | 4120001099 | 1 |
| 14 | Straight joint | 27150102981 | 1 |
| 15 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 16 | Pipe | 27150107761 | 1 |
| 17 | Pitman arm | 4120001036 | 1 |
| 18 | Rod assembly | 27150107791 | 1 |
| 19 | Plate | 27150107741 | 1 |
| 20 | Nut GB6170-M8EpZn-8 | 4013000033 | 1 |
| 21 | Washer GB97.1-8EpZn-300HV | 4015000072 | 1 |
| 22 | Nut GB6170-M16EpZn-8 | 4013000016 | 4 |
| 23 | Baseplate LGB160-2028 | 4041001240 | 1 |
| 24 | U-bolt LGB159-12028 | 4041001239 | 1 |
| 25 | Hose LGB165-010290 | 4041010412 | 1 |
| 26 | Plate | 27150111291 | 1 |
| 27 | Pipe clamp LGB167-0426 | 4041001169 | 1 |
| 28 | Cushion sleeve LGB123-0426 | 4041001484 | 1 |
| 29 | Hose | 27150110801 | 1 |
| 30 | No longer used | 4030100020 | 2 |
| 31 | RH-Handed ball head | 4120000927 | 1 |
| 32 | Steering cylinder HSGL-50*30*260-485 | 4120001452 | 1 |
| 33 | No longer used | 4015000305 | 4 |
| 34 | JOINT LGB120-02218 | 4041000095 | 2 |
| 35 | O-ring LGB168-11524 | 4041000768 | 2 |
| 36 | Bolt GB5782-M14*50EpZn-10.9 | 4011000988 | 2 |
| 37 | LH-Handed ball head | 4120000926 | 1 |
| 38 | Bracket | 27150107721 | 1 |
| 39 | Bolt GB5782-M14*60EpZn-10.9 | 4011000539 | 4 |
| 40 | Nut GB6185.1-M14EpZn-10 | 4013010135 | 6 |
| 41 | Cover plate | 27150110571 | 1 |
| 42 | Block | 27150108321 | 1 |
| 43 | Plate | 27150109761 | 1 |
| 44 | Hydraulic tank assembly | 27150110781 | 1 |
| 45 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
| 46 | Bolt GB16674.1-M10*55EpZn-8.8 | 4011000473 | 2 |
| 47 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 5 |
| 48 | Hose LGB129-006120 | 4041010115 | 1 |
| 49 | Hose LGB129-006090 | 4041010116 | 1 |
| 50 | Plate | 27150109741 | 1 |
| 51 | Plate | 27150109751 | 1 |
| 52 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 3 |
| 53 | BEND PLATE | 27150106461 | 2 |
| 54 | Hold-down block | 27150106471 | 2 |
| 55 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 56 | STEERING STEEL PIPE B | 27150106441 | 1 |
| 57 | STEERING STEEL PIPE A | 27150106431 | 1 |
| 58 | Hose LGB129-006063 | 4041010122 | 1 |
| 59 | Hose LGB128-006085 | 4041000525 | 1 |
| 60 | Bracket | 27150107801 | 1 |
| 61 | No longer used | 4011010178 | 5 |
| 62 | Bolt GB5783-M16*55EpZn-10.9 | 4011000562 | 3 |
| 63 | Bolt GB5783-M16*65EpZn-10.9 | 4011000665 | 1 |
| 64 | Bolt GB5782-M16*80EpZn-10.9 | 4011000438 | 1 |
| 65 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 5 |
| 66 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
