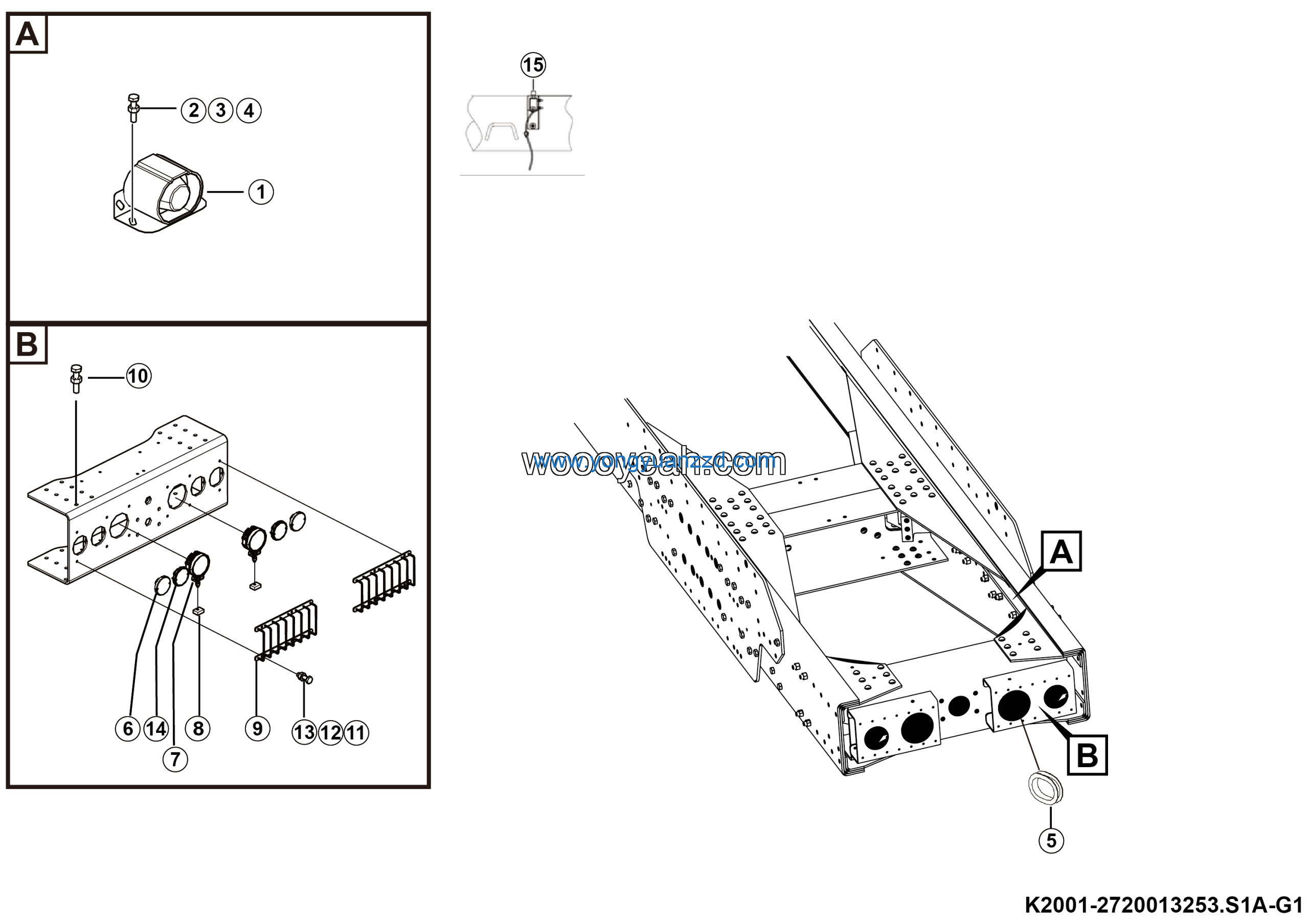

LGMG Road Sprinkler 2024 – Tail signal module – K2001-2720013253.S1A-G1
Category: 2024 > Road Sprinkler > CMS50 > CS500W3E0A011
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 8 |
| 2 | Washer GB97.1-3EpZn-300HV | 4015000200 | 4 |
| 3 | Nut GB6170-M3EpZn-8 | 4013000159 | 4 |
| 4 | Screw GB818-M3*25EpZn-4.8 | 4011010540 | 4 |
| 5 | Brake & position light HY-088Y-5-1LED | 4130000909 | 1 |
| 6 | Cargo lifting switch XJK-010-09 | 4130000641 | 1 |
| 7 | Reverse buzzer DDB101-LG | 4130000294 | 1 |
| 8 | Bolt GB5783-M8*35EpZn-8.8 | 4011000195 | 2 |
| 9 | Washer GB97.1-8EpZn-300HV | 4015000072 | 10 |
| 10 | Nut GB6170-M8EpZn-8 | 4013000033 | 8 |
| 11 | Guard | 27140105031 | 2 |
| 12 | Direction-indicator lamp HY-088Y-5LED | 4130000908 | 2 |
| 13 | White lamp work lamp WK-005 | 4130001150 | 2 |
| 14 | Rubber insert | 27200107141 | 2 |
| 15 | Tail light guard | 27200111471 | 2 |
