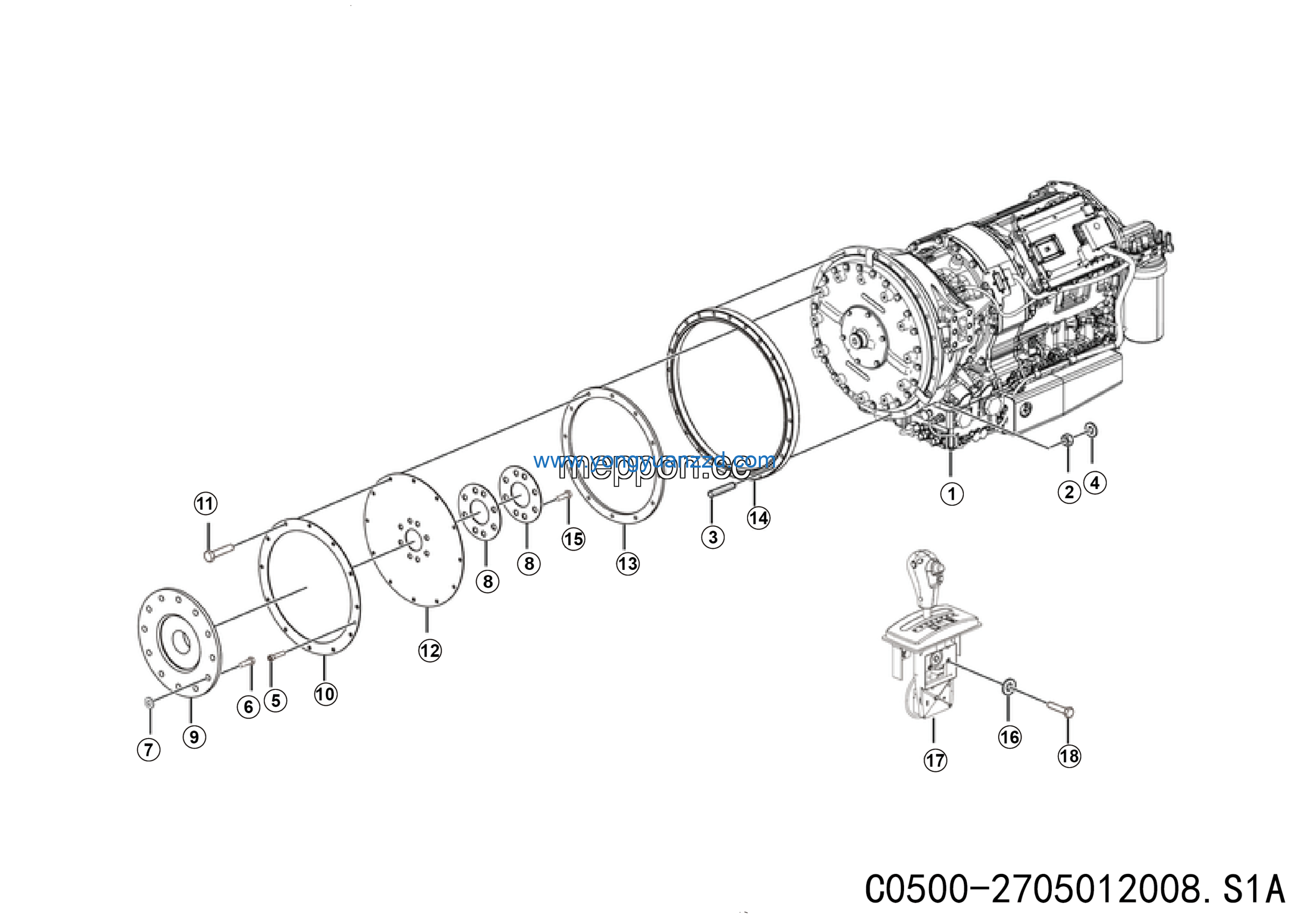

LGMG Road Sprinkler 2024 – Transmission installation – C0500-2705012008.S1A
Category: 2024 > Road Sprinkler > CMS50 > CS500W3E0A010
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Flexible disc large washer | 4110000675 | 1 |
| 2 | Bolt M10*1.5*35 | 4110000684 | 12 |
| 3 | Flexible disc | 4110000674 | 4 |
| 4 | Torque converter adapter | 4110000679 | 1 |
| 5 | Torque converter housing adapter | 4110000680 | 1 |
| 6 | Stud GB900-A M10*60EpZn-8.8 | 4012010111 | 12 |
| 7 | Washer GB97.1-6EpZn-300HV | 4015000207 | 6 |
| 8 | Shift handle | 4110000685 | 1 |
| 9 | Bolt M16*1.5*30 | 4110000678 | 8 |
| 10 | Transmission box assy FC6A250PR T | 4110707599 | 1 |
| 11 | Nut GB6170-M10EpZn-8 | 4013000007 | 12 |
| 12 | Bolt GB5783-M6*20EpZn-8.8 | 4011000101 | 6 |
| 13 | Washer GB97.1-10EpZn-300HV | 4015000162 | 12 |
| 14 | Screw M8*1.25*20 | 4110000683 | 5 |
| 15 | Bolt M12*1.75*30 | 4110000681 | 12 |
| 16 | Washer | 4110000682 | 12 |
| 17 | Flexible disc small washer | 4110000677 | 2 |
| 18 | Flywheel adapter CX31-1501812 | 4110001124 | 1 |
