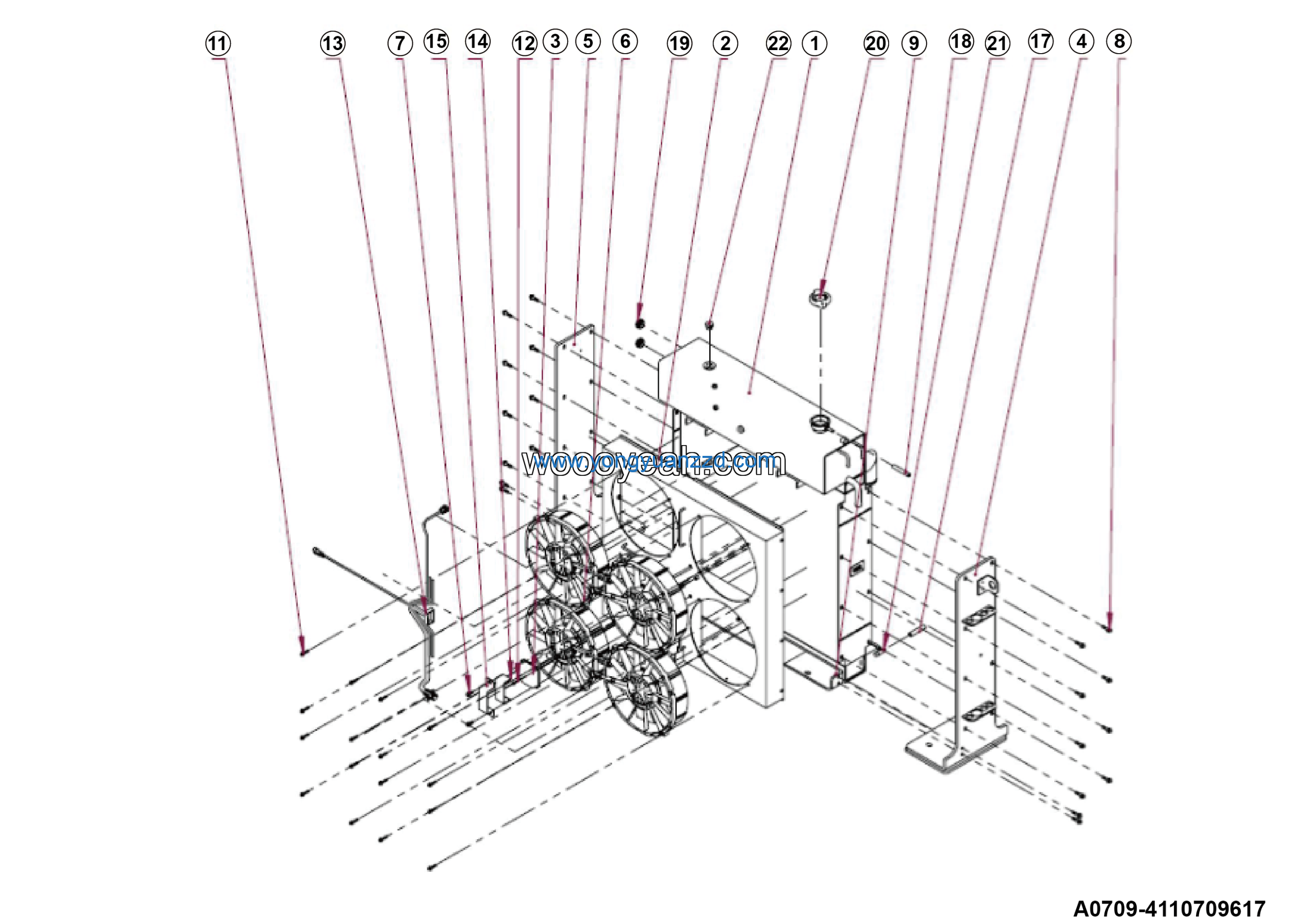

LGMG Road Sprinkler 2026 – Radiator lg03-srq-022 – A0709-4110709617
Category: 2026 > Road Sprinkler > CMS50 > CS500Y3E0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB96.1-8flZnyc-300HV-480 | 4015010289 | 8 |
| 2 | Bolt gb5789-m6*30flznyc-10.9-480 | 4110708466002 | 16 |
| 3 | Bolt gb5789-m5*20flznyc-10.9-480 | 4110709616008 | 2 |
| 4 | Harness | 4110709616004 | 1 |
| 5 | U-shaped shock-absorbing pad jzd-80 | 4190709216212 | 1 |
| 6 | Fixing plate | 4110709616005 | 1 |
| 7 | Temperature sensor | 4110709616010 | 1 |
| 8 | Hose ф8×3 | 4110709616011 | 1 |
| 9 | Breather hose ф8×3 | 4110709616012 | 1 |
| 10 | Liquid level sight glass (m27*1.5) | 4110708192012 | 2 |
| 11 | Radiator | 4110709616001 | 1 |
| 12 | Water filling cap 0.5 | 4190710291004 | 1 |
| 13 | Water drain switch fskg-i | 4190710596018 | 1 |
| 14 | Threaded plug | 4110709616007 | 1 |
| 15 | Fan shroud | 4110709617001 | 1 |
| 16 | Controller | 4110709616003 | 1 |
| 17 | Lh bracket assy 4110706729005 | 4110706729005 | 1 |
| 18 | Rh bracket assy 4110706729006 | 4110706729006 | 1 |
| 19 | Electronic fan | 4110709616006 | 4 |
| 20 | Bolt gb5789-m8*20-10.9 | 4110703141019 | 2 |
| 21 | Bolt gb5789 | 4110706749113 | 20 |
| 22 | Nut 4110706729009 | 4110706729009 | 12 |
