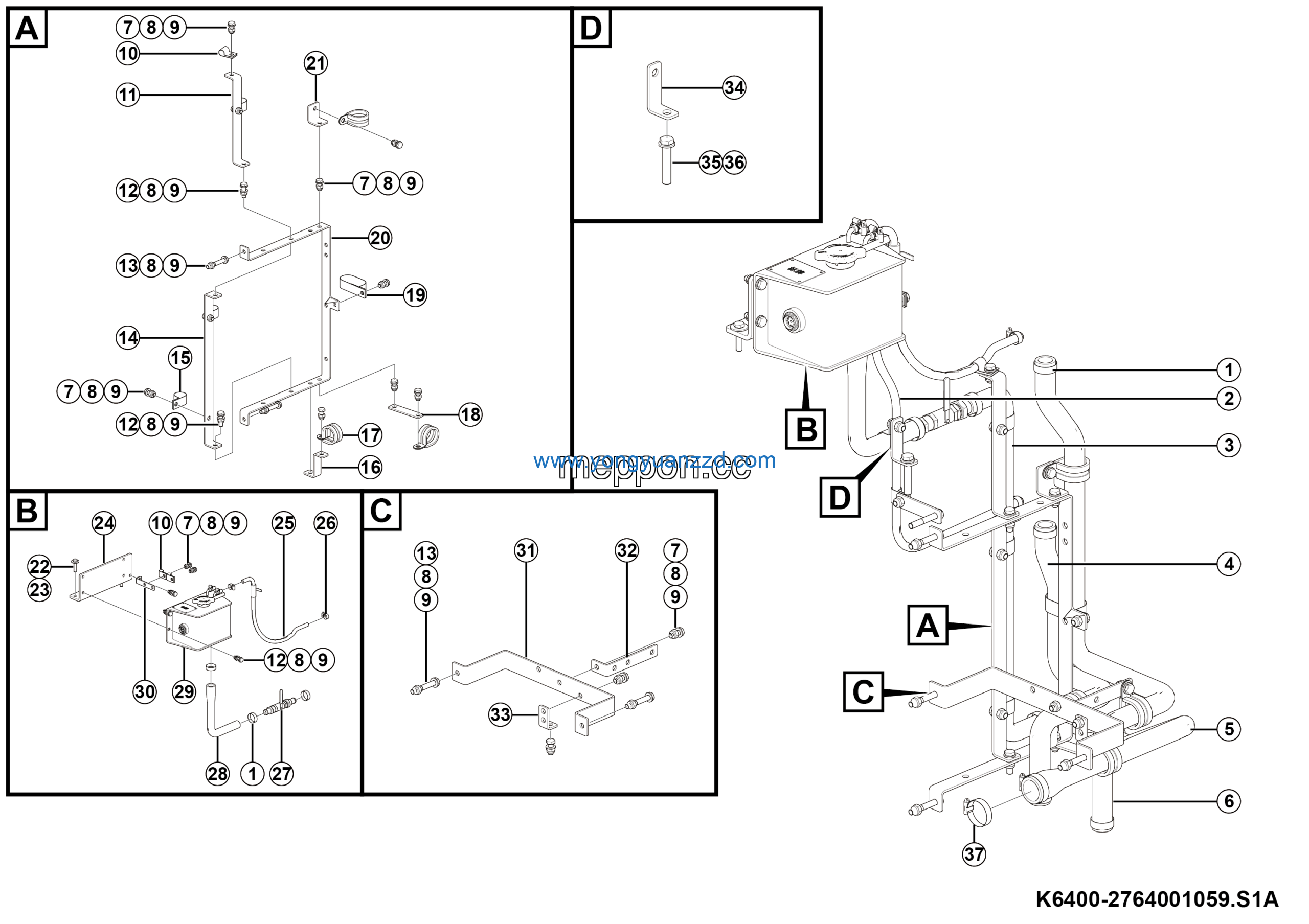

LGMG RTH100 2025 – Battery thermal mgnt external line assy – A6400-2764001059.S1A
Category: 2025 > RTH100 > R1000Y3A0A224
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Clamp R-D16-M10 | 4190707967 | 4 |
| 2 | Bracket 254*38*30 | 27640010751 | 1 |
| 3 | Bolt GB5783-M10*35flZnyc-8.8-480 | 4011010727 | 7 |
| 4 | Bolt GB5782-M10*65flZnyc-8.8-480 | 4011010729 | 5 |
| 5 | Bracket 452*40*30 | 27640010761 | 1 |
| 6 | Clamp R-D32-M10 | 4190707972 | 4 |
| 7 | Bracket 74*73*4 | 27640009951 | 1 |
| 8 | Pipe clamp R-D40-M10 | 4190707973 | 5 |
| 9 | Plate 105*25*4 | 27640002521 | 2 |
| 10 | Double hole R-type clamp R-D40*2-M10 | 4190707989 | 1 |
| 11 | Clamp φ17-φ38 | 4190708280 | 9 |
| 12 | Bracket 530*317*4 | 27640009911 | 1 |
| 13 | Bracket 50*40*4 | 27640009941 | 1 |
| 14 | Bolt GB5783-M10*45flZnyc-8.8-480 | 4011011046 | 2 |
| 15 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 2 |
| 16 | Bracket 290*120*60 | 27030164361 | 1 |
| 17 | Breather hose hbjg08201 | 4190711879 | 1 |
| 18 | Hose clamp JB8870-D20 | 4017000010 | 4 |
| 19 | Valve assembly | 27210103841 | 1 |
| 20 | Hose 25-20*5 | 27640010721 | 1 |
| 21 | Water tank 2.6L | 4190710291 | 1 |
| 22 | Exhaust pipe hbjg08202 | 4190711878 | 1 |
| 23 | Bracket 105*30*4 | 27640003371 | 1 |
| 24 | Bracket 390*119*40 | 27640009931 | 1 |
| 25 | Bracket 147*44*4 | 27640009961 | 1 |
| 26 | Bracket 50*30*25 | 27640000661 | 1 |
| 27 | Bracket 79*43*25 | 27640010741 | 1 |
| 28 | BOLT | 4011011213 | 1 |
| 29 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 1 |
| 30 | Hose clamp JB8870-D50 | 4017000009 | 1 |
| 31 | Hose 25*5 | 27640010731 | 1 |
| 32 | Hose 25*5 | 27640010601 | 1 |
| 33 | Hose 38-25*5 | 27640010621 | 1 |
