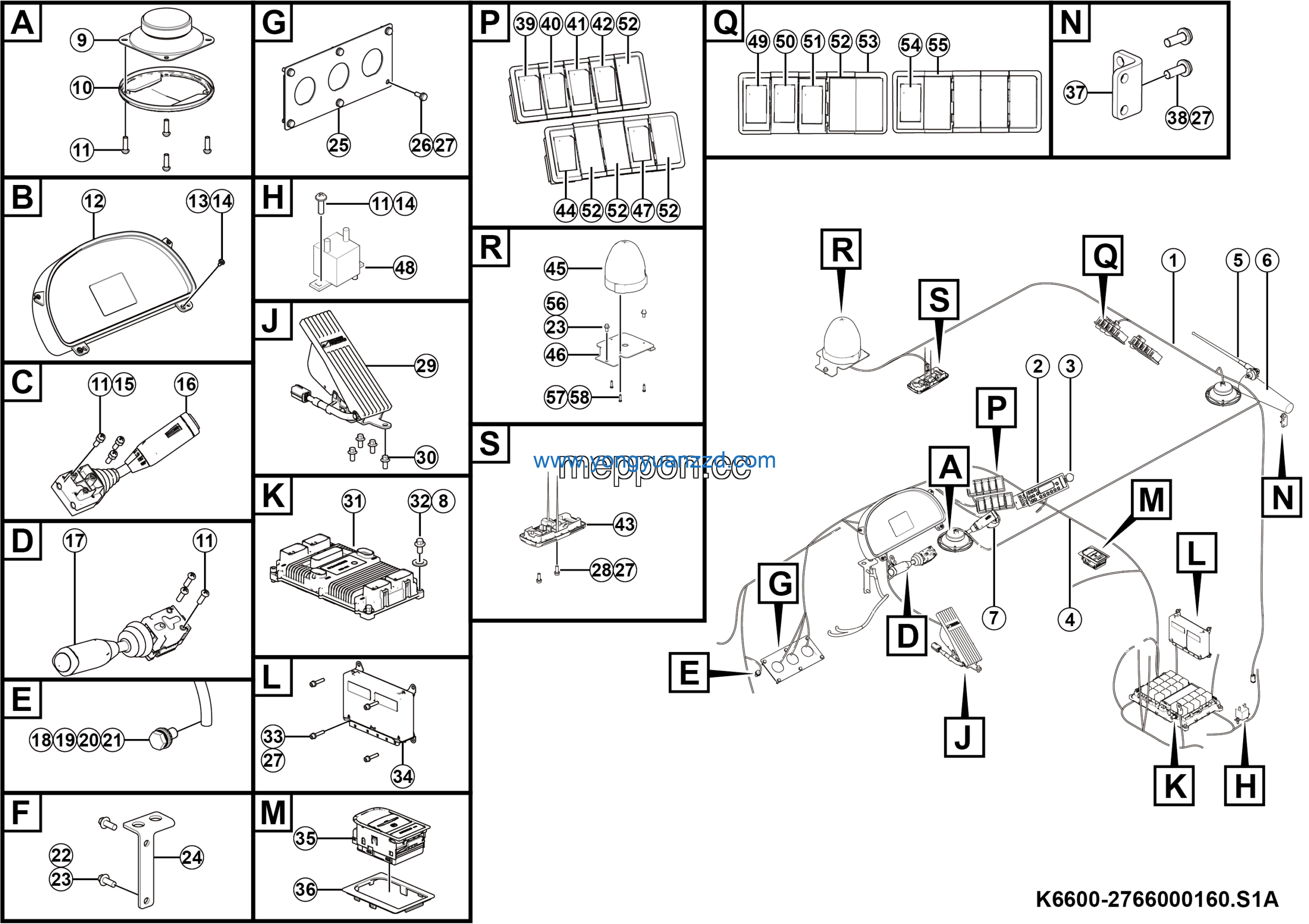

LGMG RTH100 2025 – Cab elec sys – K6600-2766000160.S1A
Category: 2025 > RTH100 > R1000Y3A0A233
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Net cover TH103X0307 | 4130000301 | 2 |
| 2 | Screw GB818-M6*20EpZn-4.8 | 4014000040 | 16 |
| 3 | LCD panel 12633 | 4130712633 | 1 |
| 4 | Screw GB846-ST4.8*16-C-H | 4014000071 | 4 |
| 5 | Washer GB96.1-4EpZn-300HV | 4015000302 | 4 |
| 6 | Nut GB6170-M6EpZn-8 | 4013000028 | 3 |
| 7 | Slow-speed handle CS-102628-1 | 4130705040 | 1 |
| 8 | Combination switch CS-102621 | 4130001174 | 1 |
| 9 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 3 |
| 10 | Double sack wedge lock washer HF10 | 4190708409 | 3 |
| 11 | Ceiling harness | 27660001621 | 1 |
| 12 | Washer GB97.1-10EpZn-300HV | 4015000162 | 3 |
| 13 | Washer GB862.2-10-65Mn | 4015010586 | 3 |
| 14 | Bolt GB16674.1-M8*20flZnyc-8.8-480 | 4011010966 | 2 |
| 15 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 4 |
| 16 | Bracket 120*65*25 | 4130713424 | 1 |
| 17 | Plate (itt cable passed through) | 27130146721 | 1 |
| 18 | Bolt GB5783-M6*20EpZn-8.8 | 4011000101 | 6 |
| 19 | Washer GB97.1-6EpZn-300HV | 4015000207 | 14 |
| 20 | Screw GB70.1-M6*16flZnyc-8.8-480 | 4014010389 | 2 |
| 21 | ELEK accelerator pedal 403269 | 4130701363 | 1 |
| 22 | Radio SL-630E | 4130705265 | 1 |
| 23 | Bolt GB16674.1-M8*16EpZn-8.8 | 4011000461 | 4 |
| 24 | Fuse case | 4130713161 | 1 |
| 25 | Bolt GB16674.1-M6*20EpZn-8.8 | 4011000154 | 4 |
| 26 | Screw GB70.1-M6*12EpZn-8.8 | 4014000120 | 4 |
| 27 | Ebs controller km36352010040 | 4120719565 | 1 |
| 28 | EPB Switch 35082000110 | 4120709610 | 1 |
| 29 | EPB Switch connections 35082000023 | 4120709611 | 1 |
| 30 | Bracket 30*30*5 | 27130154421 | 1 |
| 31 | Bolt GB5783-M6*16EpZn-8.8 | 4011000289 | 2 |
| 32 | Work/position light rocker switch JK939C | 4130000318 | 1 |
| 33 | Socket 125000222 | 4130712756 | 1 |
| 34 | FR fog lamp rocker switch JK939C | 4130000314 | 1 |
| 35 | Central alarm rocker switch JK939C | 4130000320 | 1 |
| 36 | RR working lamp rocker switch JK939C | 4130000480 | 1 |
| 37 | Indoor lamp 24-6212-24V | 4190703968 | 1 |
| 38 | Wiper washing rocker switch JK939C | 4130000819 | 1 |
| 39 | Large round warning lamp yqdq-js-03-02 | 4130712774 | 1 |
| 40 | Support | 27130114201 | 1 |
| 41 | Emergency steering rocker switch JK939C | 4130701384 | 1 |
| 42 | Contactor | 4130701341 | 1 |
| 43 | Warning ceiling lamp rocker switchJK939C | 4130000667 | 1 |
| 44 | Cab harness | 27660001611 | 1 |
| 45 | Horn rocker switch JK939C | 4130000315 | 1 |
| 46 | Rocker switch JK939C（Differential） | 4130000317 | 1 |
| 47 | Cover plate | 4130000328 | 10 |
| 48 | Side single Frame JK931-01CKJ | 4130000463 | 8 |
| 49 | Extended range unit start rocker switch | 4130705549 | 1 |
| 50 | Mid single frame JK931-01ZKJ | 4130000467 | 12 |
| 51 | Bolt GB16674.1-M8*16flZnyc-8.8-480 | 4011010964 | 2 |
| 52 | Screw GB845-ST4.2*13-C-H | 4014000068 | 3 |
| 53 | Washer GB97.1-4EpZn-300HV | 4015000135 | 3 |
| 54 | Telescopic antenna JS3480 | 4130000826 | 1 |
| 55 | Dual Tone Air Horn 37980020280 | 4130706178 | 1 |
| 56 | Lgnition lock CS-108255 | 4130705464 | 1 |
| 57 | Washer GB96.1-6EpZn-300HV | 4015000198 | 4 |
| 58 | Speaker GS1033 | 4130001111 | 2 |
