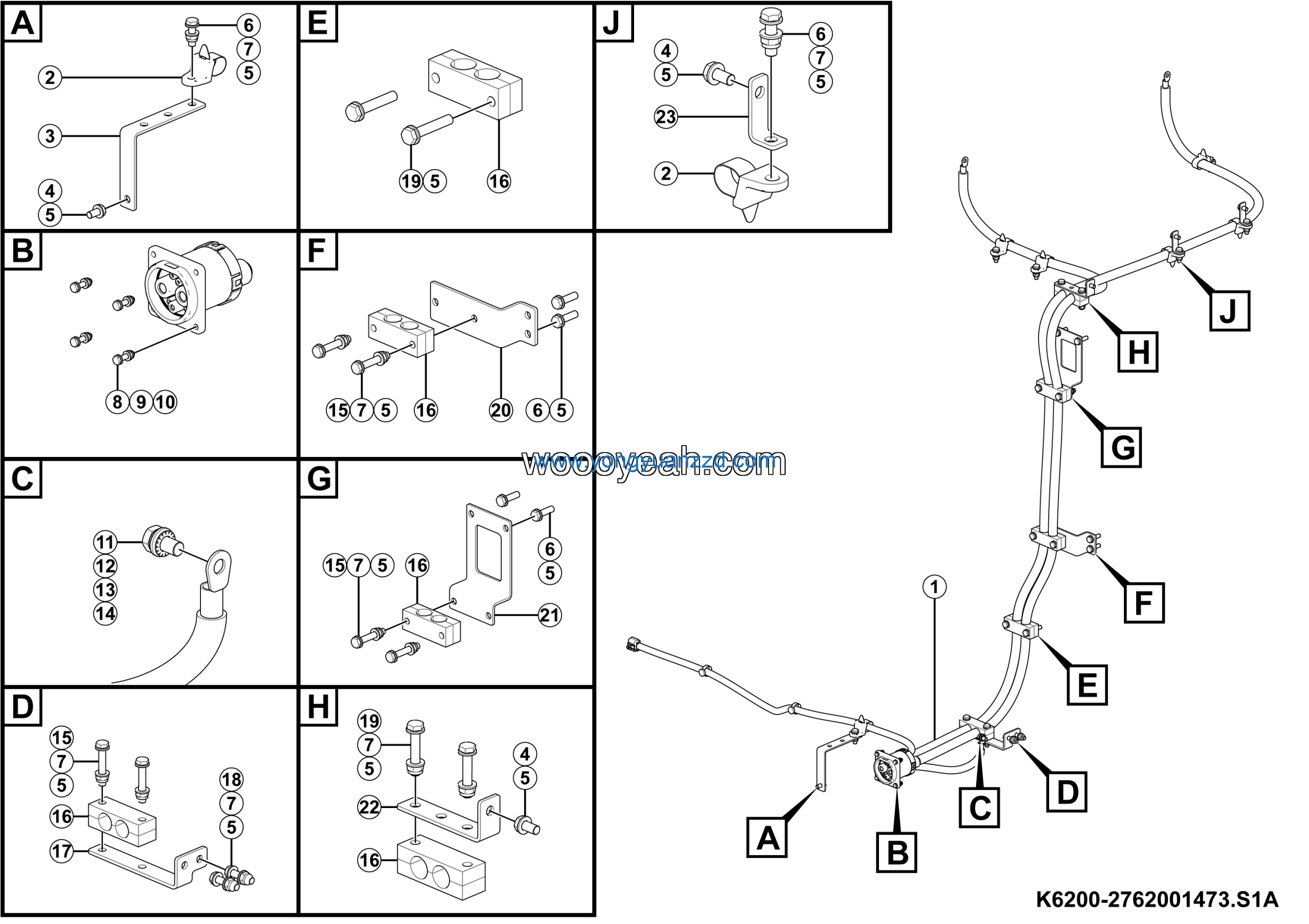

LGMG RTH100 2025 – Charging socket assy – K6200-2762001473.S1A
Category: 2025 > RTH100 > R1000Y3A0A230
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-6flZnyc-300HV-480 | 4015010284 | 8 |
| 2 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 1 |
| 3 | Double sack wedge lock washer HF10 | 4190708409 | 1 |
| 4 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 5 | Washer GB862.2-10-65Mn | 4015010586 | 1 |
| 6 | Bolt GB5783-M10*60flZnyc-8.8-480 | 4011010977 | 6 |
| 7 | Tube bank plate 100*35*17 | 27620003921 | 10 |
| 8 | L-bracket 180*50*60 | 27620012641 | 1 |
| 9 | Bolt GB5783-M10*40flZnyc-8.8-480 | 4011010706 | 2 |
| 10 | Bolt GB5783-M10*55flZnyc-8.8-480 | 4011010952 | 4 |
| 11 | Dc charging socket 250a (5658) | 4130715658 | 1 |
| 12 | Bracket 175*60*45 | 27620012621 | 1 |
| 13 | Bracket 175*100*44 | 27620012631 | 1 |
| 14 | L-bracket 130*50*30 | 27620004491 | 1 |
| 15 | L-bracket 50*30*20 | 27620005021 | 2 |
| 16 | Cable tie 14400342 | 4130703098 | 6 |
| 17 | L-bracket 150*125*30 | 27620008631 | 1 |
| 18 | Bolt GB5783-M10*20flZnyc-8.8-480 | 4011010748 | 4 |
| 19 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 42 |
| 20 | Bolt GB5783-M10*35flZnyc-8.8-480 | 4011010727 | 10 |
| 21 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 16 |
| 22 | Bolt GB5783-M6*25flZnyc-8.8-480 | 4011010731 | 4 |
| 23 | Nut GB6185.1-M6flZnyc-8-480 | 4013010414 | 4 |
