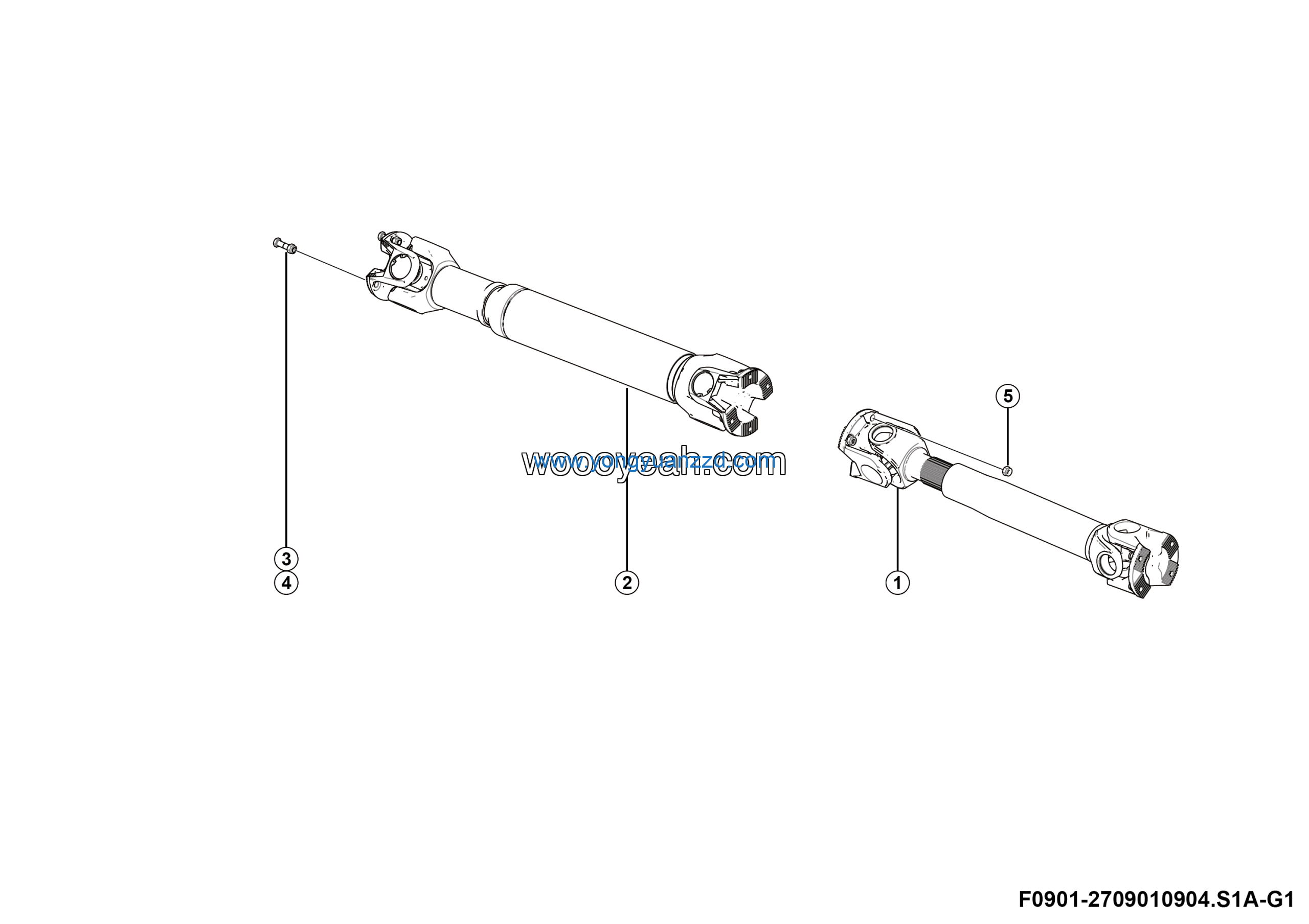

LGMG RTH100 2025 – Drive shafts installation – F0901-2709010904.S1A
Category: 2025 > RTH100 > R1000Y3A0A224
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | RR trabsmission shaft-LG82-HCDZ-945 | 4110705663 | 1 |
| 2 | Transmission shaft assy QCDZ-LG09-1200 | 4110706445 | 1 |
| 3 | Bolt GB5785-M14*1.5*55flZnyc-12.9-480 | 4011011613 | 4 |
| 4 | Nut GB6185.2-M14*1.5-12 | 4013010266 | 4 |
| 5 | Nut GB6185.2-M14*1.5flZnyc-10-480 | 4013010538 | 12 |
