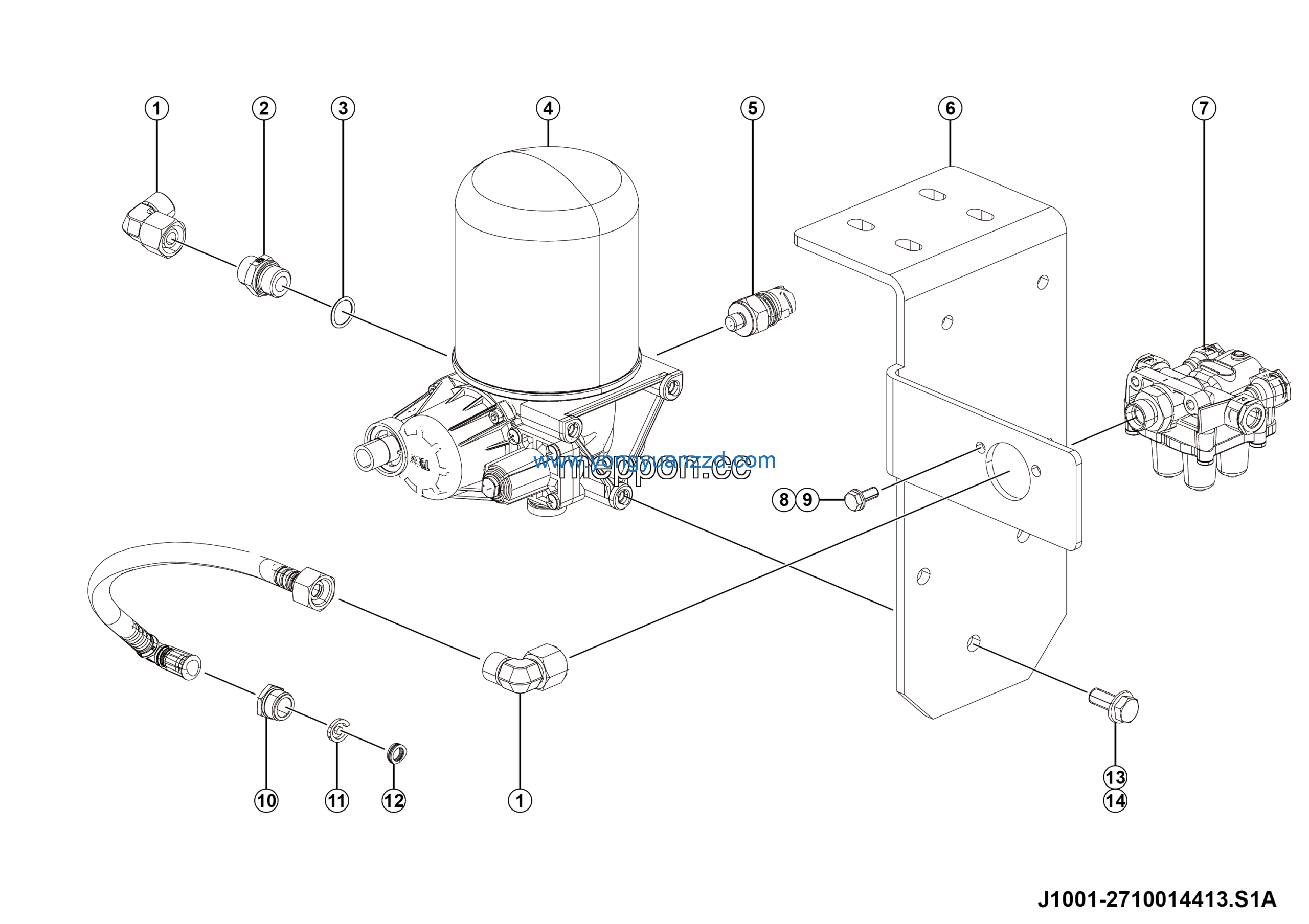

LGMG RTH100 2025 – Dryer installation – J1001-2710014413.S1A
Category: 2025 > RTH100 > R1000Y3A0A222
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut seat NG12 | 4120000190 | 1 |
| 2 | Clip spring NG12 | 4120000192 | 1 |
| 3 | Elastic element NG12 | 4120000193 | 1 |
| 4 | Bolt GB5786-M12*1.5*30flZnyc-12.9-480 | 4011010566 | 3 |
| 5 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 3 |
| 6 | Combination joint LGB143-02213 | 4041001156 | 2 |
| 7 | Straight joint LGB177-02222 | 4041010528 | 1 |
| 8 | O-ring LGB168-11924 | 4041000771 | 1 |
| 9 | Multifunctional dryer 35110085540 | 4120711952 | 1 |
| 10 | Differential pressure sensor 37570060580 | 4120711953 | 1 |
| 11 | Bent plate 368*320*190 | 27100144141 | 1 |
| 12 | Protection valve 35150083730 | 4120707080 | 1 |
| 13 | Bolt GB5783-M8*20flznyc-8.8-480 | 4011010711 | 2 |
| 14 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 2 |
