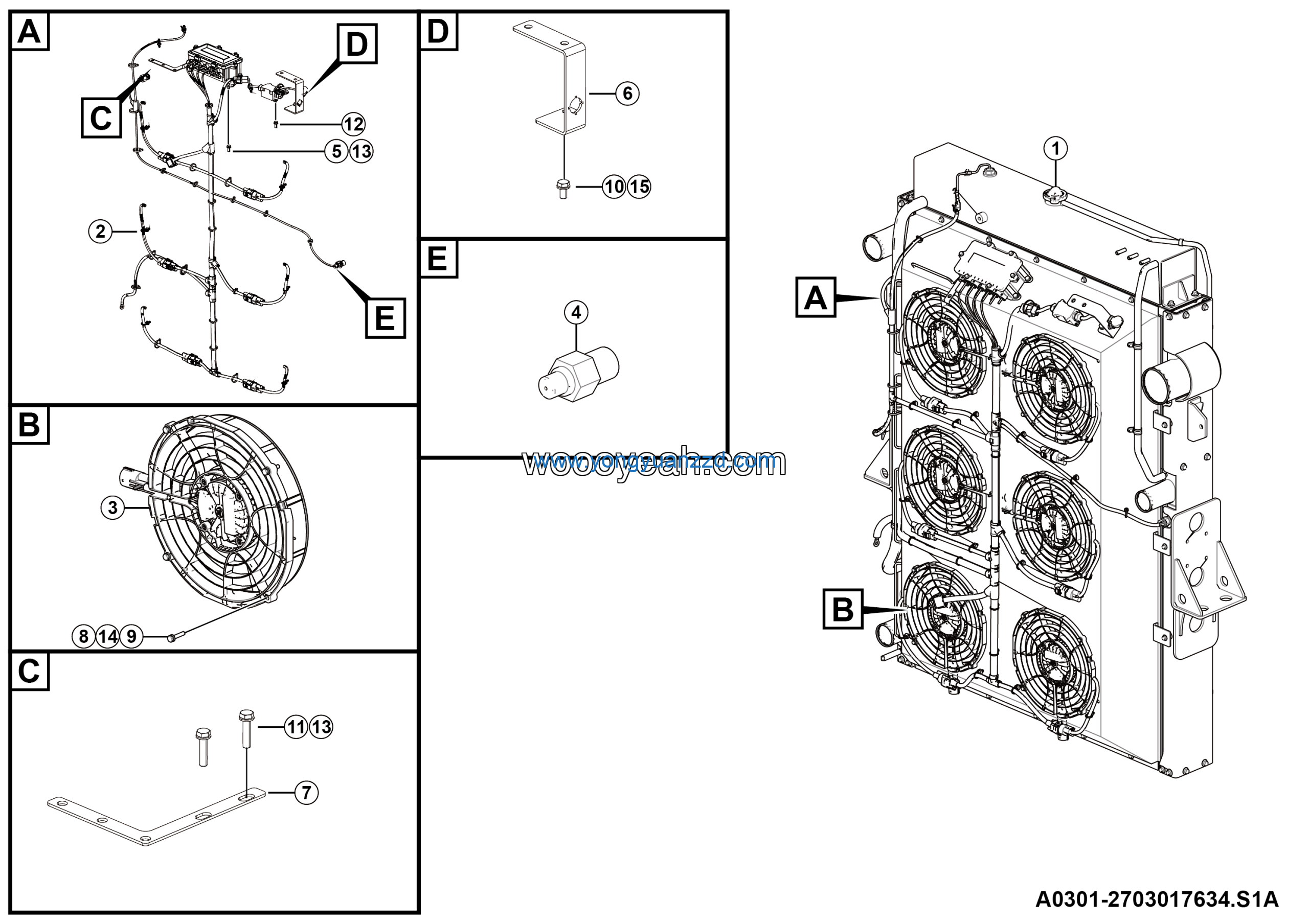

LGMG RTH100 2025 – Engine cooling delivered assembled – A0301-2703017634.S1A
Category: 2025 > RTH100 > R1000Y3A0A233
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*20flZnyc-8.8-480 | 4011010748 | 2 |
| 2 | Bolt GB5783-M8*35flZnyc-8.8-480 | 4011010972 | 4 |
| 3 | Screw GB818-M4*16EpZn-4.8 | 4014000087 | 2 |
| 4 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 5 |
| 5 | Washer GB97.1-6flZnyc-300HV-480 | 4015010284 | 24 |
| 6 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
| 7 | Radiator lg03-srq-019 | 4110709055 | 1 |
| 8 | Engine thermal management harness xs05-1009 | 4130714575 | 1 |
| 9 | Brushless fan f82-24bl8516-19s | 4110708133 | 6 |
| 10 | Water temp sensor 1021000271 | 4190709214 | 2 |
| 11 | Bolt GB5783-M8*20flznyc-8.8-480 | 4011010711 | 1 |
| 12 | Bracket 140*120*70 | 27030176361 | 1 |
| 13 | Bracket 183*150*3 | 27650007551 | 1 |
| 14 | Washer GB93-6flZnyc-65Mn-480 | 4015010375 | 24 |
| 15 | Bolt GB5783-M6*30flznyc-8.8-480 | 4011010717 | 24 |
