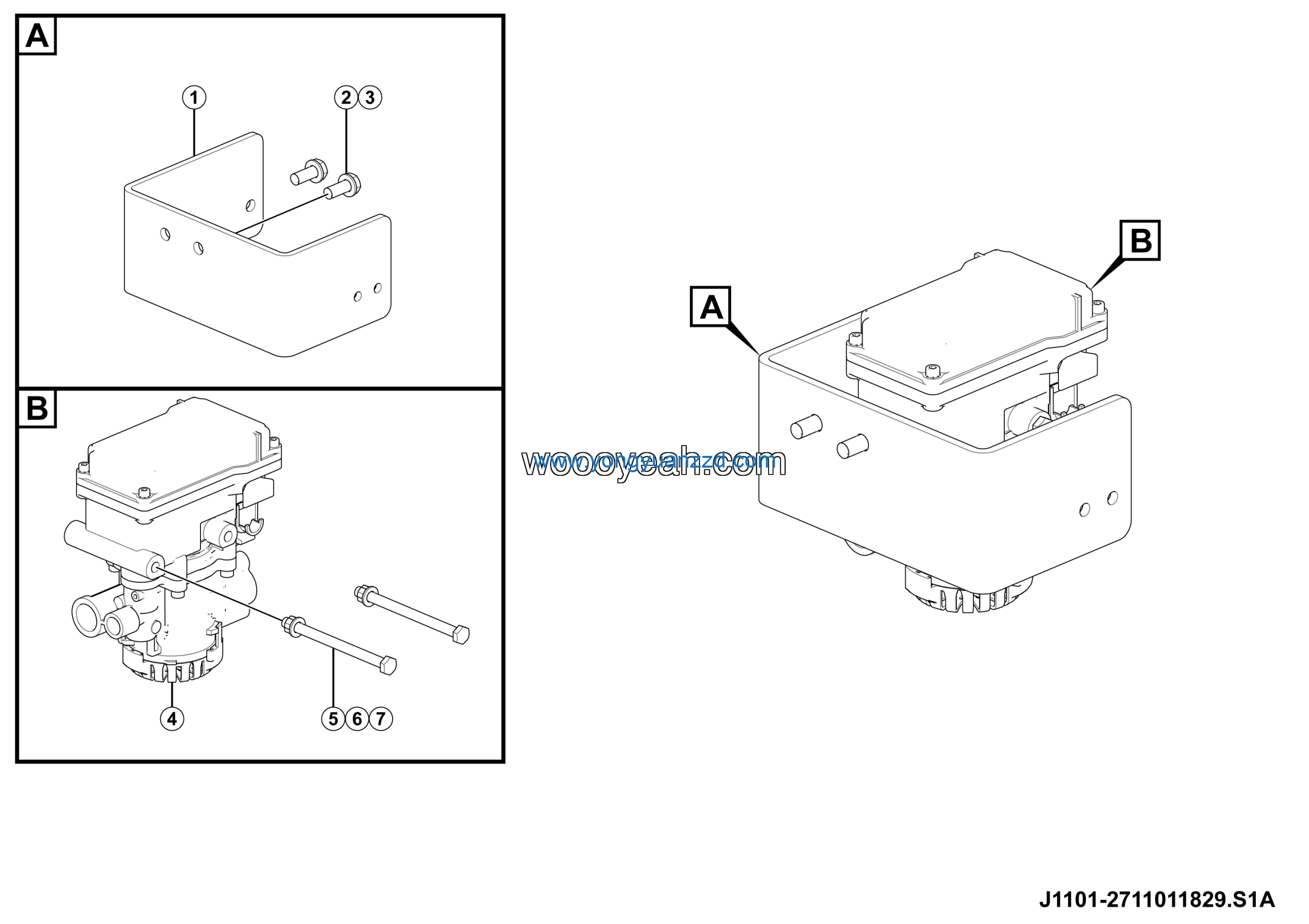

LGMG RTH100 2025 – Epb module assy – J1101-2711011829.S1A
Category: 2025 > RTH100 > R1000Y3A0A233
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Epb bracket | 27110118301 | 1 |
| 2 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 2 |
| 3 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
| 4 | EPB module 35083981860 | 4120712795 | 1 |
| 5 | Bolt GB5782-M8*110flZnyc-8.8-480 | 4011011168 | 2 |
| 6 | Nut GB6170-M8flznyc-8-480 | 4013010291 | 2 |
| 7 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 2 |
