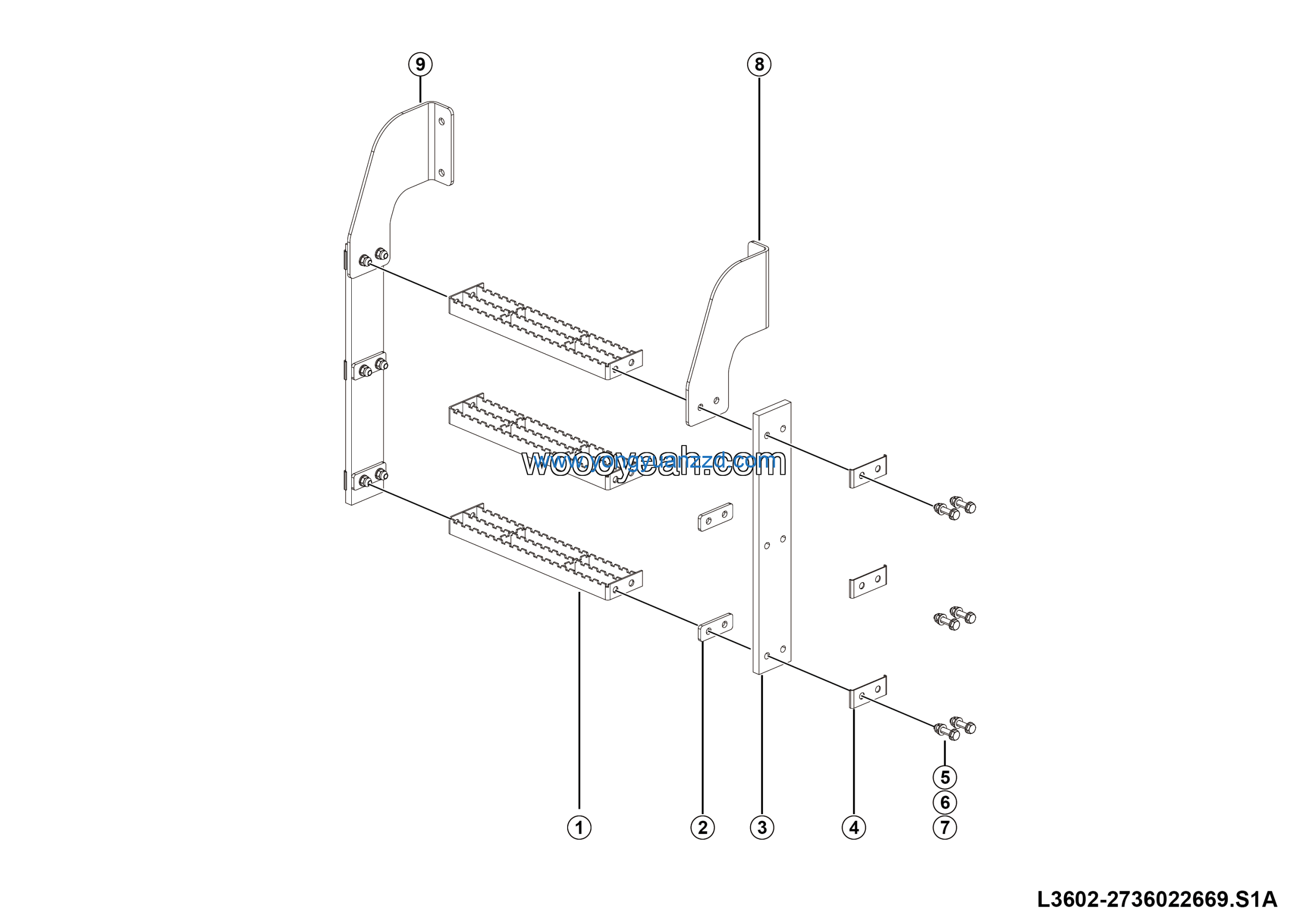

LGMG RTH100 2025 – Flexible ladder assy – L3602-2736022669.S1A
Category: 2025 > RTH100 > R1000Y3A0A235
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Strengthening the welding of the pedal surround | 27360165921 | 3 |
| 2 | Plate80*30*6 | 27360161991 | 4 |
| 3 | Canvas belt 505*80*15 | 27360220811 | 2 |
| 4 | Plate | 27360101631 | 6 |
| 5 | Bolt GB5783-M10*45flZnyc-8.8-480 | 4011011046 | 12 |
| 6 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 24 |
| 7 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 12 |
| 8 | Rh mounting plate | 27360226711 | 1 |
| 9 | Lh mounting plate | 27360226701 | 1 |
