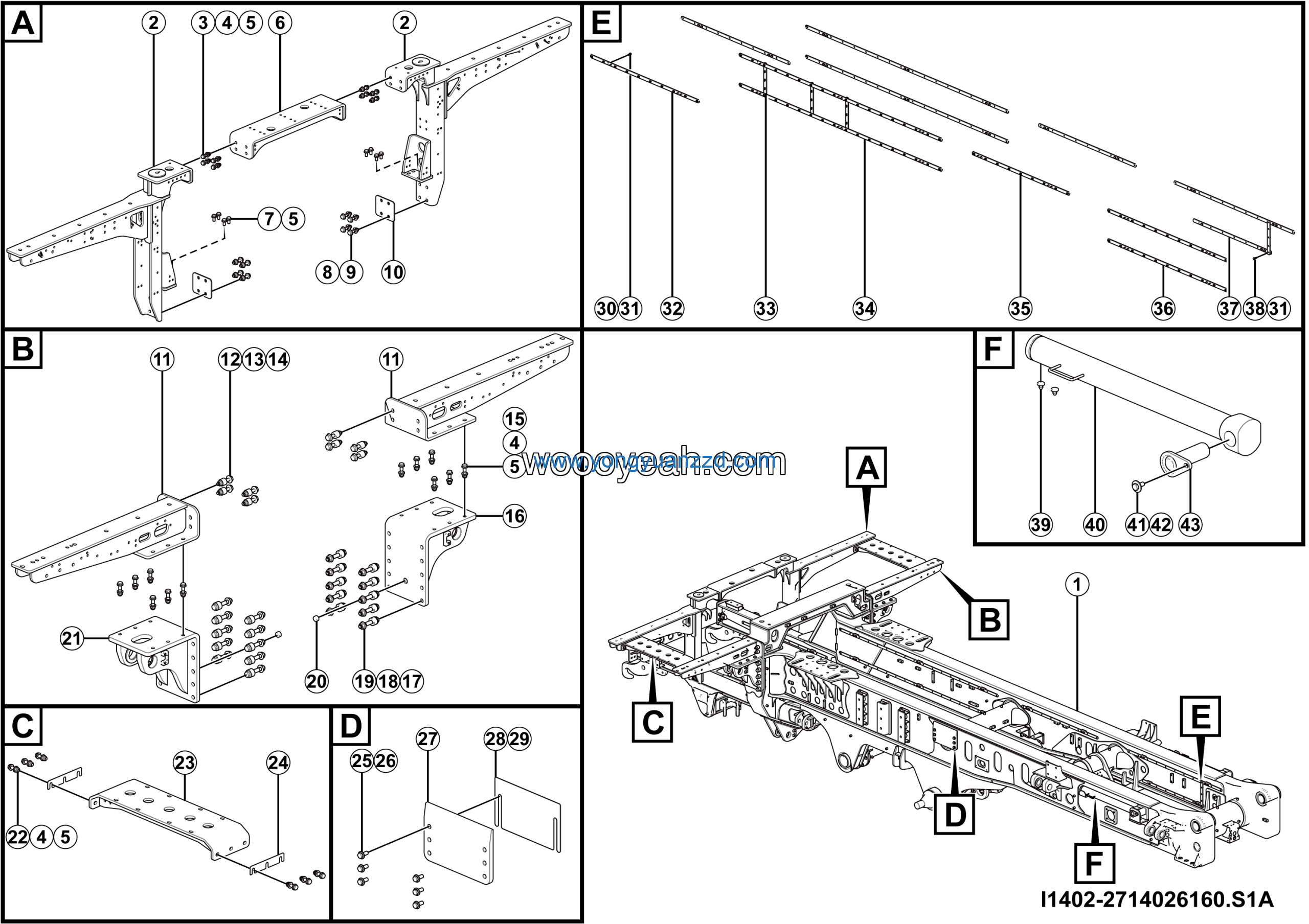

LGMG RTH100 2025 – Frame assy – I1402-2714026160.S1A
Category: 2025 > RTH100 > R1000Y3A0A235
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Spacer 180*150*6 | 27140197401 | 2 |
| 2 | Walkway rr bracket wldmt | 27140228072 | 2 |
| 3 | Bolt QC340-M16*1.5*90flZnyc-12.9-480 | 4011011760 | 8 |
| 4 | Nut GB6177.2-RLM16*1.5flZnyc-12 | 4013010558 | 8 |
| 5 | Spacer sleeve 38*10.5*30 | 27140211001 | 8 |
| 6 | Bolt GB5785-M16*1.5*70flZnyc-12.9-480 | 4011010598 | 12 |
| 7 | Rh fr hydro-pneumatic spring mount wldmt | 27140259231 | 1 |
| 8 | Bolt QC340-M20*1.5*120flZnyc-12.9-480 | 4011011759 | 20 |
| 9 | Nut GB6177.2-RLM20*1.5flZnyc-12-480 | 4013010565 | 20 |
| 10 | Spacer sleeve 44*20.5*30 | 27140216521 | 20 |
| 11 | Frame main section assy | 27140261611 | 1 |
| 12 | Cushion block | 27120113681 | 2 |
| 13 | Lh fr hydro-pneumatic spring mount wldmt | 27140259221 | 1 |
| 14 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 12 |
| 15 | Walkway connection beam wldmt | 27140228412 | 2 |
| 16 | Walkway bracket shim 260*50*1 | 27140228621 | 4 |
| 17 | Bolt GB5783-M14*35flZnyc-12.9-480 | 4011011421 | 12 |
| 18 | Washer gb1230-14flznyc-45-480 | 4015010627 | 12 |
| 19 | Body limiting plate 380*250*20 | 27140265211 | 2 |
| 20 | Shim 378*220*0.5 | 27140265241 | 2 |
| 21 | Shim 378*220*1 | 27140265251 | 4 |
| 22 | Walkway fr bracket wldmt | 27140227962 | 2 |
| 23 | Bolt GB5783-M10*25flZnyc-10.9-480 | 4011010845 | 54 |
| 24 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 58 |
| 25 | Plate strip weldment 1350 | 27140191751 | 2 |
| 26 | Plate strip wldmt 340 | 27140223781 | 4 |
| 27 | Plate strip wldmt | 27140244551 | 4 |
| 28 | Strip plate wldmt | 27140200451 | 2 |
| 29 | Plate strip weldment 1500 | 27140191791 | 3 |
| 30 | Plate strip wldmt 1000 | 27140231441 | 1 |
| 31 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 4 |
| 32 | Fastening bolt damping block | 27170140901 | 4 |
| 33 | Bolt GB5785-M16*1.5*65flZnyc-12.9-480 | 4011010698 | 8 |
| 34 | Cargo safety support | 27140184091 | 2 |
| 35 | Bolt GB5783-M12*30flZnyc-10.9-480 | 4011010866 | 2 |
| 36 | Washer GB96.1-12flZnyc-300HV-480 | 4015010286 | 2 |
| 37 | Pin welded | 27140143351 | 2 |
| 38 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 32 |
| 39 | Washer GB1230-16flZnyc-45-480 | 4015010563 | 72 |
| 40 | Mid crossbeam wldmt | 27140227762 | 1 |
| 41 | Bolt gb5783-m16*35flznyc-12.9-480 | 4011011834 | 8 |
| 42 | Bolt qc340-m18*1.5*70flznyc-12.9-480 | 4011011843 | 8 |
| 43 | Nut GB6177.2-RLM18*1.5flZnyc-12 | 4013010562 | 8 |
