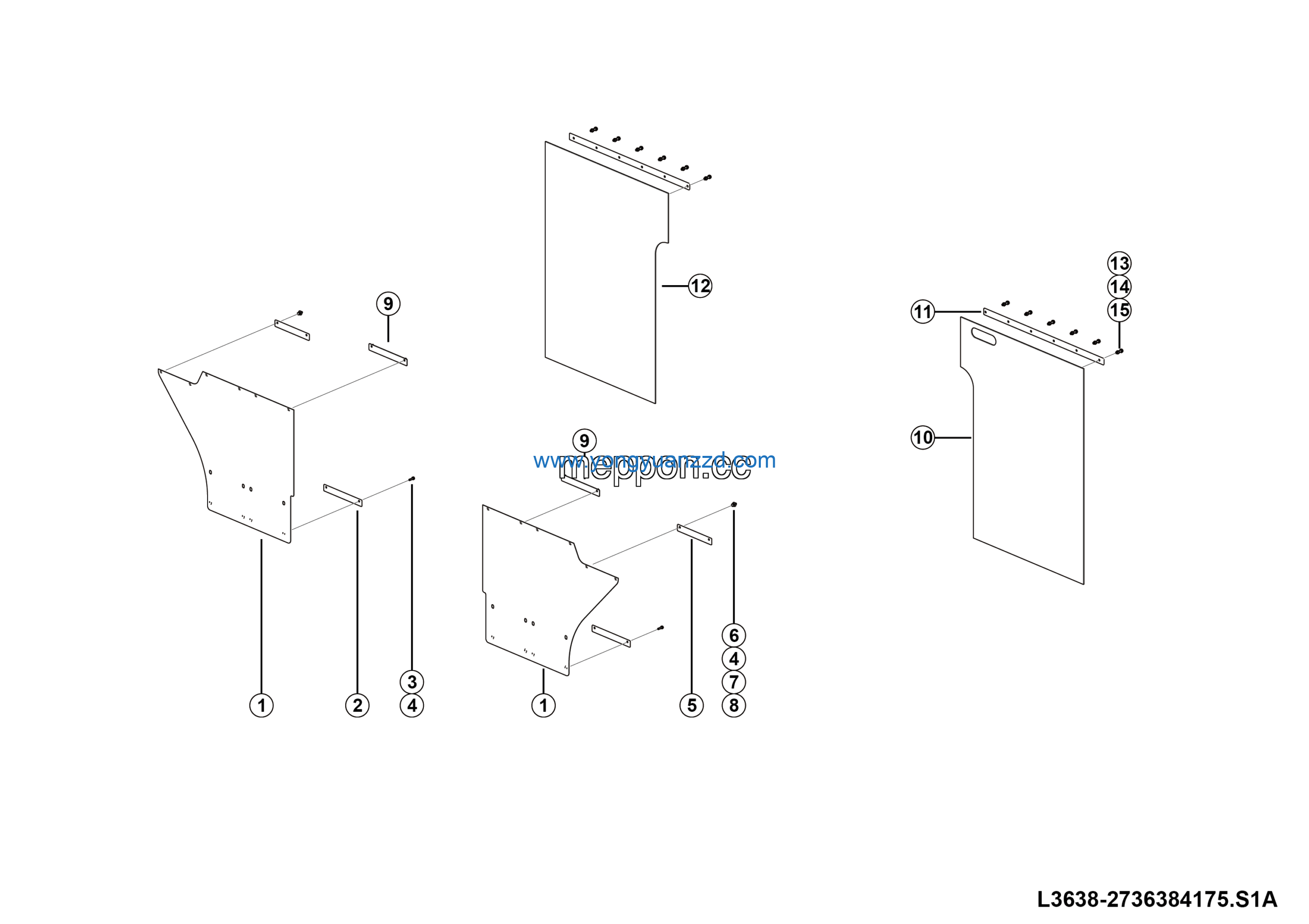

LGMG RTH100 2025 – Mudflap assy – L3638-2736384175.S1A
Category: 2025 > RTH100 > R1000Y3A0A235
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rr mudguard ii | 27360202342 | 1 |
| 2 | Mudflap hold-down plate | 27360201351 | 2 |
| 3 | Rr mudguard ii | 27360201341 | 1 |
| 4 | Bolt GB5783-M10*40flZnyc-8.8-480 | 4011010706 | 12 |
| 5 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 12 |
| 6 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 12 |
| 7 | Side front mudflap | 27363841861 | 2 |
| 8 | Plate | 27360139161 | 12 |
| 9 | Bolt GB5783-M8*30flznyc-8.8-480 | 4011010708 | 16 |
| 10 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 28 |
| 11 | Plate | 27360144111 | 2 |
| 12 | Bolt GB5783-M8*25flznyc-8.8-480 | 4011010743 | 12 |
| 13 | Washer GB96.1-8flZnyc-300HV-480 | 4015010289 | 12 |
| 14 | Nut GB6185.1-M8flZnyc-8-480 | 4013010314 | 12 |
