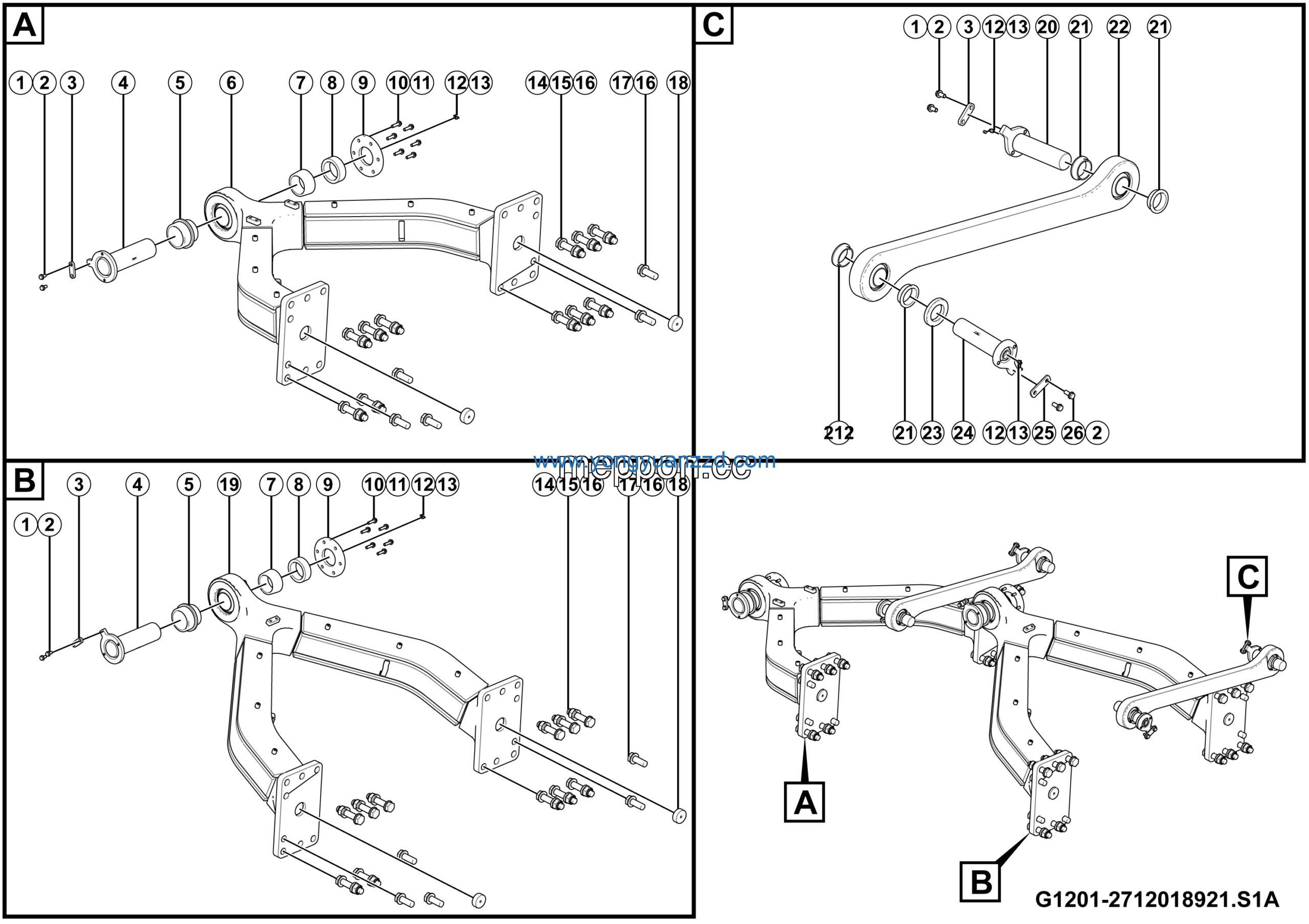

LGMG RTH100 2025 – Rr guide mechanism assy – G1201-2712018921.S1A
Category: 2025 > RTH100 > R1000Y3A0A230
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M12*45flZnyc-12.9-480 | 4011010923 | 12 |
| 2 | Washer GB1230-12flZnyc-45-480 | 4015010377 | 12 |
| 3 | Grease nipple JB7940.1-M10*1 | 4030000065 | 6 |
| 4 | Butter nozzle cap JXHF-00006 | 4120000015 | 6 |
| 5 | Bolt GB5785-M30*3*140fZnyc-12.9-480 | 4011011699 | 22 |
| 6 | Six angle with the shoulder self-locking nut | 27120103842 | 22 |
| 7 | Washer GB1230-30flZnyc-45-480 | 4015010576 | 32 |
| 8 | Bolt GB5786-M30*3*80flZnyc-12.9-480 | 4011011448 | 10 |
| 9 | Pin 70h7x25 | 27120176361 | 4 |
| 10 | Rr axle a-frame assy | 27120185072 | 1 |
| 11 | Bolt gb5783-m12*25flznyc-12.9-480 | 4011011867 | 8 |
| 12 | Pin wldmt 60*213 | 27120183253 | 2 |
| 13 | Pin | 27120169761 | 8 |
| 14 | Tie rod assembiy | 27120169742 | 2 |
| 15 | Pin plate | 27120171041 | 2 |
| 16 | Pin | 27120172632 | 2 |
| 17 | Pin pressure plate 90*32*6 | 27140195571 | 2 |
| 18 | Bolt GB5783-M12*30flZnyc-12.9-480 | 4011010610 | 4 |
| 19 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 12 |
| 20 | Pin retaining plate 80*26*10 | 27120183171 | 4 |
| 21 | Pin wldmt 90*304 | 27120183202 | 2 |
| 22 | Spacer sleeve 90×52.5 | 27120189221 | 2 |
| 23 | Mid axle a-frame assy | 27120185062 | 1 |
| 24 | Spacer | 27120171131 | 2 |
| 25 | Spacer sleeve 90*40 | 27120178361 | 2 |
| 26 | Plate | 27120171112 | 2 |
