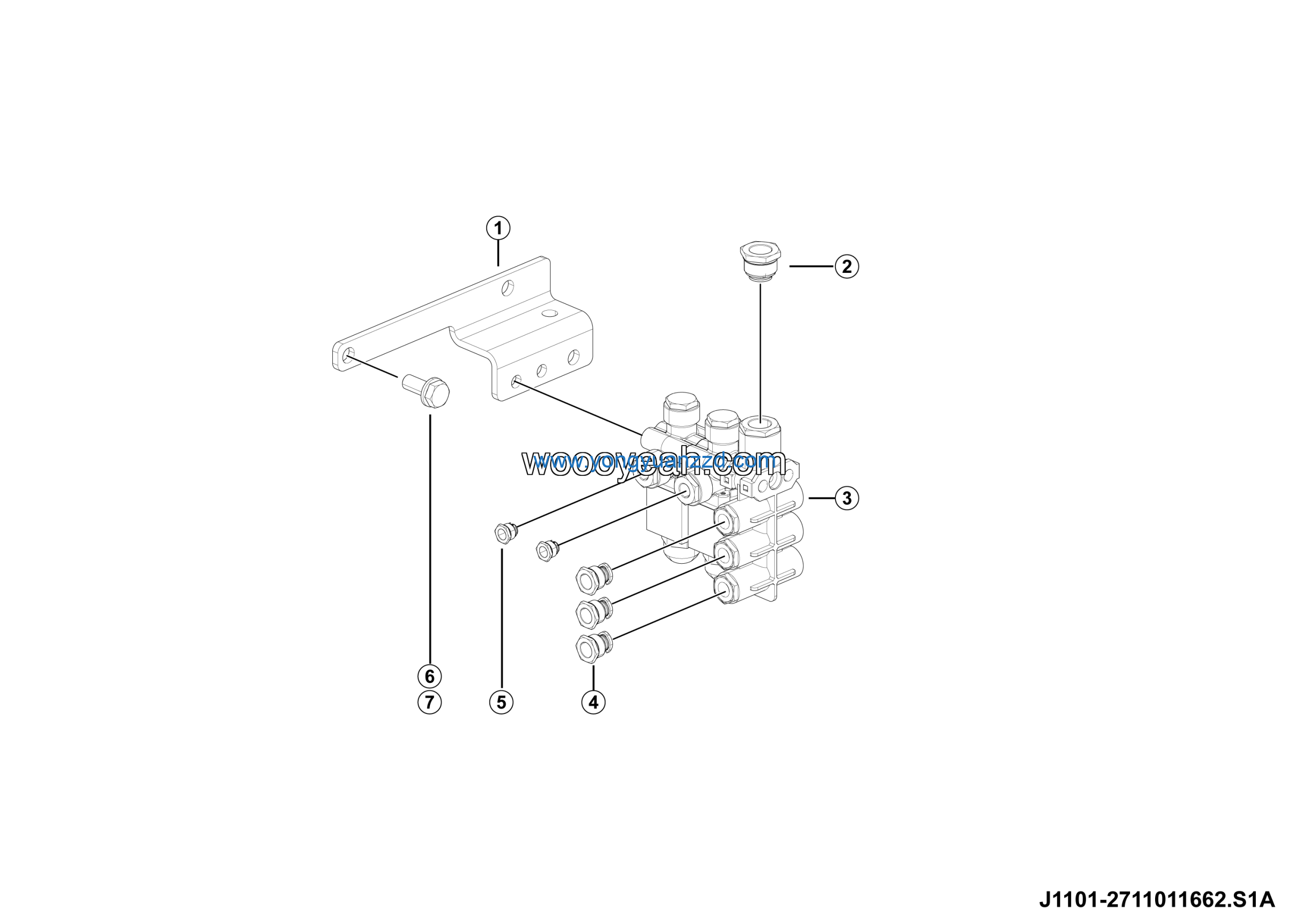

LGMG RTH100 2025 – Two solenoid valves assy – J1101-2711011662.S1A
Category: 2025 > RTH100 > R1000Y3A0A235
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Solenoid valve bracket | 27110115351 | 1 |
| 2 | Nut seat | 27110107601 | 1 |
| 3 | Two solenoid valve assy | 4120001139 | 1 |
| 4 | Nut seat | 27110107611 | 3 |
| 5 | Seat | 27100121061 | 2 |
| 6 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 2 |
| 7 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
