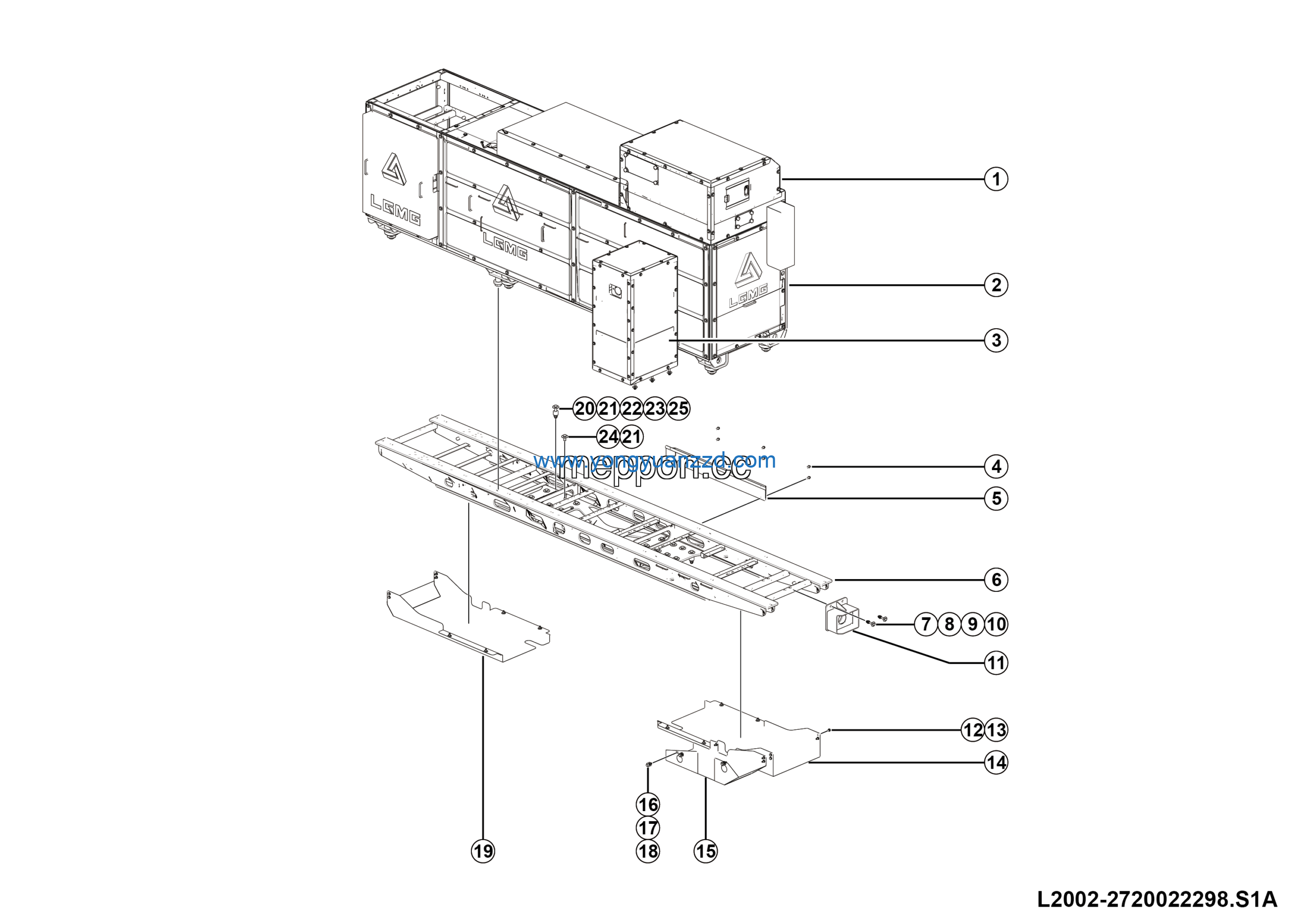

LGMG RTH136 2025 – Elec holder assy – L2002-2720022298.S1A
Category: 2025 > RTH136 > R1362Y3A0A017
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M12flZnyc-10-480 | 4013010379 | 2 |
| 2 | Charging socket mounting plate wldmt | 27200216781 | 1 |
| 3 | Bolt GB5783-M10*20flZnyc-8.8-480 | 4011010748 | 19 |
| 4 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 11 |
| 5 | Bracket | 27200223661 | 1 |
| 6 | Harness guard wldmt | 27200223701 | 1 |
| 7 | Bolt GB5782-M10*45flZnyc-8.8-480 | 4011011053 | 3 |
| 8 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 14 |
| 9 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 3 |
| 10 | Rh plate wldmt | 27200223671 | 1 |
| 11 | Bdu holder assy | 27200223411 | 1 |
| 12 | Bolt GB5782-M16*95flZnyc-12.9-480 | 4011010580 | 12 |
| 13 | Washer GB96.1-16flZnyc-300HV-480 | 4015010334 | 24 |
| 14 | Spacer sleeve 38*10.5*30 | 27140211001 | 12 |
| 15 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 12 |
| 16 | Bolt GB5783-M16*35flZnyc-10.9-480 | 4011010864 | 12 |
| 17 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 12 |
| 18 | Battery box assy | 27200223041 | 1 |
| 19 | Low voltage battery holder assy | 27200215801 | 1 |
| 20 | Bolt GB16674.1-M10*20flZnyc-8.8-480 | 4011010993 | 6 |
| 21 | Low voltage cable rr cover plate wldmt | 27200186671 | 1 |
| 22 | Battery tray wldmt | 27200222991 | 1 |
| 23 | Bolt GB5782-M12*75flZnyc-10.9-480 | 4011011174 | 2 |
| 24 | Washer GB96.1-12flZnyc-300HV-480 | 4015010286 | 2 |
| 25 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 2 |
