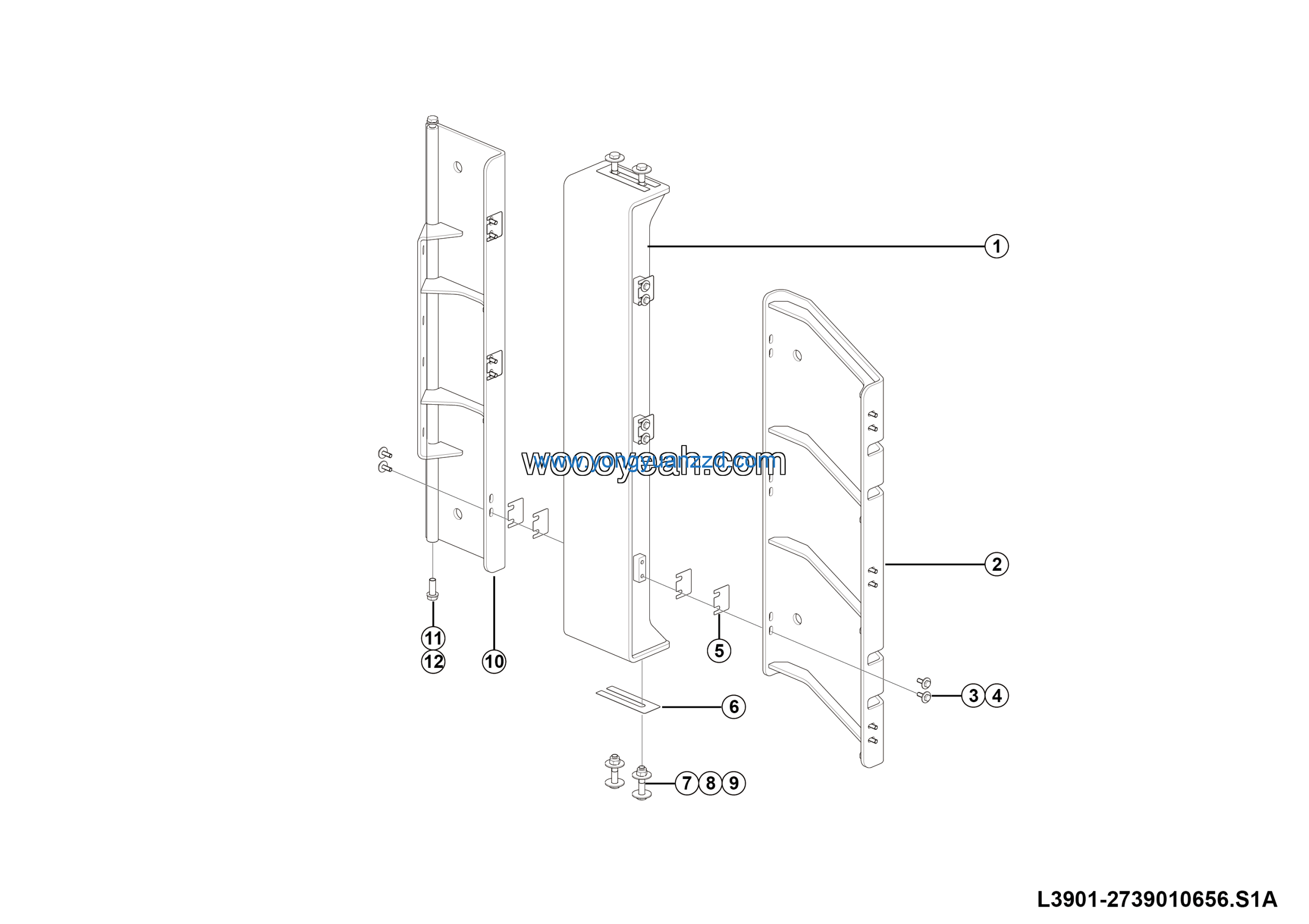

LGMG RTH136 2025 – Fan shroud assy – L3901-2739010656.S1A
Category: 2025 > RTH136 > R1362Y3A0A017
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Fan shroud wldmt | 27390106292 | 1 |
| 2 | Bolt GB5786-M16*1.5*45flZnyc-12.9-480 | 4011010535 | 2 |
| 3 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 2 |
| 4 | Front protection beam wldmt | 27390106262 | 1 |
| 5 | Rear protection wldmt | 27390106571 | 1 |
| 6 | Bolt GB5783-M10*30flZnyc-10.9-480 | 4011010879 | 18 |
| 7 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 18 |
| 8 | Shim 70*55*1 | 27390106601 | 12 |
| 9 | Shim 140*60*1 | 27390106341 | 2 |
| 10 | Bolt GB5785-M16*1.5*80flZnyc-12.9-480 | 4011010592 | 4 |
| 11 | Washer GB96.1-16flZnyc-300HV-480 | 4015010334 | 8 |
| 12 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 4 |
