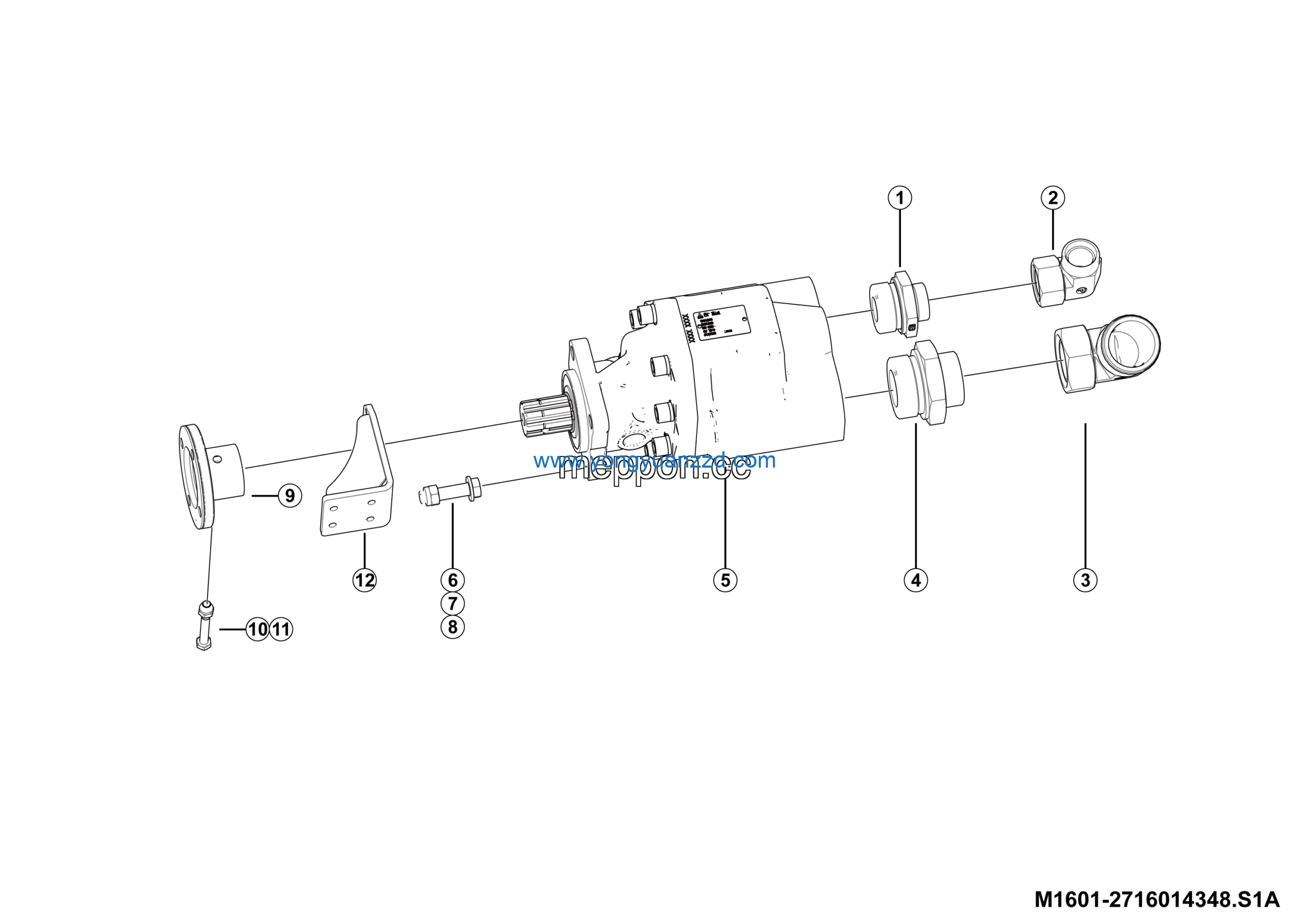

LGMG RTH136 2025 – Hoist pump assy – M1601-2716014348.S1A
Category: 2025 > RTH136 > R1000Y3A0A116
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M8*65flZnyc-10.9-480 | 4011011671 | 1 |
| 2 | Nut GB6185.1-M8flZnyc-10-480 | 4013010378 | 1 |
| 3 | Hoist pump bracket wldmt | 27160135512 | 1 |
| 4 | Joint 1CB-36-24WD | 4120715079 | 1 |
| 5 | JOINT LGB143-03625 | 4041001211 | 1 |
| 6 | Welded joint m52-φ56 | 27160141662 | 1 |
| 7 | Joint 1CB-52-32WD | 4120715080 | 1 |
| 8 | Gear pump HGPS3Q120Q3C2RJ2 | 4120714204 | 1 |
| 9 | Bolt GB5783-M12*50flZnyc-10.9-480 | 4011010861 | 4 |
| 10 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 4 |
| 11 | Nut GB6185.1-M12flZnyc-10-480 | 4013010379 | 4 |
| 12 | Pump coupling | 4120001055 | 1 |
